Specifications
| No. | Model | Product name | Dimension |
| 1 | JML-TL-0130XX | 30W LED Triproof light |
600x90x74mm |
| 2 | JML-TL-0145XX | 40W LED Triproof light |
900x90x74mm |
| 3 | JML-TL-0160XX | 60W LED Triproof light |
1200x90x74mm |
| 4 | JML-TL-0180XX | 80W LED Triproof light |
1500x90x74mm |
Model: JML-TL-0180XX
XX=11:WW(3000K)
XX=22:NW(4000K)
XX=33:CW(6000K)
Input voltage |
AC 85-265V |
power |
40W |
LED type |
SMD 2835 |
CCT |
3000k/4000k/6000k |
Light efficiency |
>95 lm/w |
Beam angle |
120 |
Protection grade |
IP66 |
dimension |
900x90x74mm |
Dimmable |
No |
Frequency |
50- 60Hz |
Power factor |
>0.9 |
THD |
<15 |
Ambient temperature |
-20~40℃ |
life time |
50000 h |
Features
1. Tri-proof led fixture for IP65 waterproof, dust, corrosion and pressure proof;
2. 95lm/w plus high efficiency;
3. Linkable installation;
4. Excellent heat dissipation depend on Aluminum heat sink;
5. Widely use for ambient lighting application;
6. Maximum efficacy and minimum glare;
7. High-tech optical design;
8. Stably isolated driver;
9. No UV, no lead and no mercury;
10. With 3 years warranty.
Installation
Before installation, some kindly reminders for you.
u Before installing light fixtures, please read this instruction manual carefully.
u The lighting fixtures should be installed , connected and tested by a certified installer based on the local regulations.
u Lamps should always be installed or replaced with care.
u Please check the local voltage in accordance with the product requirements before use the fixture.
u When a lamp is to be cleaned, make the power off and let it cool down completely. Clean the lamp with soft cloth and a standard PH neutral detergent. Stainless steel finishing should be maintained regularly.
u Misuse of or changes to the fixture shall nullify the guaranty.
u Don’t cover the fixtures with flammable materials.
u Exclusively replaced by the manufacturer of his service agent or the similar qualified person in order to avoid hazard.
Following pictures show how to install this tri-proof light.
Application
In commercial lighting field, it can be used at supermarket, exhibition hall, parking lot, gas station etc.
In public lighting field, it can be applied to tunnel, MTR station, bus station, airport etc.
In industrial lighting field, it can be serviced in factory, warehouse, base room, etc.
…….
Above is led tri proof light apply in parking lots.
Above picture show the tri proof apply in subway station, warehouse and factory plant etc.
Dimension:
lamp size: 1500x90x74mm
Carton/size: 1550x170x210mm
N.W./PC: 3.8 kg
G.W./Ctn: 16 kg
4pcs/Ctn
Package is our standards, and also can according to customers’ requirements.
Date of delivery
5 working days for samples, 25 days for batch order.
Brief introduction of company
The history of JML lighting
Nowadays, there are lots of companies in China can offer you products. Many of them are trading company. So how can they assure the quality for you? But JML lighting is professional manufacturer of LED light. Owning a research & design team which including professional engineers. The production team arranges goods under producing and control the quality strictly. Outstanding marketing & service team develops market in different continents. Offering clients considerate and cordial services and leave them deep impression. We have many years experiences of export products to overseas markets.
Production capacity and equipment show our capacity and quality control

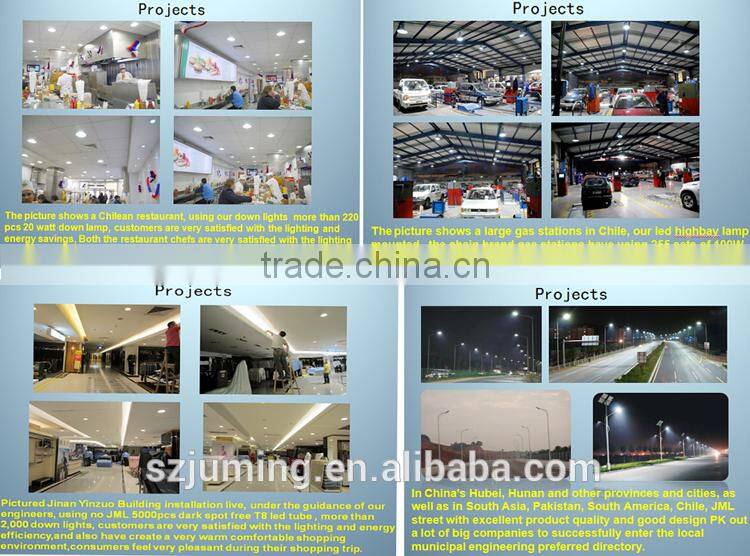

Time flying,JML lighting company grow up steadily and expand business. Customers are come from Europe, America and Middle East etc. the scale of factory and the quantity of workers are kept ascending. Here are show some projects for your reference.
JML lighting is the very supplier that you are looking for. Choosing JML lighting means expand your business! For more informations, don't hesitate to contact with us.
