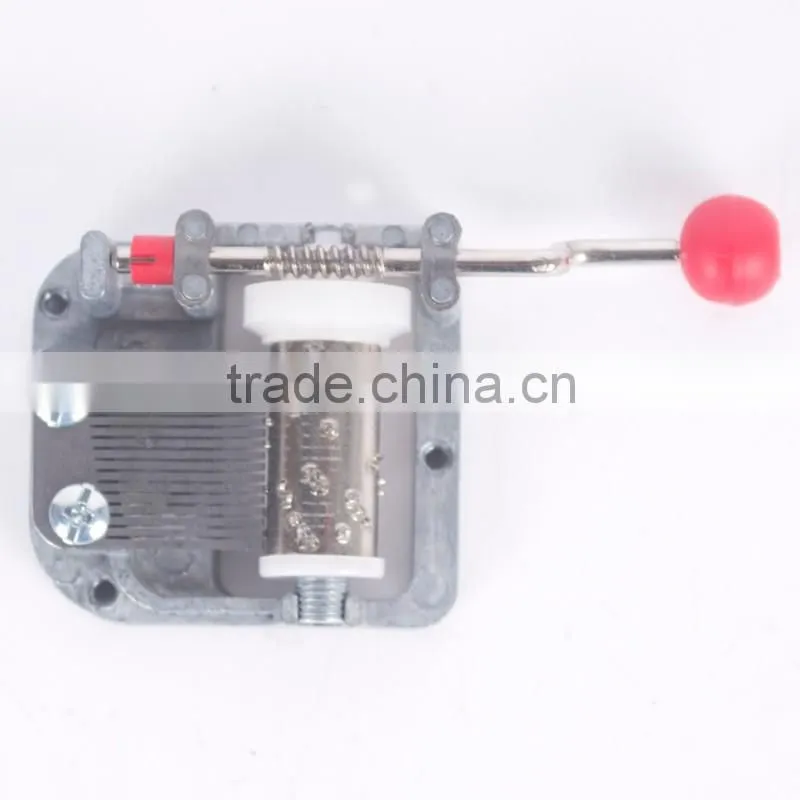

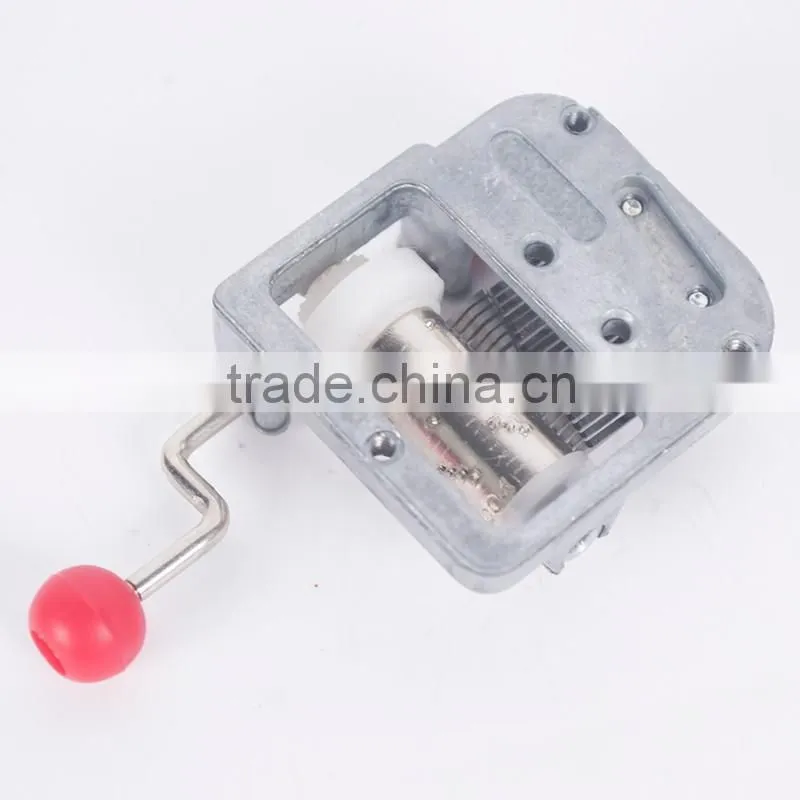

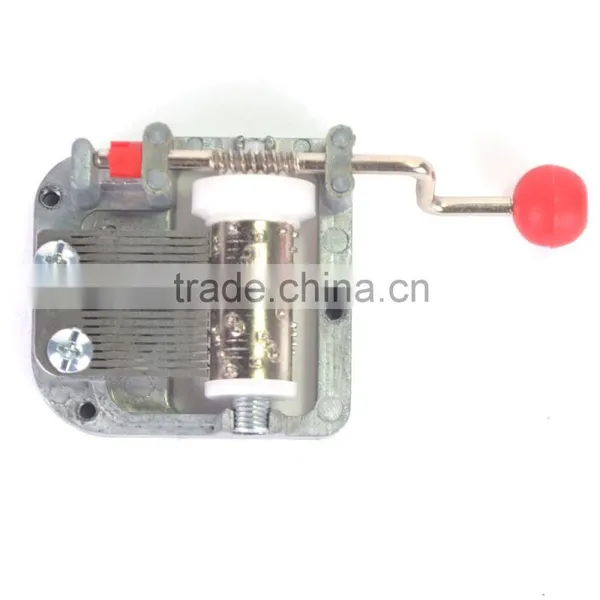

18 Note Mini Hand Crank Music Box Movement
(Item No:10188033).
-Mini size hand crank musical movement, suitable for tiny music boxes,cute musical gifts, lovely musical toys. The crank handle style will be with great fun for child , As you turn the handle the little pinned drum knock musical comb and the music coming.
- Main Stucture and Material
Metallic Structure Device, Alloy, Steel.
- MUSIC FEATURE
1) Mini 18 note pattern
2) Top sund quality, Unique process on the core part – Comb
3) Rich tunes for selection, Christmas songs such as SILENT NIGHT, Baby songs such as BRHAMS LULLABY, Child songs such as IT'S A SMALL WORLD and Popular songs HAPPY BIRTHDAY…..
4) Also accept to custom made your own tunes
- PLAY POWER
Manual operated by crank handle

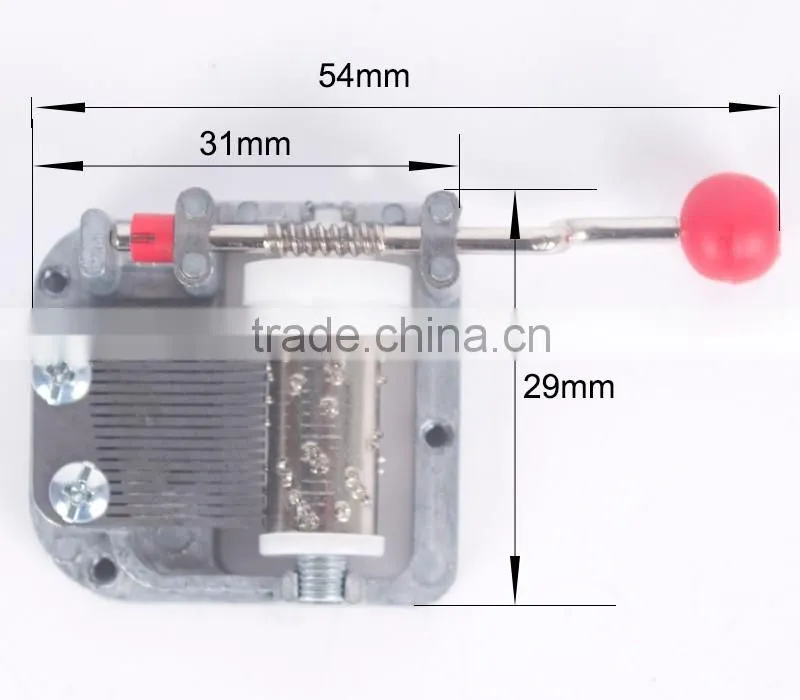

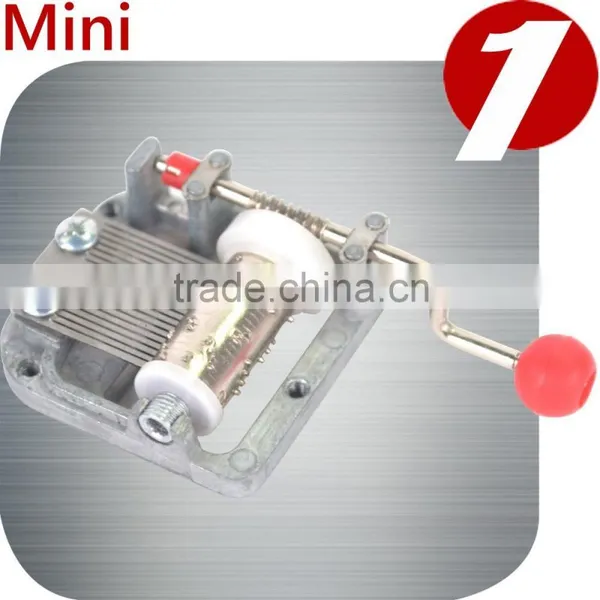

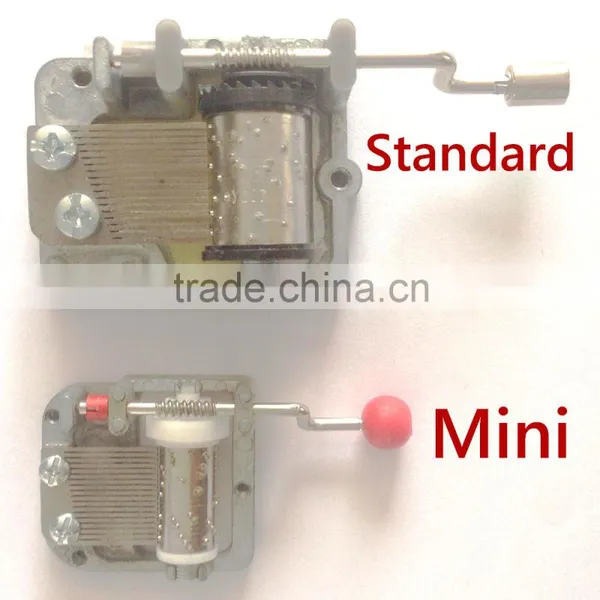

- Mini SIZE
The Main Body Part:31x29x13 mm,
54(including the handle)x29x13 mm
- APPLICATIONS
Suitable to various mechanical hand crank music boxes

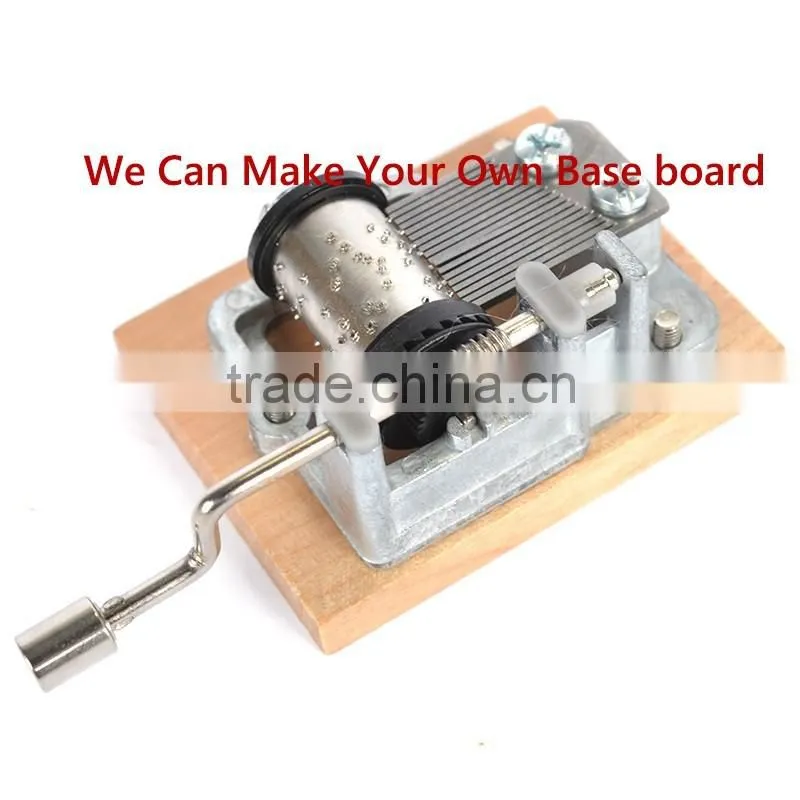

baseboard
The weight of baseboard(More heavy base ,better melody quality): 20.90 gram
Teeth of Drum
Teeth heigh(every teeth is polished): 0.50 mm
The distance between comb and drum
0.20 mm
Comb Frequency
50Hz~3000Hz
1)General Description(reference only,performance indexes are affected by music)
*Power Ways:Hand-Operated
*Playing speed/First Drum Rev: 8-16 Seconds
*Speed Difference Between Specified Drum Turns Available:<=2 Seconds
*4/4 Tune Time Available(Bars):8
*3/4 Tune Time Available(Bars):8~16
*Service Life(Full Wind-up Times): >=5000 times
2)Quality Safe
* TOP Sound quality musical movement inside.
The Core part - Music Comb is made of special steel and producing by our unique technology
* Stable quality and longer service life
ISO9001 Quality Management Systems and many excellent skilled workers make sure the stable quality and longer service life
*Pass Europe EN71 Safe standard,RoHs,2005/84/EC,REACH And CPSIA etc.enviromental detection
Detail Of Packing
Packaging: 50 pcs in Polyfoam base
Carton qty: 200 pcs
Carton size: 44x33x24 cm,0.035 CBM
G.W./N.W.: 13.5/12.5 kgs
Shipment: By Sea,By Air or By Express,LCL or FCL are all available.
TRANSPORTATION
1)Express(Door to Door, DHL, FEDEX, UPS, TNT) For Mini Quantity
2)Air , Pick up goods yourself.
It will be a good choice if the Airport nearby and the order quantity is more than 3000 pcs.
3)Sea way For Big Quantity. Pick up goods yourself.
It will be a good choice if the Seaport nearby or you have your own forwarder. And if the order quantity more than 5000 pcs, the delivery cost will be a good price/unit for standard 18 note movement.
4)Strong Production capacity make sure timely delivery.
1)Send an inquiry to us, communicate and place order by email.
2) Make sure to specify the following details when ordering
*What is the Model number?
*What is the tunes?
*What is the type and length of the keys or other attachments if you need?
*Other personalized requirement?
*MOQ, usually 1000 pcs per order and can be 500 pcs per tune
3) Small personalized order.
We do it, but cost will be raised.
4) Large order
Better price for More large order quantity,
1)Send us the music file(staff, mp3 and midi files, but Midi file is the best format), 9~15 seconds music for this mini 18 note model .
2)Start to developing after confirming the music files
3)Send you a new midi file for your confirmation within a week(We may make some change to the original for meeting the characteristic of mechanism)
4)If the new Midi confirmed, finish developing. If not, discuss and continue to adjust
5)If ok finally, then can place order, and will make the mold and products.
6)Cost, about 350usd included developing and mold.
1)Most professional and largest supplier in the field of musical movement in the world.
2)Beautiful sound: We use special alloy for main parts, have proprietary technique on the core part Comb, and the mechanism smooth running on the correct tempo
3)More than 14 years improvement, Very stable quality and long service life
4)Low defect, ISO9001 Quality Management Systems,may offer extra if large order.
Pass Europe EN71 ,RoHs,2005/84/EC, REACH and US Standard
5)Existing more than 3000 tunes for selection ,also be customized.
6)Strong production capacity, Deliver on time.
THE DIFFERENCE AND STENGTH
1)FUll METAL HANDLE MUSICAL MOVEMENT, MORE SAFETY FOR CHILD
2)FULL METAL KNOB MOVEMENT,STRONGER THAN COMMON HAND CRANK MUSICAL MECHANISM
