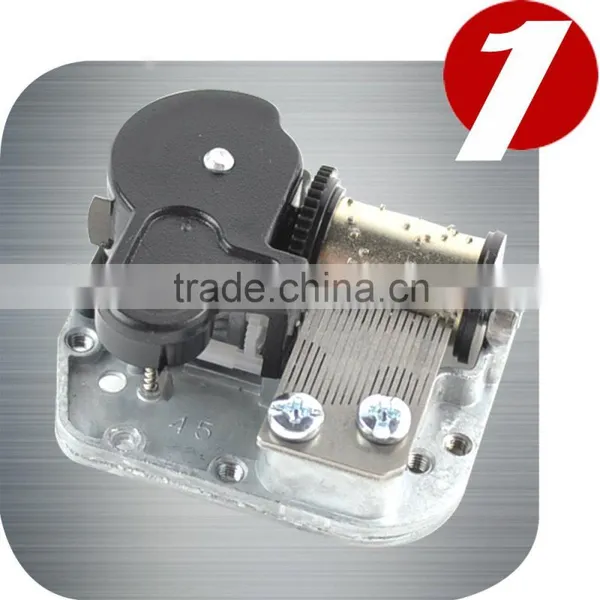

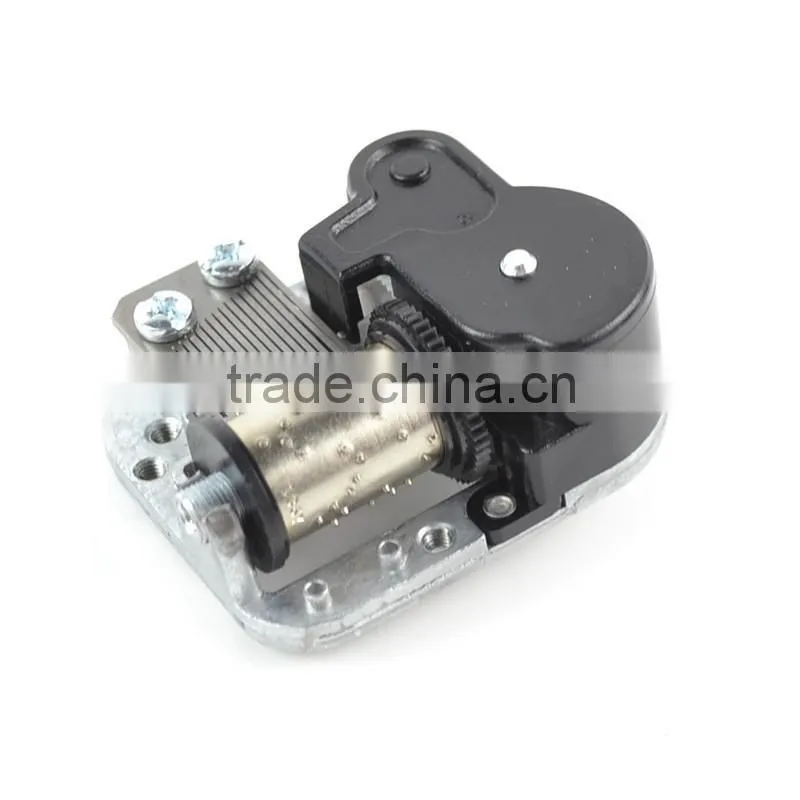

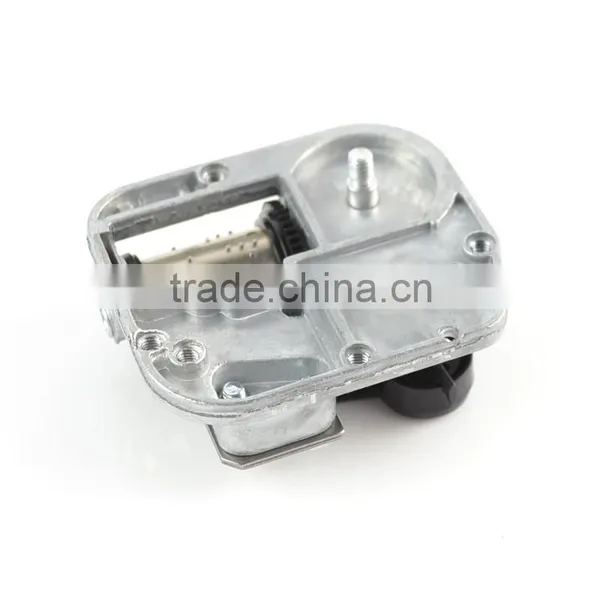

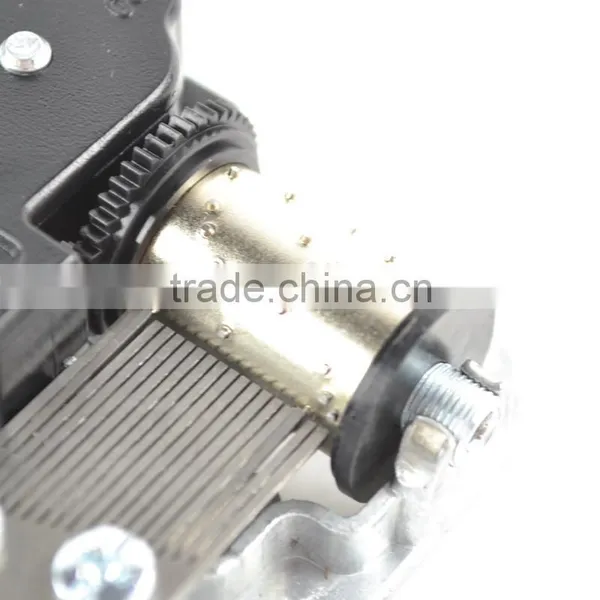

Most Common Wind Up Music Box Mechanis
(Item No:10188001)
Standard 18 note model, wind up by key, can be as the shared platform for fixing many attachments,such as the stopper,the rotating shaft, rotating magets,the pull string device,the LED lights,the seesawing device and others, so many optional features may be achieved for many customer's various finished products.
Brief Description
Material: Zinc-alloy,steel,plastic

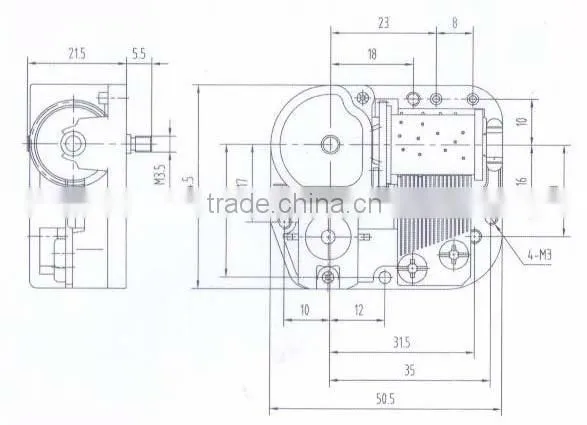

Unit size: 50x42x16 mm
Type: 18-note,Standard
Operation Power: Clockwork
Basic Performance(Reference only,performance indexes are affected by music)
Playing speed: 12-20 second
Speed Difference Between Specified Drum Turns Available: <=2 second
Service Life(Full Wind-up Times): 2~3 seconds
Winding Torque: 0.4 N.m
Service Life: >=500 times
AS A SHARED PLATFORM EXTENSION MODELS
The protective case added for Pull String musical dolls

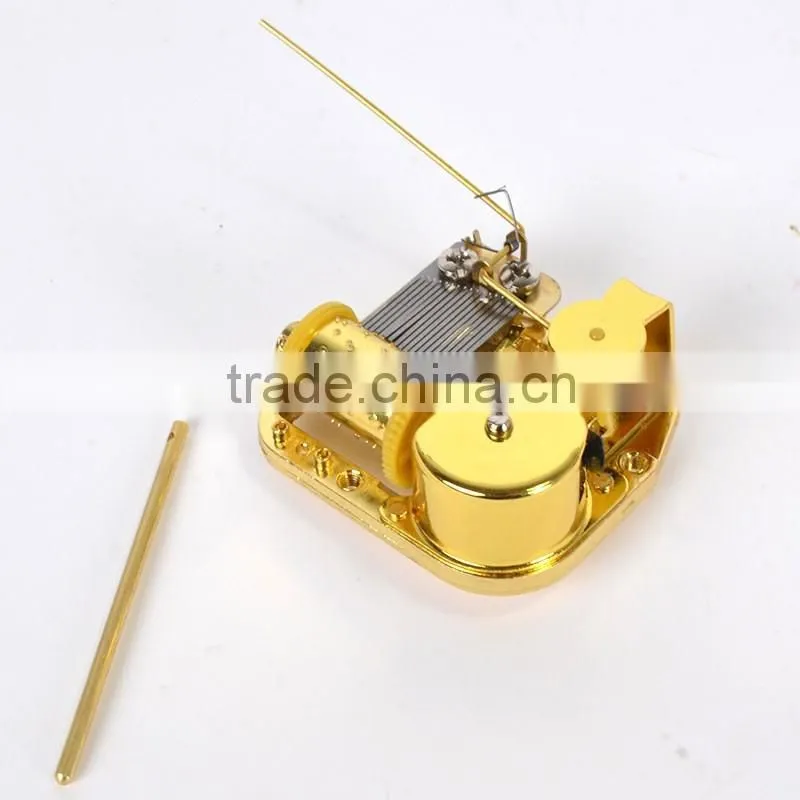

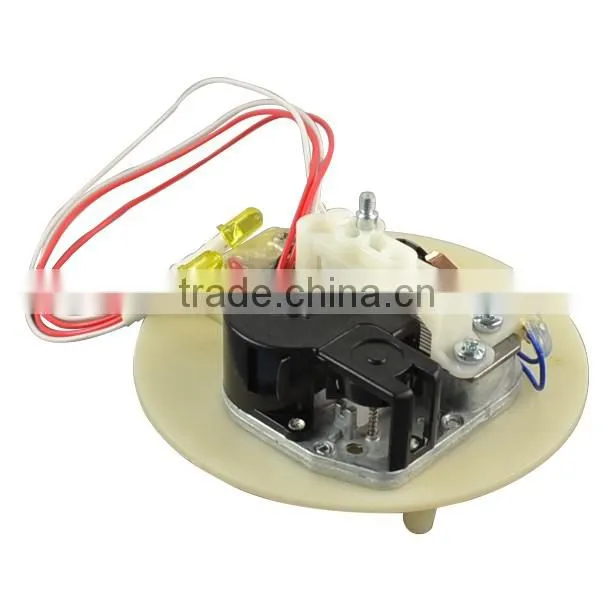

On Off Wire Rod Stopper Wind Up Wooden Music Movement&Led Light Music Movement
Attachment of baby mobile added
Packing

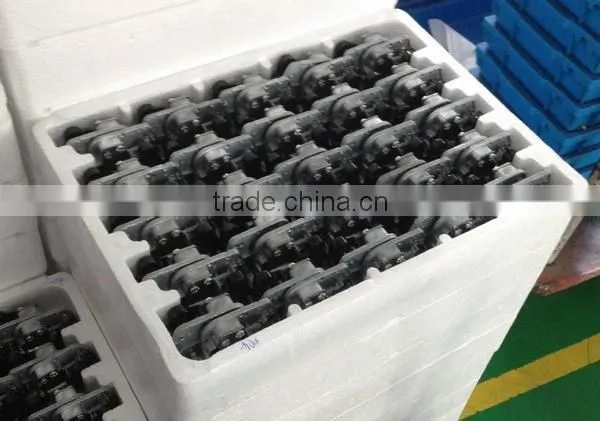

Packaging: 50 pcs in a Polyfoam base
Carton qty: 200 pcs
Carton size: 35x26x26 cm,0.024 CBM
G.W./N.W.: 12/11 kgs
TRANSPORTATION
1)Express(Door to Door, DHL, FEDEX, UPS, TNT) For Mini Quantity
2)Air , Pick up goods yourself.
It will be a good choice if the Airport nearby and the order quantity is more than 2000 pcs.
3)Sea way For Big Quantity. Pick up goods yourself.
It will be a good choice if the Seaport nearby or you have your own forwarder. And if the order quantity more than 5000 pcs, the delivery cost will be a good price/unit for standard 18 note movement.
4)Strong Production capacity make sure timely delivery.
1)Send us the music file(staff or mp3 , midi file is the best formate), 9~15 seconds music for this 18 note model
2)Cofirming and developing according to your file
3)Send you a new midi file for your confirmation within a week(We may make some change as the characteristc of mecanism)
4)If confirmed,finish develoing. If not,discuss and continue to adjust
5)If ok finally,place order,and finish making a mould for the new tune with 3 weeks.
6)Cost,about 350usd included developing melody and mould.

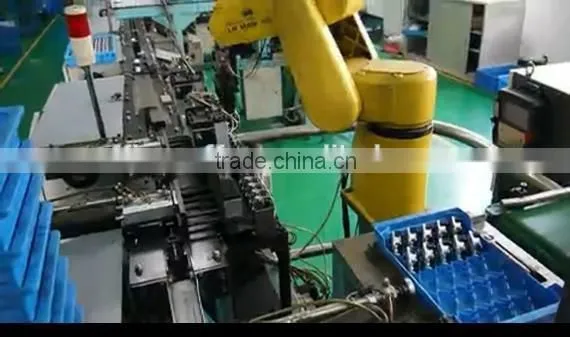

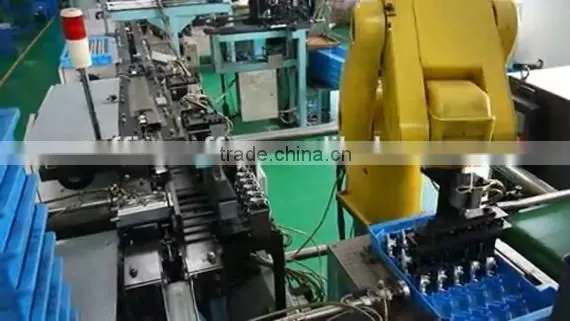

Robot Asssembly Line For Standard 18 Note Musical Movement
1)Most professional and largest supplier in the field of musical movement in the world.
2)Beautiful sound: We use special alloy for main parts, have proprietary technique on the core part Comb,and the mechanism smooth running on the correct tempo
3)More than 14 years improvement,Very stable quality and long service life
4)Low defect,may offer extra if large order
5)Existing more than 3000 tunes for selection ,also be customized.
6)Deliver on time.
7)Pass related environment protection satandard:. RoHS, REACH, 2005/84/EC in Europe; Less than Detection Limit for contained lead in USA.
WIND UP MUSIC BOX MOVEMENTS LIST
> 18 Note Standard wind up music box movements
> 18 Note Metal wind up music box movements,golden or silvery
> 18 Note mini wind up music box movements
> 17 Note super mini wind up music watch movements
> 12 Note super mini wind up musical movement
> 18 note Deluxe music box movements
> 30 Note luxury wind up music box movements
> 36 Note Deluxe large wind up music box movements
> 50 Note Deluxe large wind up music box movements
> 78 Note Deluxe large wind up music box movements
> 156 Note Deluxe large wind up music box movements
