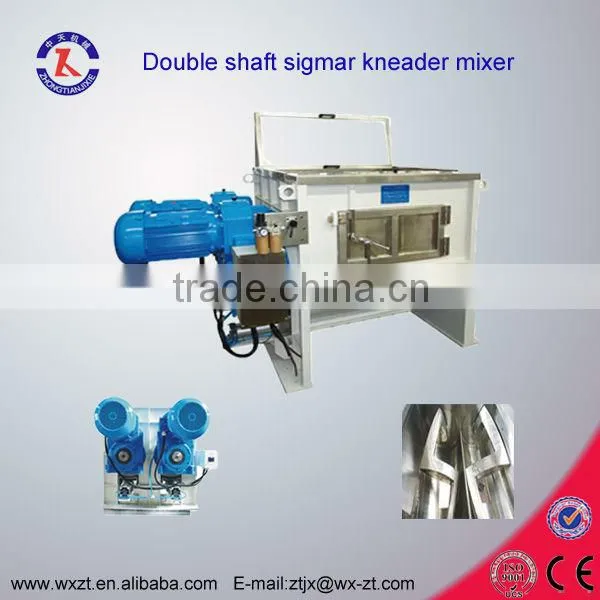

Help CenterNHJ-3000 Vacuum Kneading Machines
Related Products
-
Vacuum Kneaders(CE Certifided and ISO9001-2000 System)NegotiableMOQ: 1 Set -
SDJ-I-2000 Transparent Soap&toilet Soap RefinerNegotiableMOQ: 1 Set
-
SDJ-1000 Type Toilet Soap Simplex RefinersNegotiableMOQ: 1 Set
-
SDJ-1000 Type Toilet Soap Simplex Refining Machines(ISO9001-2000)NegotiableMOQ: 1 Set
-
2000kg/h Duplex Vacuum Plodder(CE Certified)NegotiableMOQ: 1 Set
Specifications
mixing bowl and agitating valve are all made of stainless steel, the jacket of mixing bowl can be designed into electric heatingThis mixer will be in conformity with CE, and its controlling system meets CS standard.
Rated capacity: 350 to 450 kg/batch (soap noodles)
Dosing vessel volume is 400 kg soap noodles.
Two Z-shaped sigma agitators inside the mixing trough the gyration diameter of the agitator is 600 mm, inclination angle 60º.
Motor: 18.5+18.5 kW
Speed: Agitator A 22 r/min
Agitator B 36 r/min
Pressure of compressed air: 0.4 MPa
Consumption of compressed air: 0.5 m3/min
All metallic parts in contact with soap are in stainless steel 304.
The property class of all threaded fasteners will be over 8.8, and with locking devices
The threaded fasteners made from stainless steel the strength of material will not lower than that of A270.
The speed reducers for agitators are supplied by Flender, Germany.
Two discharge gates are with their own air cylinder to open/close the gate. The cylinder is made in Wuxi, China.
All bearings will be the best brands.
The load cells of pressure type and the field weighing controller are supplied by Toledo, Switzerland.
Operation panel is supplied by Rittal, Germany.
PLC by Omron, Japan.
