Help CenterKS-76/122III A4 Forming Machine
Related Products
Specifications

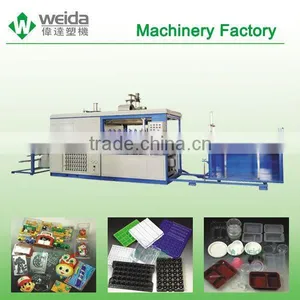

KS-76/122III A4 Forming Machine1.Suit PVC,ABS,PPPS,ect.
2.Produce plastic package
3.Easy operation
4.Stable performance
KS-76/122III A4 Forming Machine is suitable for PVC, PE, PET, HIPS, PP and other plastic sheet plastic into a variety of different shapes containers.
The machine is combined with pneumatic, mechanical and drive to achieve automatic continuous working of feeding sheet, forming, demoulding, ection cutting and stacking. Using PLC control system makes the machine working more reliable.
Dual-chain feeding device with photocell control is used to achieve stable and reliable feeding. The width and length of feeding can be stepless adjusted accurately, suitable for the arrangement of different mould, with high use-factor of the sheet.
The function of two-step vacuum, it also has the functions of secondary upper die, demouding by vibration, and delaying vacuum, forming is sultable for making the products of large depth. The machine can be forming by negative mould or positive mould, convenient and fast for replacing the mould.
Equipped heating system with upper and lower heaters of hollow far – infrared heating pieces for two – section heating. Divisional temperature control system makes heating ptocss economical, equal and easy adjusting.
Wit wind cooling and water fog system, so as to work cortinuously without water cooling inside mould, especially suitable for production by non-metal mould.
Equipped with dual – shaft materialloosing device, section-cutting and stacking unit, to improve production efficiency
| Size and type | ||
| Items | Unit | KS-76/122IIIA4 |
| Metreial used | PVC,PET,PP,HIPS,ABS,PE | |
| Sheets thickness | (mm) | 0.2.1.0 |
| Forming length | (mm) | 760-1220 |
| Forming weight | (mm) | 480-720 |
| Forming height | (mm) | MAX220 |
| Forming speed | Times/h | 220~450 |
| AIR PRESSURE | 2.0m3/min (pressure)6-8kg | |
| Power consumption | kw | 35(single furance) 50(double furnaces) |
| Machine weight | kg | 3800 |
| Machine size | mm | L7300×W1700×H2900 |
Guangdong Weida Plastic&Machinery Industrial Co.,Ltd. Is an enterprise specialized in plastic packing machinery individuation designing and production manufacturing, which owns a top career platform and team-ship in Plastic Vacuum Forming machine industry. The company started in 1994, the production base is location in Shantou, Guangdong, covering 18000 square meters, there are nearly 20 professional experience.
Moreover our company have cooperate with over 1000 clients, in which more than 200 cilents locates in the areas such as Southeast Asia, the Middle East, Middle and east Europe, South and North American, Africa and so on. To supply customers with individual equipment solving project.
The company strict with the quality and the pursuit of excellent quality of products, also work closely with each big brand suppliers, To provide customers with perfect all kinds of production line.Main cooperation brand as follows:Bosch,Elstein,Burkert,Siemens of Germany, Schneider of French, SMC,Mitsubishi,Panasonic,Omron,Fuji,Yuken of Janpan.
We offer the products and services as follows:
Offer PSP food container,EPS foam cup,PP thin-wall dinner box such as equipment manufacturing
Export standard packing
Engineers available to service machinery overseas
