Specifications
KS-75I Automatic PlasticThermoforming Cups MachineMaterial used: PP,HIPS,PE,PET,
Certificate:CE and ISO9001

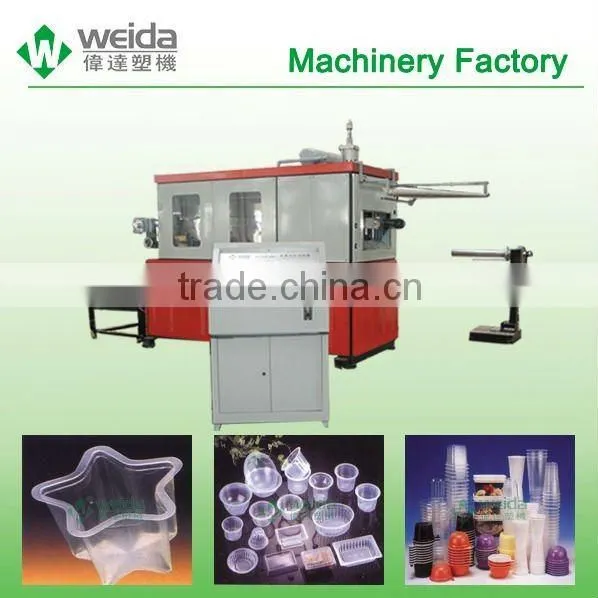

KS-75I Automatic Plastic Thermoforming Cups Machine
Equipment Main features and functions:
1, arranged in shape, high yield.
2, the production speed and low noise.
3, adaptability, can be used for a variety of thermoplastic stretch plastic. Such as: PP, modified PS, PE, PET, PVC and so on.
4, using variable frequency motor feeding, intuitive and easy maintenance. The use of worm gear micro adjustment, easy to adjust the sheet feeding length,
Flexibility.
5, the heating box with stainless steel fully enclosed structure, save energy.
6, adjust the action mentioned panel, easy to operate; with 1% of imported second time relay or PLC control
With the limit switch adjustment, action and high accuracy.
7, the rack assembly of automatic discharge control to achieve the fixed-length pre-feeding, to ensure that the length of each piece sent from unity.
8, received one rack connect with the host, facilitate the collection of edge material.
9, the whole mechanical and electrical integration, compact appearance.
| Mldel | KS-65III | KS-75I | KS-70III |
| matreial usesd | PP,HIPS,PE,PET | PP,HIPS,PE,PET | PP,HIPS,PE,PET,PVC |
| Forming area | 650×320(mm) | 750×400(mm) | 650×620(mm) |
| Forming depth | max120(mm) | max170(mm) | max180(mm) |
| Forming speed | 15~30molds/min | 10~26molds/min | 10~30molds/min |
| Sheets weight | max650(mm) | max750(mm) | max710(mm) |
| Sheets thickness | 0.3~1.2(mm) | 0.3~1.6(mm) | 0.3~1.5(mm) |
| Power comsumption | 76kw | 110kw | 200kw |
| Machine size | L4070×W2100×H3000(mm) | L4070×W2100×H3000(mm) | L6000×W1800×H2500(mm) |
| Machine weight | 5000kg | 6000kg | 7000kg |
