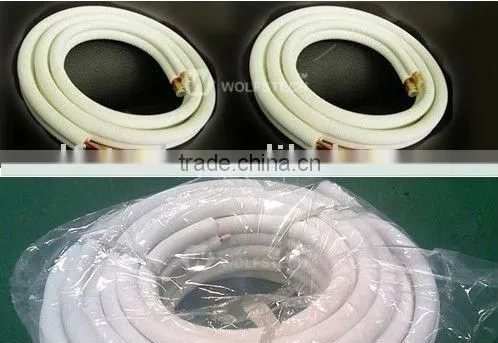

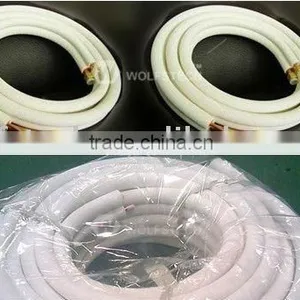

Insulated Copper Tube
Negotiable
MOQ: 1000 Kilograms (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
WOLFSTECH
Model Number:
BWG
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Insulated Copper Tube&CoilUS$ 1 - 20MOQ: 1000 Kilograms -
Insulated Copper Tube /pipe for Air ConditionerNegotiableMOQ: 1000 Kilograms
-
Capillary Tube /pipe in ASTM B360 C12200 for RefrigeratorNegotiableMOQ: 100 Kilograms
-
Seamless Capillary Copper Tube /pipe in ASTM B360 C12200 for Air Condition or RefrigeratorUS$ 1 - 20MOQ: 100 Kilograms
-
Hot Sale Manufacturer-Direct Seamless Leaded Free-Machining Brass Pipe for Pump CylinderUS$ 1 - 20MOQ: 500 Meters
Place of Origin
Jiangsu, China
Brand Name
WOLFSTECH
Model Number
BWG
Type
Other, air conditioning parts
Application
Refrigeration Parts
Certification
Other, ISO9001/14001/18001/CCS
Specifications
Insulated Copper Tube1.widely used:refrigeration, air-conditioner
2.ISO9001/14001/18001/CCS
3.ASTM, DIN, EN, JIS, BS
Insulated Copper Tube
Inside Cleaned Copper Tubes for refrigeration gas and capped at the both ends, with interior surface maximum permissible residue 0.038g/m2;
Phosphorus Deoxidized Soft Temper Copper Tube DHP(C12200, 99.9%Cu);
Dimension and Mechanical Properties acc. to ASTM B280, EN12735-1, AS1571, JIS H3300;
Insulation Properties
1) Polyethylene & PE type
Extruded and Closed cell white polyethylene with a white outside PE-protection layer;
Average Density: 33Kg/m3;
Heating Conduction at 00≤0.033W/MK;C
Working Temperature from -400C until +1200C;
Vapor Resistance: 5000;
White external non toxic and resistance to external chemical agents and ultra-violate rays;
RoHS Certificate Approved;
2) Rubber Type
Extruded and Closed cell synthetic rubber with external protection;
Density:70-90 Kg/m3;
Thermal Conductivity: -200C 00C 400C
(W/(M.K)) 0.031 0.034 0.038
Working Temperature from -5000C (Flat Surface +850C);C until +110
Reaction to fire: self-extinguishing GB8624B1(OXYGEN INDEX 34%),
Non-flammable;
