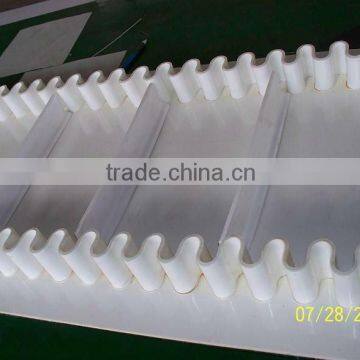

Help CenterWhite Rubber Sidewall Conveyor Belt
Related Products
-
Green Rubber Sidewall Conveyor BeltUS$ 1 - 200MOQ: 100 Meters -
Bule Colour Rubber Sidewall Conveyor BeltUS$ 1 - 200MOQ: 100 Meters
-
Sidewall Conveyor BeltNegotiableMOQ: 100 Meters
-
Sidewall Belt Conveyor /belt for Coal Industry ConveyorUS$ 1 - 200MOQ: 100 Meters
-
China Manufacturer EP Fabric Corrugated Sidewall Rubber Conveyor Belt for Mining IndustryUS$ 1 - 200MOQ: 100 Meters
Specifications
1.high efficiency2.stuff with large obliquities
3.largest angle is ninety degree
4.low maintain cost
5.easy operation
Applying for large angle transporting,the maximum angle is 90 degree. Application: Applying for large angle transporting,the maximum angle is 90°.
Characteristics: 1. To save time Because of large angle transporting,thus can be shortened the horizontal length and save the space of laying area. 2. Strong transporting capacity Compared with common conveyor belt,with large carrying cross section,has stronger transporting capacity than same width conveyor belt. 3. Without sidewall plate Because without sidewall plate,thus avoid the local abrasion. 4. Impossible to use small roller Impossible to use the traditional size of small roller. 5. Because the baseband uses special canvas core to improve the canvas,then improve the anti-broken ability of belt at the same time. 6. The sidewall plate and diaphragm are adhesive with baseband through heat vulcanization method,thus ensure the bonding strength.
Baseband: Baseband is consisted of upper rubber,lower rubber,core and transverse rigid layer.Upper rubber thickness is 3-6mm,the lower rubber thickness is 1.5-4.5mm.The core supports tensile force,the core are:Cotton(CC),Nylon,EP.To improve the transverse rigid ability,it has added special reinforced layers in the core,named transverse rigid layer.Baseband has the same width with common belt.
Cleat: The cleat is produced by fiber load materials.With large anti-shock ability and impact resistance,thus avoid the distortion of stress.The cleat has T,TS,C,TC,TCS five types.TS and TCS types are mosaic pattern.The conveyor angle is small than 40°,using T or TS cleat;the conveyor angle is bigger than 40°,using C,TC or TCS cleat.
Corrugated sidewall plate: According to the carrying capacity,there are three types corrugated sidewall:Light type(N),Medium type(S),Heavy type(ES).
|
Send Inquiry to This Supplier
