Home > Industrial Equipment & Components > Valve > Ball Valve > Diaphragm Valve for Dust Collector/Cyclone Dust Collector

Diaphragm Valve for Dust Collector/Cyclone Dust Collector

Name: Diaphragm Valve for Dust Collector/Cyclone Dust Collector
Brand: FineTek
SKU: 131210559

Diaphragm Valve for Dust Collector/Cyclone Dust Collector thumbnail-1

Diaphragm Valve for Dust Collector/Cyclone Dust Collector thumbnail-2

Diaphragm Valve for Dust Collector/Cyclone Dust Collector thumbnail-3

Diaphragm Valve for Dust Collector/Cyclone Dust Collector thumbnail-4

Diaphragm Valve for Dust Collector/Cyclone Dust Collector thumbnail-5

Diaphragm Valve for Dust Collector/Cyclone Dust Collector thumbnail-6

Diaphragm Valve for Dust Collector/Cyclone Dust Collector photo-1

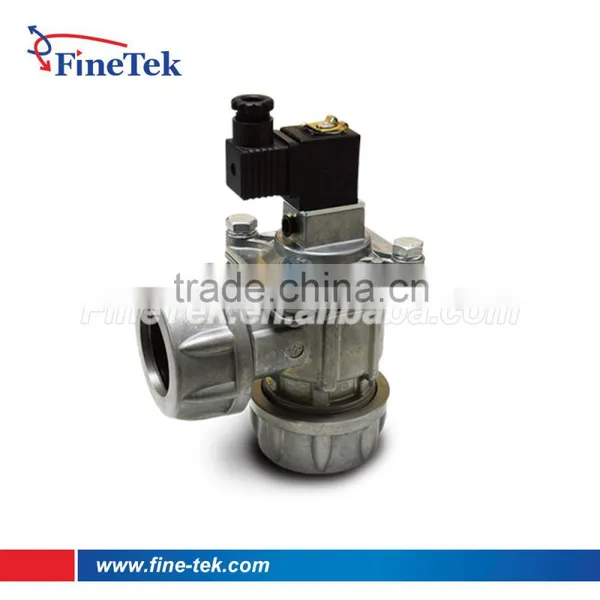

Diaphragm Valve for Dust Collector/Cyclone Dust Collector photo-2

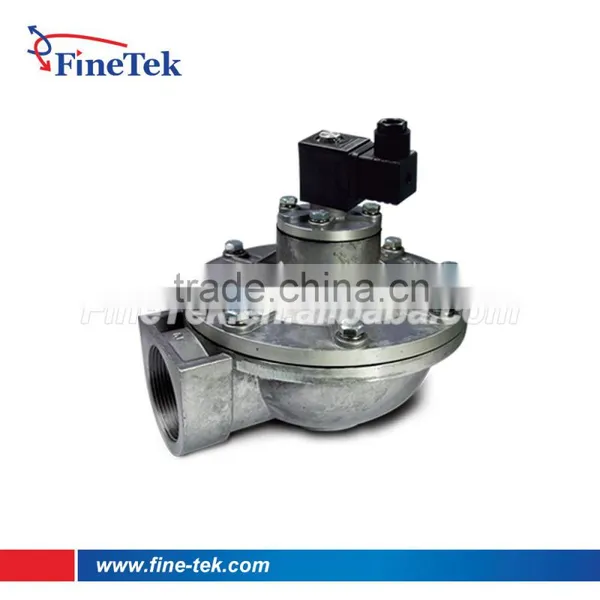

Diaphragm Valve for Dust Collector/Cyclone Dust Collector photo-3

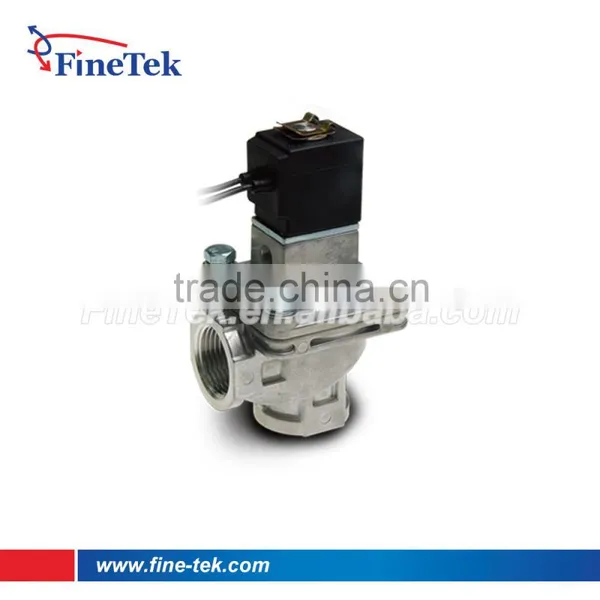

Diaphragm Valve for Dust Collector/Cyclone Dust Collector photo-4

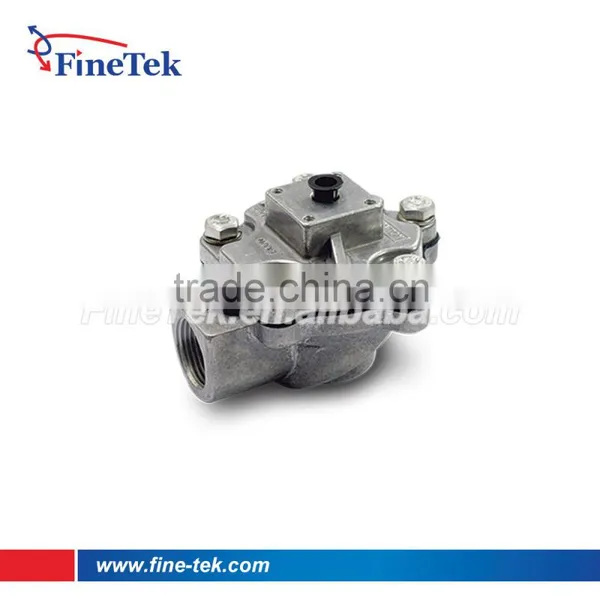

Diaphragm Valve for Dust Collector/Cyclone Dust Collector photo-5

Diaphragm Valve for Dust Collector/Cyclone Dust Collector photo-6

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Taiwan, China

Model Number:

BRD series

Brand Name:

FineTek

Contact Supplier Request Quote Chat Now

Finetek Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Keelung port

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Taiwan, China

Model Number BRD series

Brand Name FineTek

The diaphragm valves are used specifically in the dust collector system. The valve consists of 2 air chambers divided by a piece of diaphragm. The 2 chambers are connected through an air passage (air passage's diameter is smaller than the orifice of the pilot valve). When the orifice opens, the air in the upper chamber is exhausted much faster than the speed of air that enters through the air passage. The air pressure of the upper chamber drops significantly, the higher pressure of the lower chamber pushes the diaphragm up and opens a bigger passage for air to enter into the bottom chamber. This sudden burst of air is used to inflate the fabric filter so as to shake off all the dust clinging on the bag filter. When the orifice closes, the pressure in both chambers equalizes and the diaphragm returns to its original position via the force of the coiled spring.

Fast response, large flow volume, effective cleaning action on fabric filter.
Low air consumption.
Compatible with programmable sequential controller.
1 Ease of adjustment in jet pulse timing and duration.

Pulse cleaning and filtering system in dust collectors, also suitable for filter bags, filter barrels, flat bags, ceramic tubes and filter bags for metal fiber.
