Plastic bottle blowing machine
- 8 Set / Sets per Month
- shanghai
- T/T
Product Details
| Condition: | New | Place of Origin: | Jiangsu, China | Brand Name: | Apollo |
| Model Number: | ABLB55II | Certification: | CE |
Product Description
Specifications
Plastic bottle blowing machineSuitable for 2 L bottle
Stable movement & Reliable function
CE proved

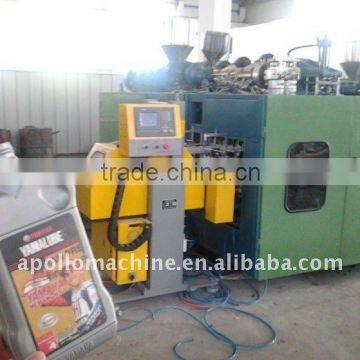

Automatic extrusion blow molding machine
Model No.: ABLB55II(double station double die head)
This type of blow molding machine ABLB55II can produce bottle, kettle, can, balls etc. The machine is especially designed for producing with material PE, PVC, PP so on. The productive capacity can reach 480~650pcs/hr
Automatic extrusion blow molding machine ABLB55II
CE certification About us
Shampoo bottles Plastic balls
Main parts of Machine | Picture | Explanation |
Mould Open and Close machanism |
|
Double station Open and close the mould |
Oil Pump |
| Oil pump From TaiWan JinShun /YUKEN drive the machine |
Computer control system (PLC) | | Japanese Mitisubishi PLC
Used to control all electrial components and touch screen |
Screw and fan | |
Screw diemeter 55mm Fan used to cool the screw |
|
|
|
|
|
|
electronic parts |
|
Name | Trader |
Micro computer control system | Japanese MITSUBISHI |
Temperature Controller | TAIWAN YANHUA PID |
Auxiliary Relay | OMRON |
contactor | Schneider from France |
Electric motor | Three phase 220V or 380V |
Power Source | TAIWAN MEANWELL |
Transducer | TAIDA FROM CHINA |
hydraulic parts |
|
Name | Trader |
Oil pump | TAIWAN HIGH-TECH |
Valve | TAIWAN JINSHUN/YUKEN |
Oil pump and connection | TAIWAN JINSHUN/YUKEN |
Sealed part | HALLITE |
air control system |
|
Name | Trader |
Cylinder | AIRTAC |
Air Valve | FESTO |
Technical Parameters: ( ABLB55II )
Max. Product volume | 1 liters |
Out put capacity | 480~700pcs/h |
Screw diameter | 55mm |
Screw L/D ratio | 24 L/D |
Screw drive power | 15 KW |
Screw heating capacity | 5 KW |
No.of heating zone | 3 zones |
Output of HDPE | 60 KG/H |
Oil pump drive power | 7.5 KW |
Clamping force | 45KN |
Max.size of mold | 148-508mm |
Mold stroke | 320 X 360mm |
Max.die diameter | 140mm |
Blowing pressure | 0.6 mpa |
Air Volume | 0.5 M³/MIN |
Cooling water pressure | 0.3mpa |
Water consumption | 40 L/MIN |
Size of Machine | 2.9x1.5x2.5m |
Weight of machine | 4.5 ton |
30% down payment paid at signing this contract by T/T , and the balance of 70% paid before shipment by T/T or irrevocable L/C.
DELIVERY:
Delivery no later than 40 days, after we received the deposit.
