Home > Products > Blow molding machine > 4L Extrusion Bottle Blow Molding Machine

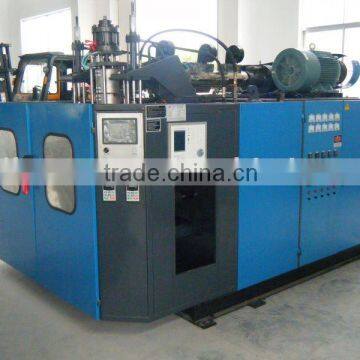

4L Extrusion Bottle Blow Molding Machine
- shanghai
- T/T
You May Like
Product Details
| Condition | New | Application | Bottle | |
| Plastic Processed | PVC | Blow Moulding Type | Extrusion Blow Moulding | |
| Automatic | Yes | Place of Origin | Jiangsu, China | |
| Brand Name | Apollo | Model Number | ABLB65II |
Product Description
Specifications
Plastic blow molding machineMax volume 4L
adopt Japan&Taiwan technology
perfect after-sale service
competitive price
Auto plastic blow molding machine ABLB65II
Products:
PLC
This type of machine is suitable to produce different shapes of plastic bottles from 500ml to 4L.
Adopt Mitsubishi PLC from Japan
Contactor use Schneider from France
Most of spareparts of hydraulic system and pneumatic system are imported from Japan,Korea,France and Taiwan,china to ensure the quality of the machine.
Related technical parameters:
Features: (ABLB65II)
Max. Product volume | 4 liters |
Dry cycle | 800X2pc/h |
Screw diameter | 65mm |
Screw L/D ratio | 24 L/D |
Screw drive power | 18.5 KW |
Screw heating capacity | 5.7 KW |
No.of heating zone | 3 zones |
Output of HDPE | 80 KG/H |
Oil pump drive power | 7.5 KW |
Clamping force | 45 KN |
Max.size of mold | 148-508mm |
Mold stroke | 320X360mm |
Max.die diameter | 140mm |
Blow pressure | 0.6mpa |
Air volume | 0.7 M³/MIN |
Cooling water pressure | 0.3mpa |
Water consumption | 65 L/MIN |
The main components of the machine. ( ABLB65II )
electronic parts |
|
Name | Trader |
Micro computer control system | Japanese MITSUBISHI |
Temperature Controller | HuiBang PID |
Auxiliary Relay | OMRON |
contactor | Schneider from France |
Electric motor | Three phase 220V or 380V |
Power Source | TAIWAN MEANWELL |
Transducer | TAIDA FROM CHINA |
hydraulic parts |
|
Name | Trader |
Oil pump | Japan YUKEN |
Valve | Japan YUKEN |
Oil pump and connection | Japan YUKEN |
Sealed part | HALLITE |
air control system |
|
Name | Trader |
Cylinder | AIRTAC |
Air Valve | JELPC |
