Waste/Used Engine Oil/Motor Oil/Pyrolysis Oil Refining To Diesel Fuel, Base Oil Distillation Machine
1. Brief Introduction
The waste oil refining distillation machine is applied to recycle the waste liquid oil (such as crude oil, used engine oil, waste tyre or plastic oil from pyrolysis plant) into diesel, gasoline or base oil(from used engine oil). It mainly includes oil distillation kettle, rectifying tower, oil-gas cyclone sedimentation tank, condensation system, oil storage tanks, vacuum system, heating system, emission controlling system, feedstock pretreatment system.
2. Details of the system
No. |
Item |
Content |
1 |
Model |
YN-ZL-10 |
2 |
Processing capacity daily |
10tons |
3 |
Distillation kettle |
ø2000*3000*12mm |
4 |
Work pressure |
Normal pressure and negative pressure |
5 |
Power |
30kw |
6 |
Cooling type |
Water cooling tower |
7 |
Covering area |
400m2 |
8 |
Shipment |
3*40’HQ |

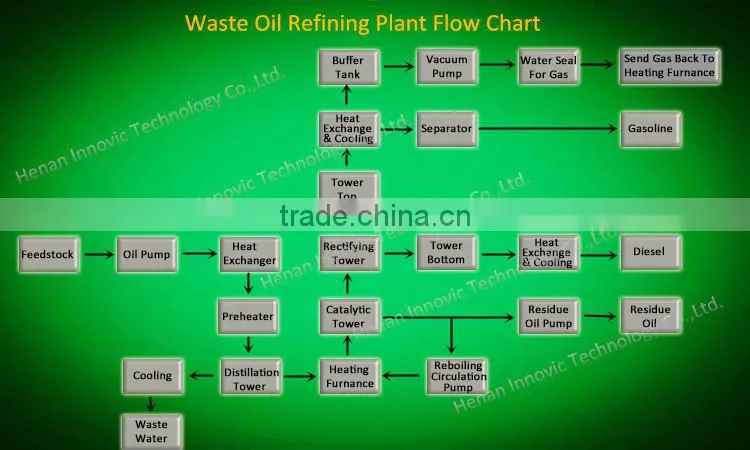

3. Working Flow
4. Parameter of Diesel
Project |
Diesel |
Standard |
Oxidation Stability |
2.2 |
≤2.5mg/100ml |
Sulfur Content (%) |
0.03 |
M/m≤0.2 |
10% Steamed Residual Carbon Residue (%) |
0.33 |
M/m≤0.3 |
Ash Content (%) |
0.016 |
%m/m≤0.01 |
Density |
0.85 |
0.83-0.87 |
Solidifying Point/°C |
-10 |
0 |
Flash Point (closed)/°C |
45 |
55 |
Movement Viscosity |
3.5 |
(20°C)mm2/s3.0-8.0 |
Combustion Value |
9500 |
8500 |
Colority |
1.2 |
≤3.5 |
Cetane Number |
40 |
45 |
5. Features of the Used Oil Refining Distillation Machine
1) Safety
2) Environmental-friendly
3) Energy conservation and low cost on operation
6. Photos & Picture

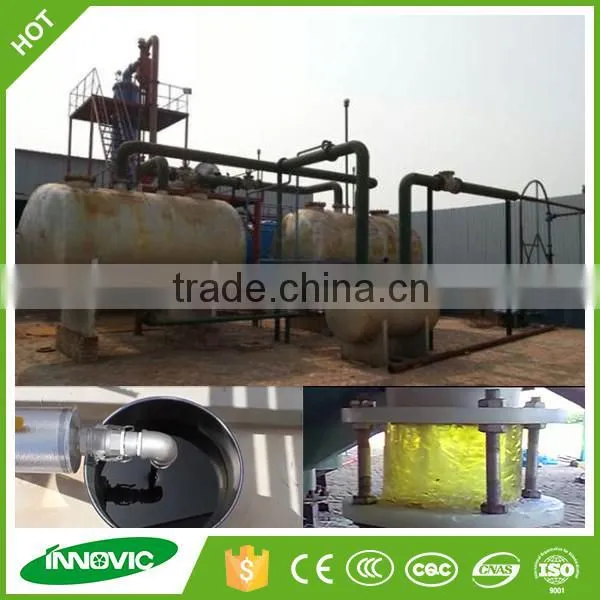

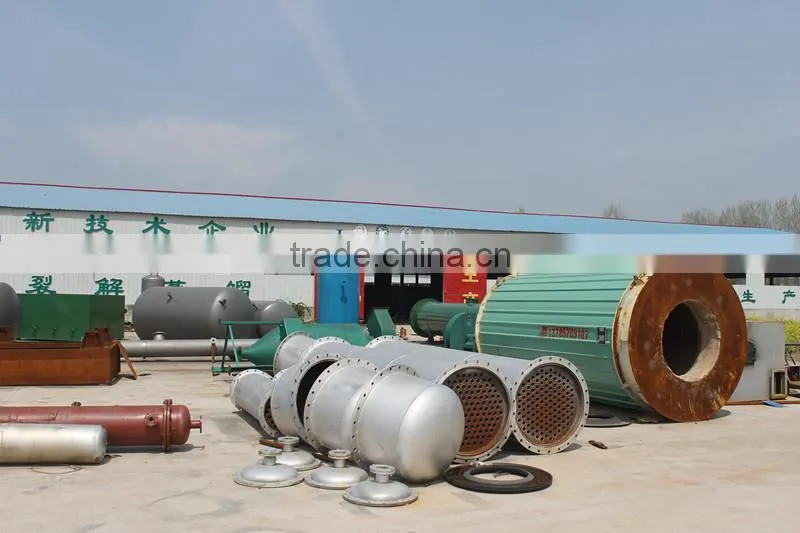

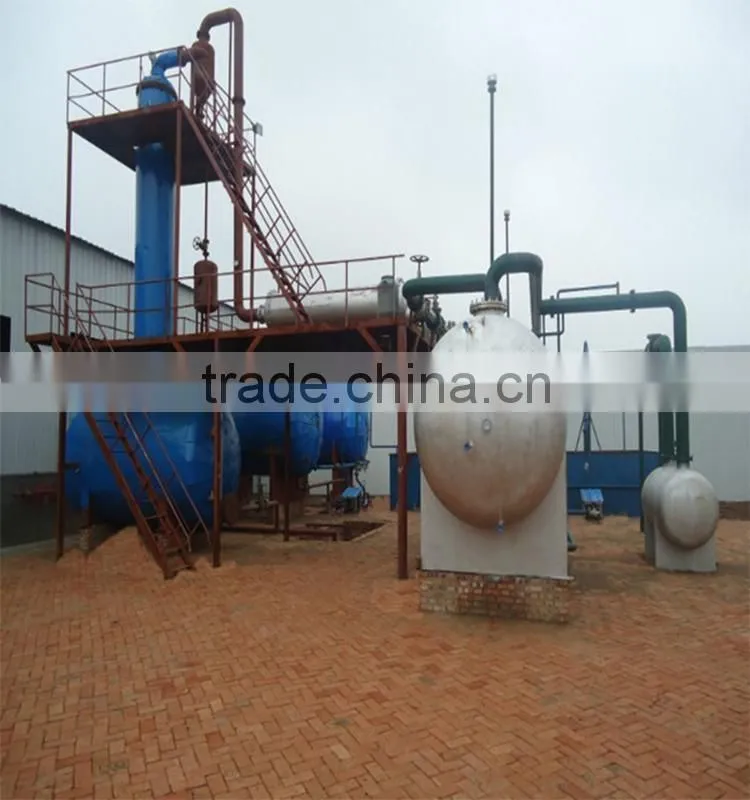

1) Plant in our factory

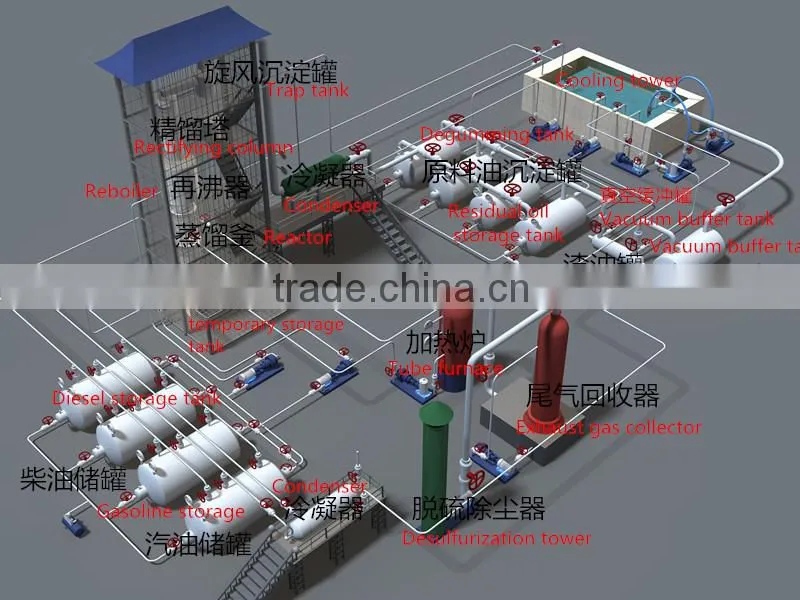

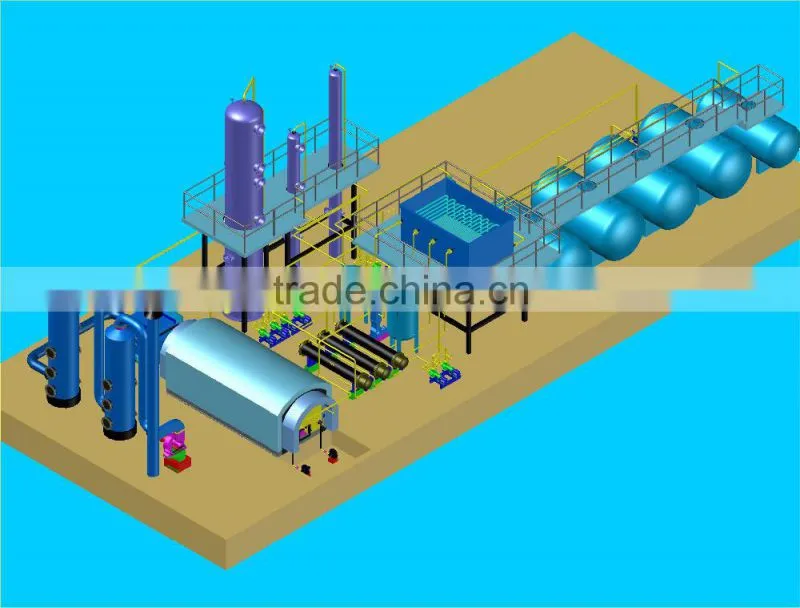

2) 3D drawing

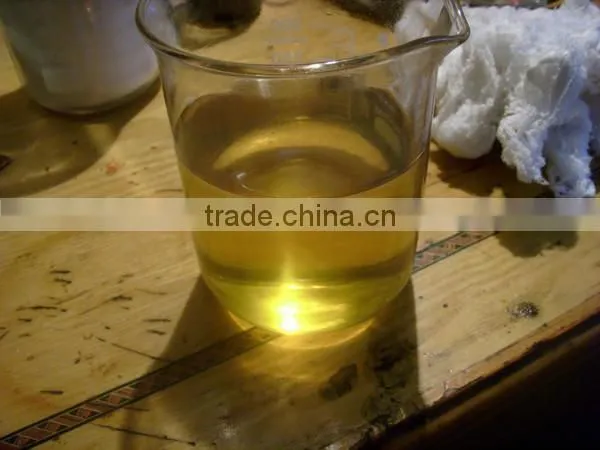

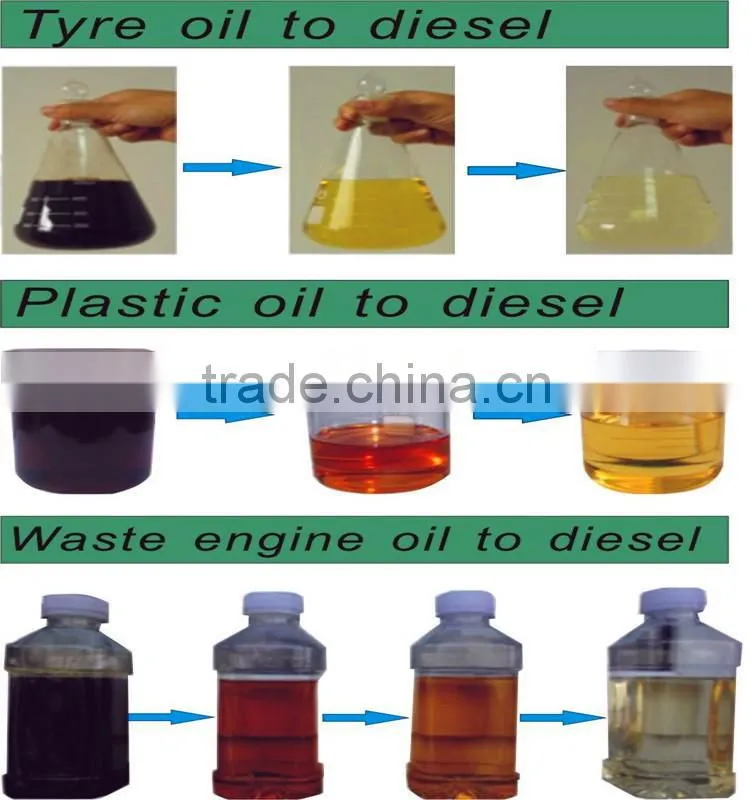

3) Different materials to diesel

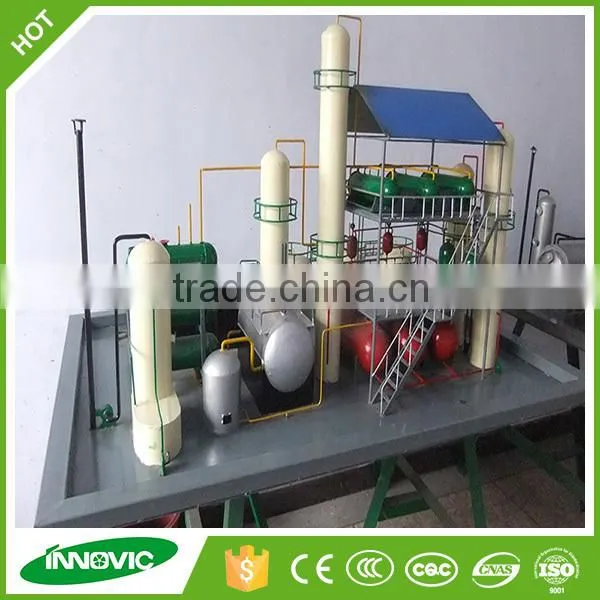

4) Model
7. After-Sale Services
1).Quality warranty period:
One year warranty for the chamber of the distillation machines,and lifetime maintenance for complete set of machines.
2). After ordering:
We supply layout drawing according to workshop and land field, civil works information, operation manuals, etc. to the buyer.
3). Installation and Commissioning:
According to buyer's requirement, our company sends engineers for installation and commissioning in buyer's site including skills training of buyer's workers on operation, maintenance, etc.

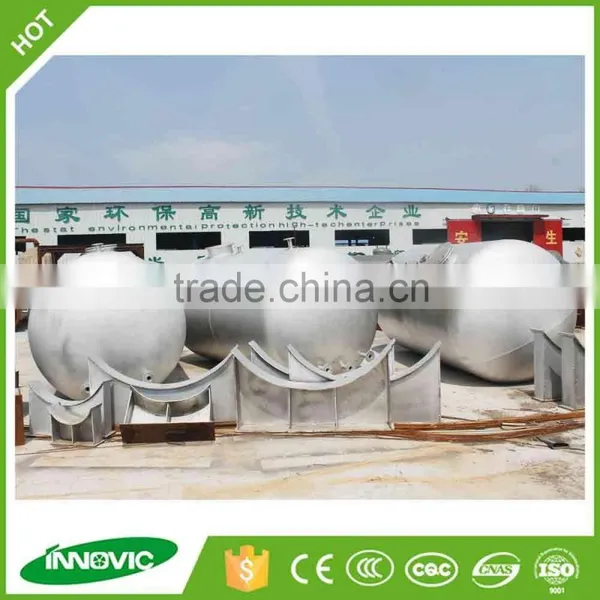

Factory workshop

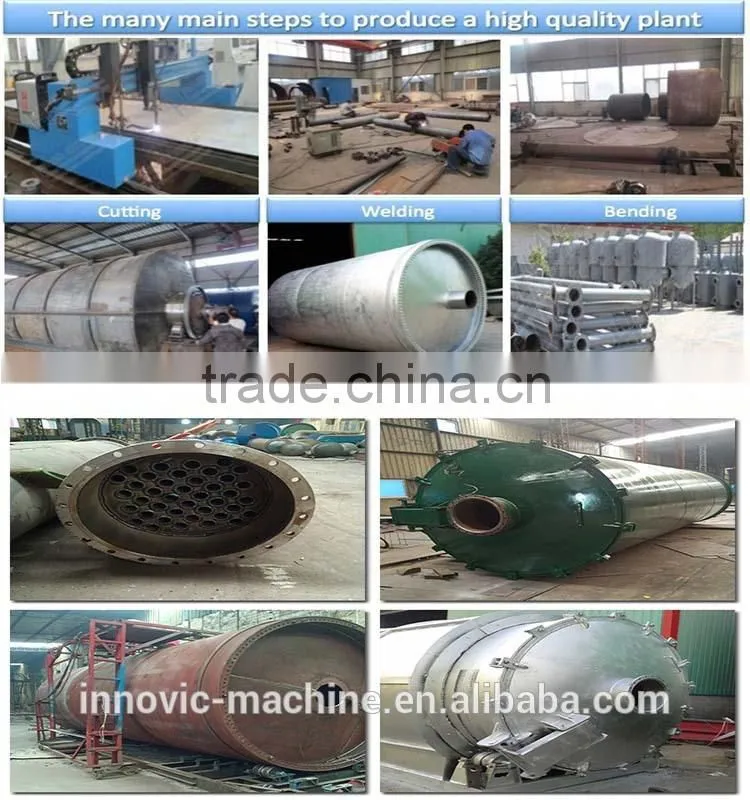

Production

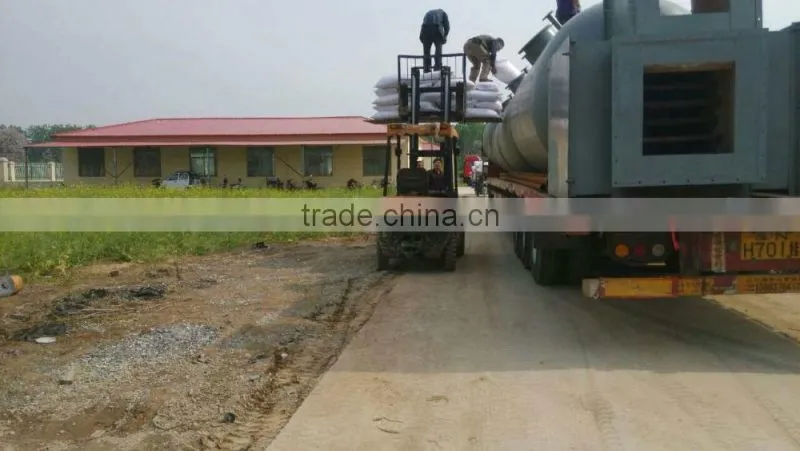

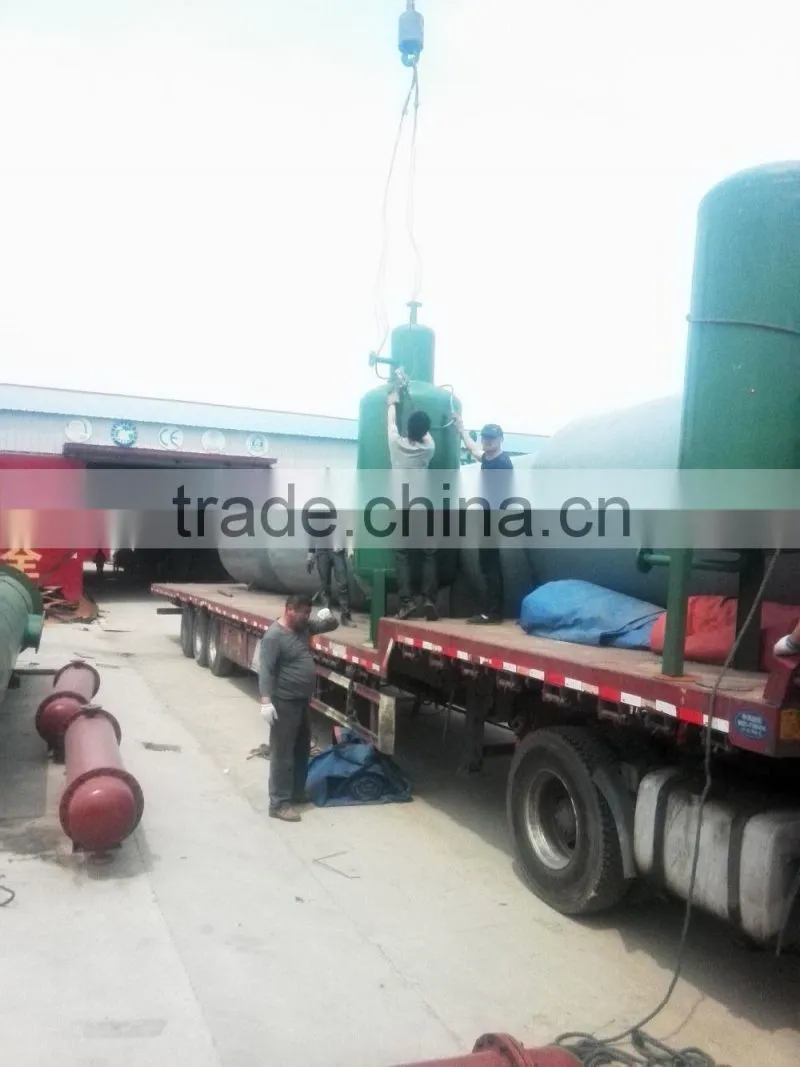

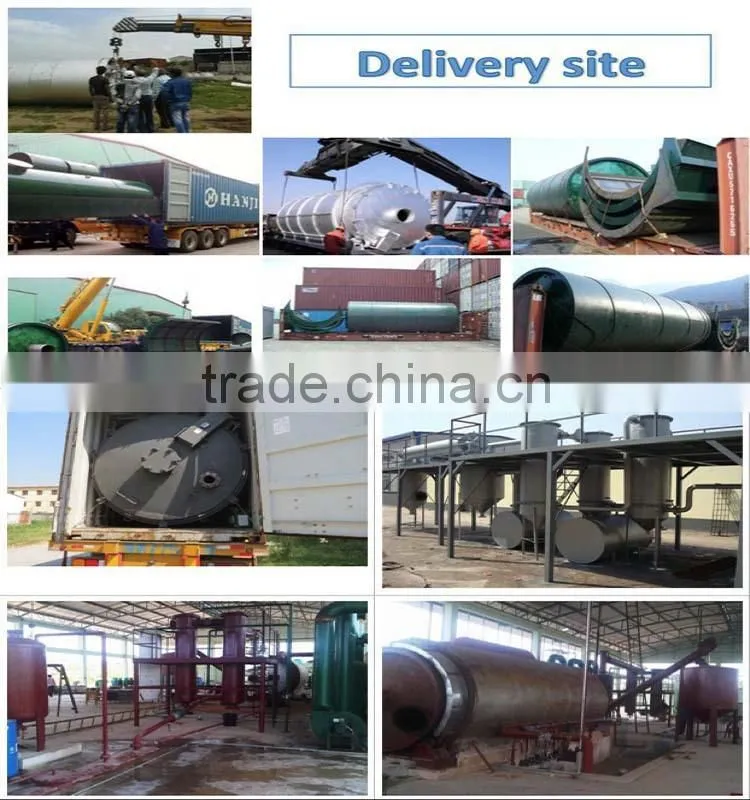

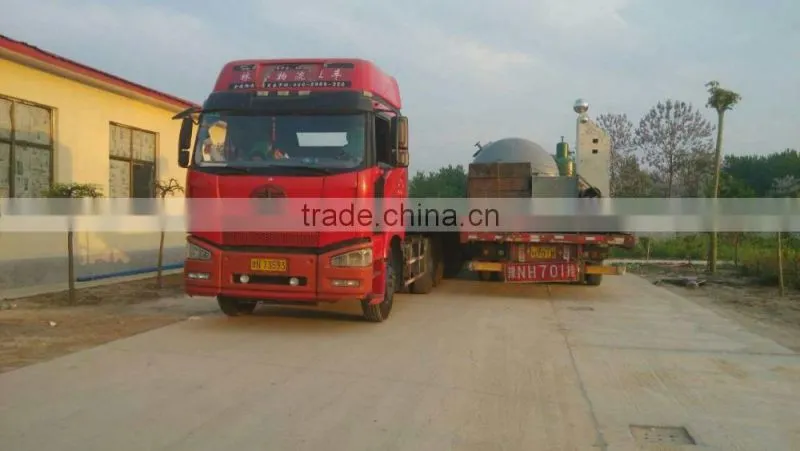

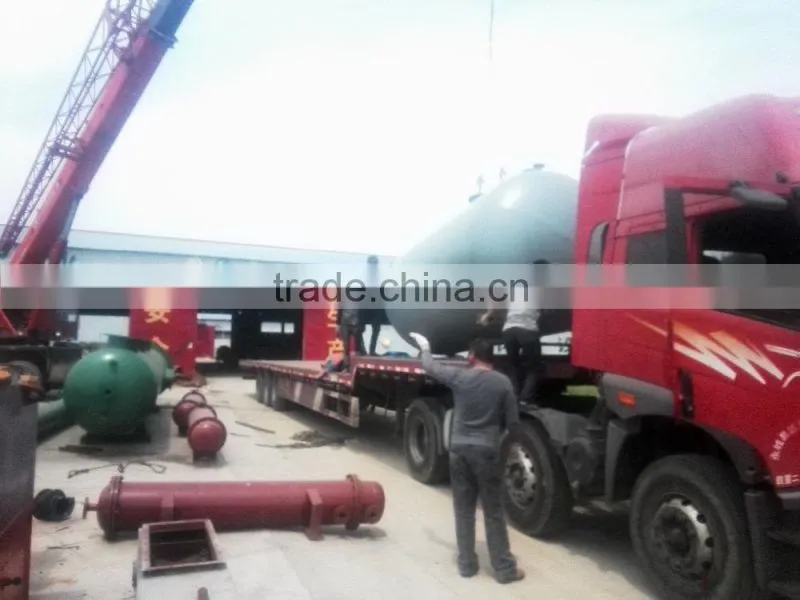

Loading & shipping
