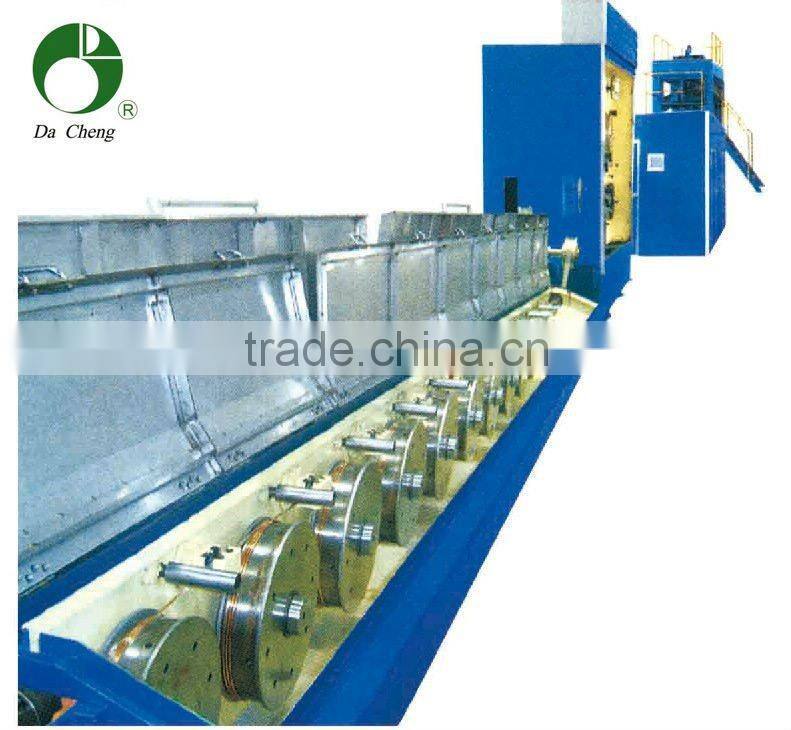

Die Larger Diameter Wire Drawing & Continuous Annealing
ADVANTAGE
* Horizontal Linear series structure & double motor driving is adopted to realize a quick die-change.
* Continuous anneal machine adopts two-stage resistance annealing and built-up touch wheel to transmit electricity, easy to change the wheel disk.
* Adopting steam protection anneals,and equipped with cooling control of water cycle,make the extension ratio of wire more stable.
* Anneal voltage tracks the drawing speed of the wire automatically with high quality in anneal.
* Adopting immerging cooling of wire and drawing die as well as immerging lubricating.
* Separated wind cooling system is applied to cooling the touch wheel axis.
* A helical gear transmission of high efficiency with low noise.
* Main electric elements adopts international famous brand.

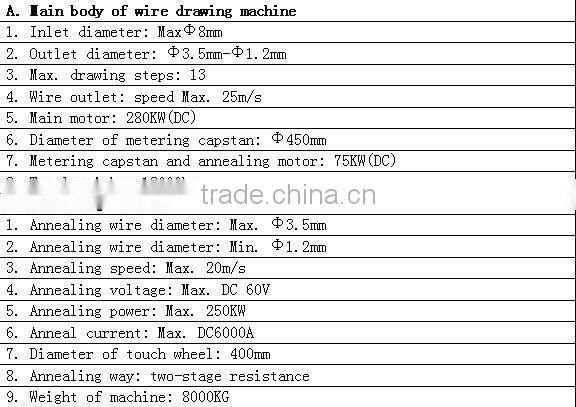

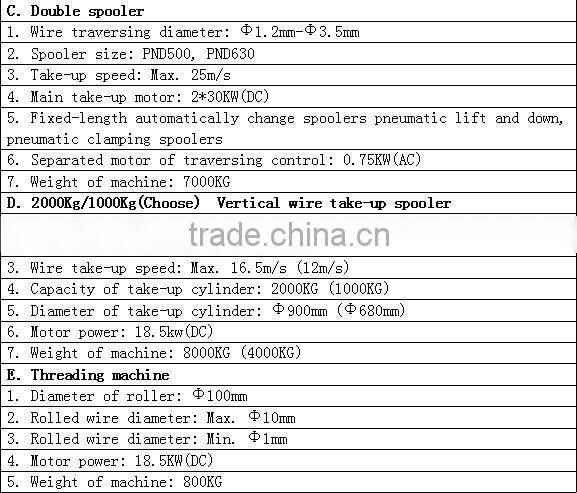

PARAMETERS

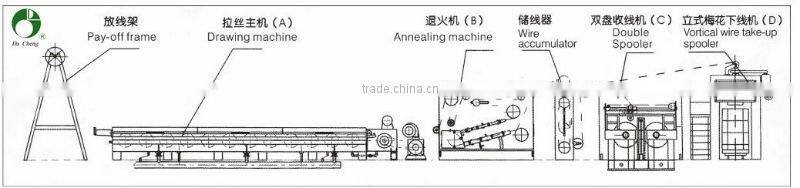

PICTURE SHOW
