Specifications
This machine is used for washing raw wool, to remove grease, hayseed, and other impurities, is the host device indispensableINTRODUCTION TO LFB025-152C TYPE COMBINED WASHING MACHINE

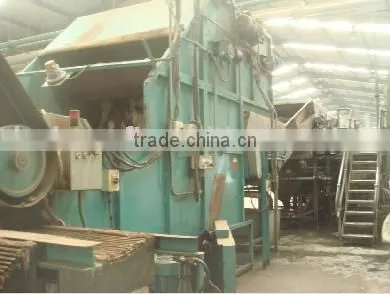

The LJF025-152C-type combined washing machine is designed by our company engineers and technical personnel. In China It is still advanced equipment, it is widely use in wool washing industry. Due to many years of production experience and advanced equipment similar foreign characteristics, the machines have high production capacity, good quality and easy maintenance,
A) APPLIICATION:
B) This machine is used for washing raw wool, to remove grease, hayseed, and other impurities, is the host device indispensable for wool.
C) TECHNOLOGICAL FLOW OF THE MACHINE:
The first Feed wool machine--- Three Cylinder opener—The second Feed wool machine--- the first Immersion tank---the first roller mill---the second Immersion tank ---the second roller mill ---the third Immersion tank ---the third roller mill---the forth immersion tank---the forth roller mill--- the fifth immersion tank --- the fifth roller mill ----the third feed wool machine--- Eight rooms drying machine
D) PRODUCTION CAPACITY,POWER AND OUTER SIZE:
- PRODUCTION CAPACITY:
The clean wool capacity is more than700Kg/h
- POWER:
Water: 10~16T/h
Steam:1.6t/h
Power:70.35KW
- SIZE:LXBXHmm:
70000X3500X3000
E) CAPABILITY AND STRUCTURE
- This machine applies three-cylinder opener process to remove impurities before immersion
- The roller mill applies spring to add pressure,which guarantee the max pressure of 12 tons.The roller is made of cast steel.
- The dip tank for the overflow tank with a sharp end of groove, melting ratio, lotion, long life cycle, easy to clean, drain placed the end of a smooth, completely overcome the disadvantages of the hole leakage hair, made of high quality.
- Dipping tank, car transmission parts are used rolling cycloid reducer, mechanical
efficiency (up to 90% or more) durable, small footprint, easy maintenance, save energy.
- The main channel and sub-tank immersion tank in stainless steel (SUS 304) plate welding, bright and clean, long life cycle.
- Rake frame transmission dip tank are used crank-type drive, smooth a small number of parts, easy maintenance, long life cycle.
- Velvet curtain drying machine transmission drive with frequency control devices. According to different process. Shutter speed constantly changing requirements, long life, easy maintenance, transmission efficiency.
F) THE UNIT OF COMBINED MACHINE (SOME ARE TYPE NAMED BY OUR COMPANY)
Type |
Name |
Wide(mm) |
Piece |
B044-100 |
Opener machine |
1000 |
1 |
B031-100 |
Feed machine |
1000 |
1 |
B031-152 |
Feed machine |
1520 |
1 |
B033-183 |
Feed machine |
1830 |
1 |
JF025-152-1000 |
The first and second Immersion tank |
1520 |
2 |
JF025-152-3000 |
The third, forth and five Immersion tank |
1520 |
3
|
Company Name:ZHANGJIAGANG DACHENG TEXTILE MACHINERY CO.,LTD Address:LUYUAN TANLI ECONOMIC DEVELOPMENT ZONE TANGQIAO TOWN ZHANGJIAGANG CITY CHINA Website: www.dachengfj.en.china.cn Sales Manager:Mr. Steven Liu Tel:0086-512-58352786 Cellphone:0086-13773240991 Skype:jaky5188
Hotmail:milo.ceoFax:+86-512-58477030 P.C.:215616
JF025-152-5000
Roller mill
1520
5
B061-8
Drying machine
1915
1
