FBL316/FBL316Y High Speed Effective Gilling Machine,Gill Box,Spinning Machine(worsted,fore-spinning)

Specifications

1.FBL316/FBL316Y Gill Box
2.CE & ISO Certificate
3.High Quality
4.High Performance-price Ratio
5.Easy Operation







 Use







With the sliver discharging speed reaching up to 250m/min and the front ratch being 39-63mm.FBL316/FBL316Y chain Gilling Machine,Gill Box,Spinning Machine is especially applicable to large batch wool sliver process and are used for the pure spinning and spinning of low,medium and high-count imitation wool and fiber.



Characteristics



Equipped with frequency converter,PLC,touch screen,automatic controller,etc.And convenient to operate and maintain.



FBL series wool spinning combing machine Main specifications and technical parameters
ItemModel	FBL316/FBL316Y
Output slicer  quantity(piece)	1
Feed-in sliver  quantity(piece)	10
Feed-in sliver  can's  specification(mm)	Φ700*1000
Output ball top  specification(mm)	Φ500*550
Output sliver can's  spcification(mm)	Φ700*1000
Maximum Feed-in  weight(g/m)	240
Maximum output  sliver  weight(g/m)	25
Carding mode of the  carding  box	Chain type
Needle bar  specification(mm)	332*13.5
Needle bar qty(piece)	72 both left and right sides
Needle density(stiches/cm)	2.5-5(Optional)
Needle hitting  times(times/min)	5000
Special chain  specification	9.525-3*72
Front roller sliver  discharging  speed  (m/min)	250(Normallyopen200)
Drafting multiple	4.4-12.7
Front roller  spacing  (mm)	39-63
Self-leveling  apparatus	FBl313Y Yes
Wool lubricating  device	Yes
Front roller  specification  (mm)	Φ62.5/Φ30
Front leather  roller  specification(mm)	Φ80
Rear roller  specification (mm)	Φ62.5
Rear pressurized  leather roller  specification(mm)	Φ80
Front roller  pressurized mode	pneumatic
Rear roller  pressurized  mode	pneumatic
Main electrical  machinery  power(Kw)	5.5
Dust collecting  motor's  power(Kw)	1.5
Frequency  converter's  specification	3G3RV-A4055
overall dimension ( L*W*H(mm)	8416*2124*2181

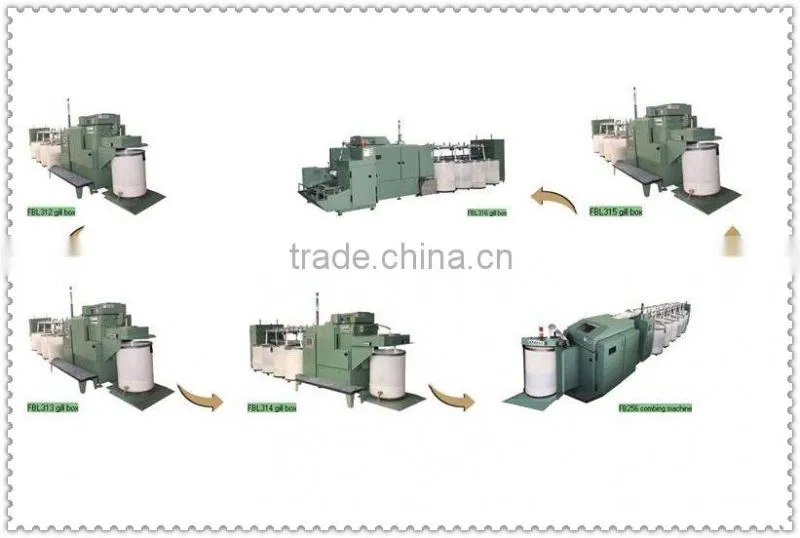

Picture Show
