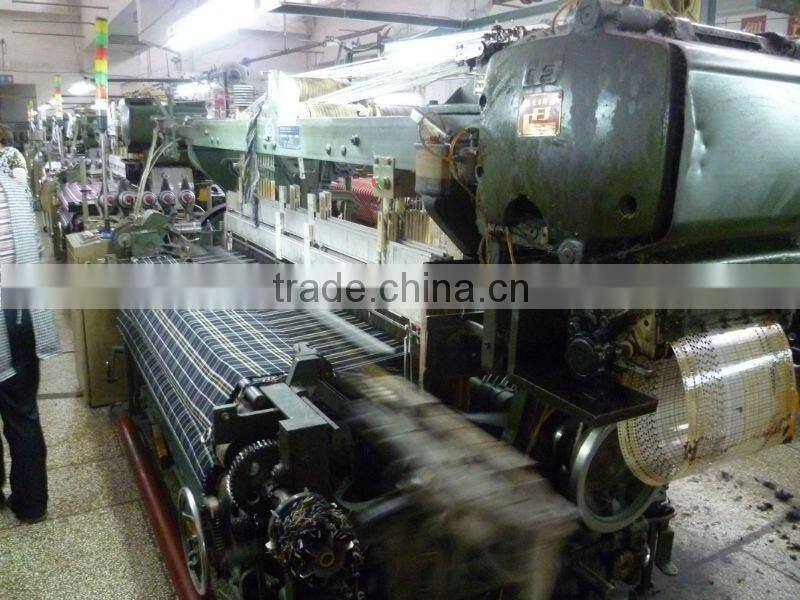

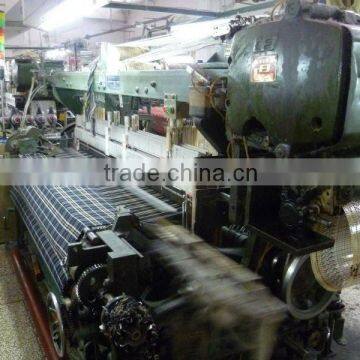

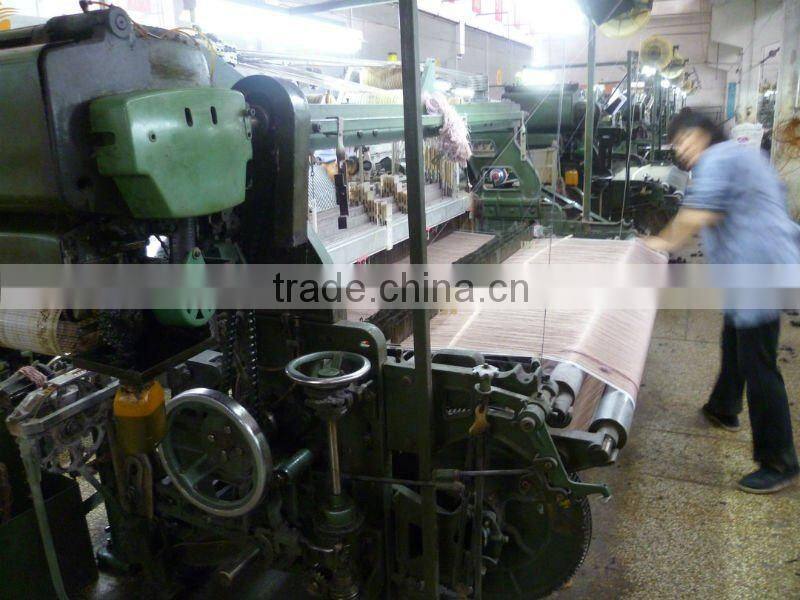

Used/Secondhand GA747 Rapier Looms,Weaving Looms
GA747 rapier loom is applicable for weaving blender yarn,fancy yarn,crepe yarn,natural fabric,cotton,wool and linen.There are two shedding methods:dobby shedding and jacquard shedding.Color choice can reach 6 kinds.This rapier loom has reasonable design,precise making,convenient operation and low maintenance rate.
This machine has wider applicability and stronger ability in weaving heavy fabrics,used to weave tabby,satin,twill, and jacquard for cotton-hemp,chemical fibre and spun-silk. It adopts flexible rapier ribbon in weft insertion, ASGT211 dobby shedding,six-color weft selecting, out-loom let-off and centralized oiling. it can locate and self-stop when occuring weft-breaking, warp-breaking and weft accumulator malfunction. It adopts KJ indicating lamp to indicate and adopts light-weight, high-strength carbon fibre compoun material and aluminum ally material, with simple and reliable structure. Moreover,its machine frame and warp let-off structure is as common as that of GA615 shuttle loom. This machine is tested as qualified product and issued qualification certificate by nation-level inspection center.
The main performance and specifications:
(1)Working Width: 180cm 340cm.
(2)Yarn: Cotton hemp, chemical fiber & blending.
(3)working speed:145-190 r/minute.
(4)Weaving yarn size: chemical fiber 75-1800den., others: 13-195tex
(5)Number of head frames : 16 frames
(6)Color number of weft yarn: six colors (dobby control)
(7)Slvedge type: doup edge
(8)Weft density:30-800 threads/10cm
(9)Te diameter of warp flanges:Φ550mm-Φ600mm
(10)The meter of fullcloth:Φ400mm .
(11)Warp stop motion: six-row electrical control .
(12)Weft stop motion: piezoelectric ceramics .
Model |
|
rapier loom |
Reed width(cm) |
180(74) 340(133) |
|
Rotation speed(R.P.M) |
145-190 |
|
Weft selection |
6Colors |
|
Yarn count |
Catton 7-60Ne Wool 12-100Nm Chemical fabric 100-650D |
|
Dia.of warp beam(mm) |
Φ600 |
|
Dia of rolling-up(mm) |
Φ400 |
|
Number of heddle frame |
|
≤16 pages |
Insertion rate(m/min) |
|
300-400 |
Electrical control |
P.L.C |
|
Motol power(KW) |
1.5-1.8KW |
|
Weight(kg) |
1700-2200 |
|
Overall size(mm) |
3600*1827*2120 (330cm/130) |
