Fortune 1.9m YF-2000UV UV LED Printer
With Epson DX5 DX7 Printhead
1.Print for Vinyl, Polyester ,Flex, Back-lit Film, Canvas,Sticker, Wall Paper,Leather etc
2.One year warranty, Good after-sale service
3.High resolution 1440 dpi,auto cleaning system
4.With epson dx5 dx7 printhead, printer easy to operate
5.Standard equipped Fan system
Model |
YF-2000UV / UV Printer |
Printhead |
2 Epson DX5/ DX7 Printhead |
MaxPrinting Width |
1900mm |
Ink Type |
UV LED ink |
Resolution |
Up to 1440dpi Visual Resolution |
Color |
Double CMYK |
Ink Supply System |
Positive Ink supply system with cleaning function Ink tank capacity: 1500ml/color |
Print Speed |
32sq.m/h 20sq.m/h 12sq.m/h |
Media Type |
Vinyl, Flex Banner, Mesh, One Way Vision, Paper, Textile, Wall Paper, Coated Banner, Canvas, Film, Lint-free Cloth, Photo Paper etc. |
Media Thickness |
1.5mm ( 1.5mm-5mm adjustable ) |
Media Roll Diameter |
55mm or 76mm/ <200mm |
Maximum Media Weight |
100KG |
Data Communication |
High Speed USB2.0(480m/s) |
Image Data Format |
BMP,TIFF,EPS,PDF,AI,JPEG |
RIP Software |
Ultra Print V4.4 YIFANG Version/ Photoprint/ Maintop |
Operation Environment |
Power Supply: 220V (+10%), >10A, Single phase Temperature:18℃-35℃Humidity: 40%-70% |
Working Environment |
18-32℃ |
Power Consumption |
700W |
Machine Size( LxWxH ) |
3010*860*1280mm/ 220KG |
Packing Size( LxWxH ) |
3070*860*730mm/ 300KG |
Motor |
Perfect Brushless Servo Motor |
Linear Rail |
Original Industrial Non-noise Linear Rail |
Heating System |
Digital Control Pre & Back Heater |
Media Feeding |
Equipped |
Drying System |
Equipped |
IR Drying System |
Optional |
Take-up System |
Optional : Single/Double driven Automatic take-up |

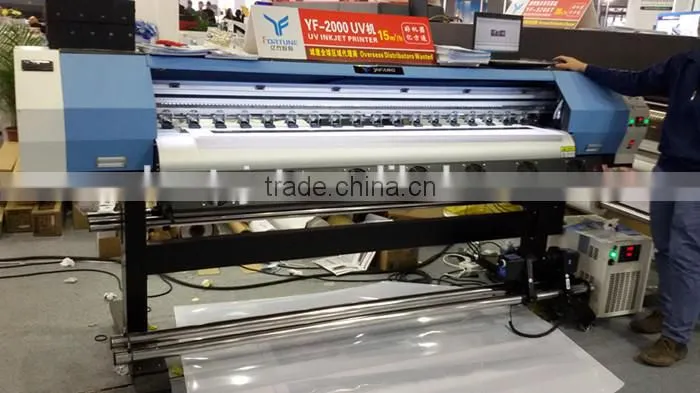

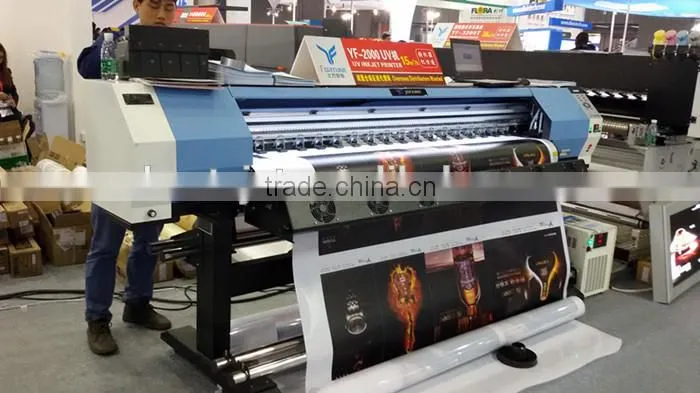

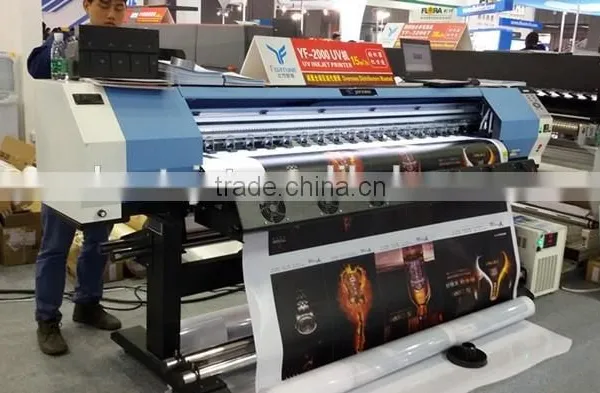

Machine Photo Show:
Features :
1, Adopt aluminum-magnesium alloy printing platform, more strength, high precision, durable and restore 1440dpi printing precision.
2, With high precision servo motor control system to achieve high precision print and faster print speed.
3, With six or more variable droplet printing technology up to 1440dpi.
Adopt VSDT variable droplet technology , the smallest drop is 3.5PL and the max is 27PL, reflect the perfect print quality.
4, 3D eclosion function, advanced droplet control and high fault-tolerant eclosion technology to ensure perfect output quality and suitable for special material printing output.
5, Printhead color sequence, adjust color sequence arrange in one head by software, it can meet spot color output or solve the problem caused by printhead ageing to extend its actual using life.
6, Multi-Contact point type paper clamp, latest multi point contact adopt 20mm diameter feeding roller and combined with high precision mould production to ensure multi material feeding precision and stable.
Our Engineer Visa and Customers Payment:
Why Customers Select Us:
- We are professional in digital printer, printing inks, and spare parts of printers.
- We have professional engineers who have more than ten years experience to help you solve all kinds of questions.
- We have good after-sale service, one year warranty, and deliver with good package and fast speed.
- If you have any problems, our engineers can service oversea, and help you solve your questions.
- We have a big market and a lot of customers all over the world.
- Our annual sales are large, because we do it well.
