Characteristics of the Product

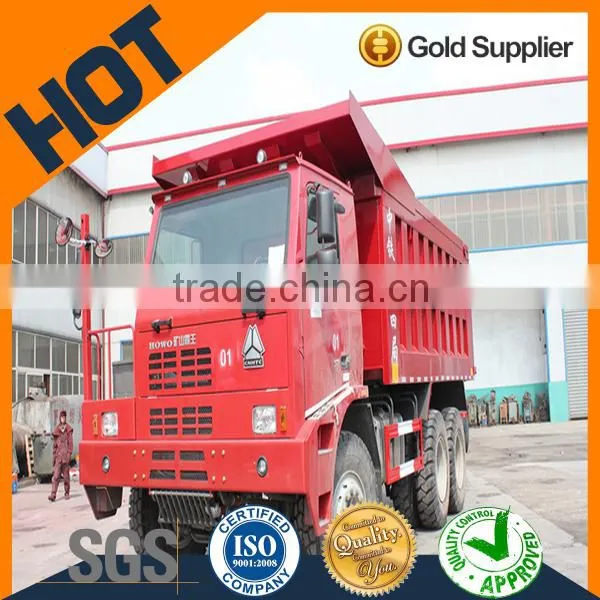

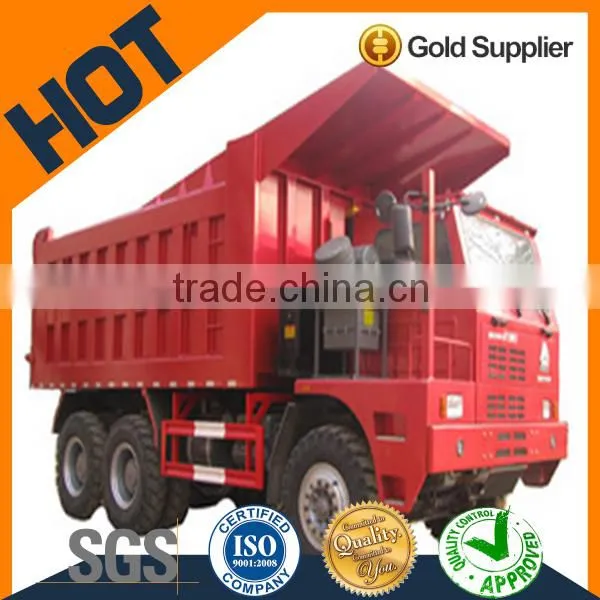

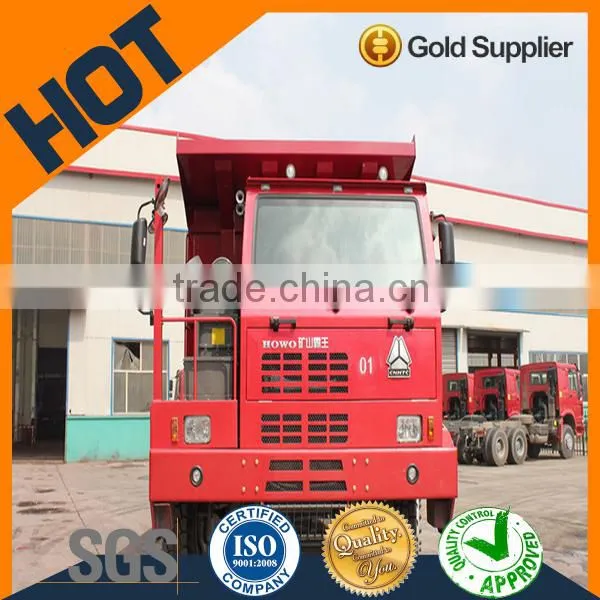

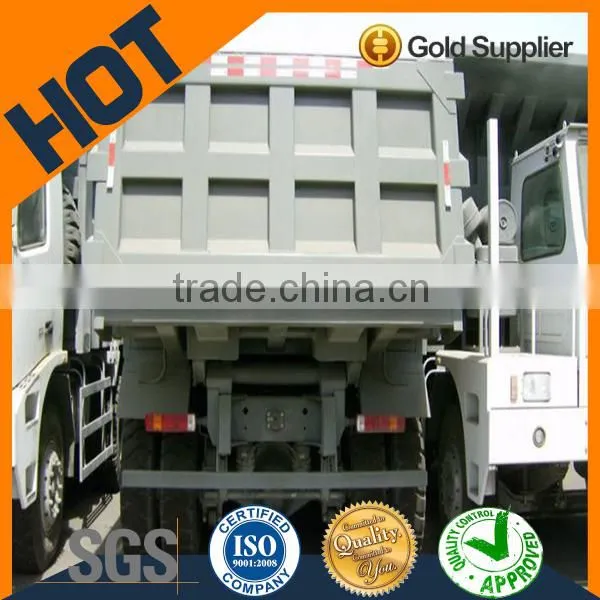

Prduct name: 23 ton heavy-duty widely used mining dump truck
Product Details
| Weight Parameter | Complete Vehicle Kerb Mass(kg) | 29300 | |
| Maximum authorized total mass (kg) | 70000 | ||
| Dimension Parameter | External Dimensions(mm) | Length | 8700, 8400 |
| Width | 3300 | ||
| Height | 4340 | ||
| wheelbase(mm) | 3800+1500,3600+1500 | ||
| Minimum Ground Clearance(mm) | 340 | ||
| Performance Parameter | Maximum Speed(km/h) | 50,60 | |
| Economical Speed(km/h) | 35 | ||
| Maximum Gradeability(%) | 42 | ||
| Turning diameter(m) | 19 | ||
| Recommended Configuration | Engine | Engine Type | WD615.96C |
| Rated power(kW)/Rev(r/min) | 279kW/2000rpm | ||
| Maximum Torque(N*m)/Rev(r/min) | 1590/1200~1500 | ||
| Transmission | HW19710,HW19710A | ||
| Clutch(mm) | 430A | ||
| Rear Axle | Type | AC26 | |
| Speed Ratio | 10.47/8.51 | ||
| Fuel Tank(L) | 500 | ||
| Chassis Cross-section(mm) | 380*120*10 | ||
| Suspension(Front,Back) | 18*12/25*15 | ||
| Tyre | 14.00-25,14.00R25 | ||
Factory Show
SINOTRUK produced China's first heavy-duty truck- Huanghe JN150 8t truck in 1960, and introduced a heavy-duty truck project from Steyr in 1983. After rapid development of many years, SINOTRUK has initially built an international platform through the red-chip listing in Hong Kong in 2007, forged a strategic partnership with MAN which holding a 25%+1 stake in SINOTRUK (Hong Kong) Limited in 2009, and introduced a series of technologies from the outside soon afterwards.
Nowadays, with overwhelming superiorities in technology and market, SINOTRUK has become China's largest heavy truck manufacturing base that has made a remarkable contribution to the development of China's heavy-duty truck industry and economic construction.
Why Choose Us
1. Why Choose Us?
We are officially authorized 4S dealer and exporter of SINOTRUK and offer brand new vehicles through regular channels.
2. Advantages:
a. Possess 13 Years' Industry Experience
b. Have Our Own Logistics Company
c. Have Senior Engineers with over 20 Years' Working Experience
d. Offer Operation and Maintenance Training
e. Have No Limit of Order Quantity
3.Value-added Services
a. Forty-five Predelivery Inspections
b. Export Brand New Vehicle with Clean Cab
c. Export Vehicle with Full Wax Protection
d. Reasonable Packing
Our Service
Certifications Display
Successful Case
Packaging & Shipping
FAQ
| Q: | How can we trust your company? |
| A: | We are the officially authorized 4S dealer and distributor of some famous brands such as SINOTRUK, LONKING and VOLVO. And we are registered in the Commercial Department of China, with the whole qualification for exporting. Certificates including ISO9001 can also be provided. |
| Q: | How about your warranty item? |
| A: | We can support you with original spare parts, and email or telephone assistance in the following days. If necessary, our experienced engineer can go abroad to your place for technical support. |
| Q: | How about your product quality? |
| A: | All our products are from the original manufacturers and the quality is 100% guaranteed. |
| Q: | How do you transport the trucks? |
| A: | There are optional transportation manners including RORO ship, bulk cargo ship, flat rack container, 20' container, 40' container, 40' HQ, 40' top open container, and LCL to meet your requirements. |
| Q: | Can I be your agent in my country ? |
| A: | It's OK if the order quantity is appropriate. We looks forward to long-term cooperation. |
