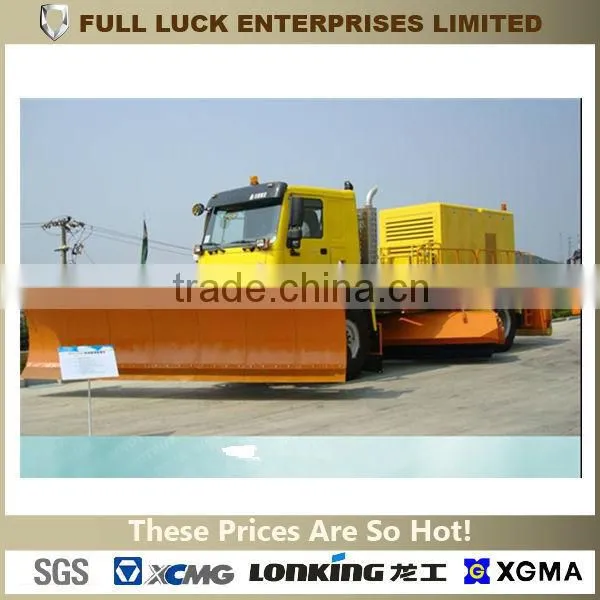

SNOW REMOVAL MACHINE
SNOW REMOVAL MACHINE
Performance Feature:
-The chassis is specially designed for snow remover, 275 kw engine, 4X4 wheel drive, ABS, engine can be started at -35C.
-The snow plough applies non-metal shovel which will not damage the surface of the runway. It is composed of 7 independent small ploughs; each small plough has a unique 4-connectin-rod obstacle avoidance mechanism. The other operations will not be affected while the obstacle avoidance is going on.
-The shaft of the roller brush is made of aluminum alloy; both ends of the shaft apply self-compensating coupling structure, which assures stable rolling of the shaft. The front & rear scrapers have clearance self-compensating function after the wear and tear of the brush bristles. The rolling speed of the roller brush and the transversal sweeping width of the brush bristle can be adjusted automatically according to the wear and tear degree of the brush bristles. The roller brush will constantly maintain at optimum sweeping condition, which avoid the ineffective wear and tear of the brush bristle can be adjusted automatically according to the wear and tear degree of the brush bristles.
-The operation system conforms to man-machine engineering principle with friendly LCD interface and easy operation.
-The complete vehicle applies PLC and “can” bus communication, which enables the operation system more intelligent.
Option:
-MP4 player
-Steel bristles of brush
-Reverse monitoring system
-Engine preheat start system
Safety features:
-Hydraulic oil low level protection
-Hydraulic oil high temp protection
-Six emergency switches on body
-Operating engine air filter block alarm
-Operating engine low oil pressure protection
-Operating engine coolant high temp protection
Specifications:
Max.remove snow thickness |
800mm |
Remove snow width |
4400mm |
Max working speed |
45km/h |
Max driving speed |
60km/h |
Plough width |
5500mm |
Rotary brush width |
4200mm |
Plough and Brush working angle |
±36° |
Remove snow capacity |
151000m2/h (speed 45 km/h) |
37750m3/h (speed 45 km/h 0.25 thickness) | |
Plough override protection |
60mm |
Blower air flow |
32000m3/h |
Blower air velocity |
120m/s |
Approaching/departure angle |
9°/7.5° |
Altitude above sea level |
<3500m |
Ambient temperature |
-40℃~+60℃ |
Total weight |
19000kg |
dimensions |
12400x5500x3700mm |
WGCX800J
Snow Remover
suitable for all type of aircrafts
.
FULL LUCK is one of the leading distributor and exporter on the trucks and construction equipment in China. Full luck cooperates with leading truck and construction equipment manufacturers and suppliers of brand name SINOTRUK & LONKING.
- After-sales Service
- In-house training and workshop
- Technical consultation service
- International Logistics Service
- Purchase solution
- Maintenance Program
- Sourcing service
- 54 items will be inspected including appearance, painting, welding, dimension, major assemblies and cabin.
-Road-testing including the working status of engine, transmission, hydraulic system, electrical system, light system, brake system and so on.
- Spare parts supply
