Home > Manufacturing & Processing Machinery > Crane > Truck Crane > China QY25K5-I XCMG 25 Ton Hydraulic Crane

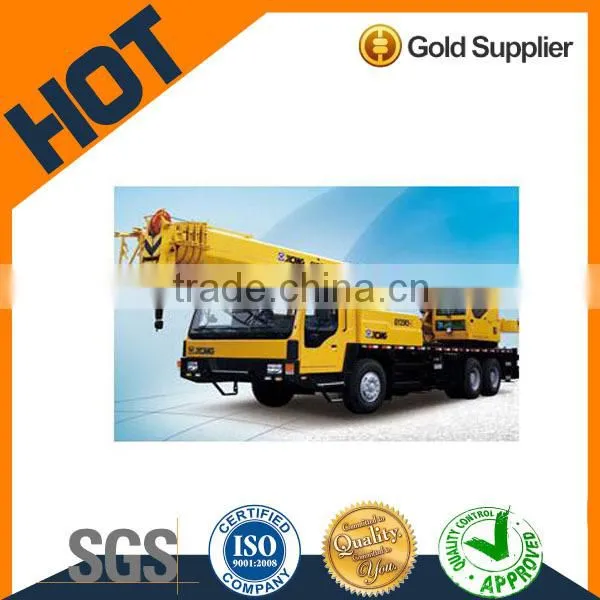

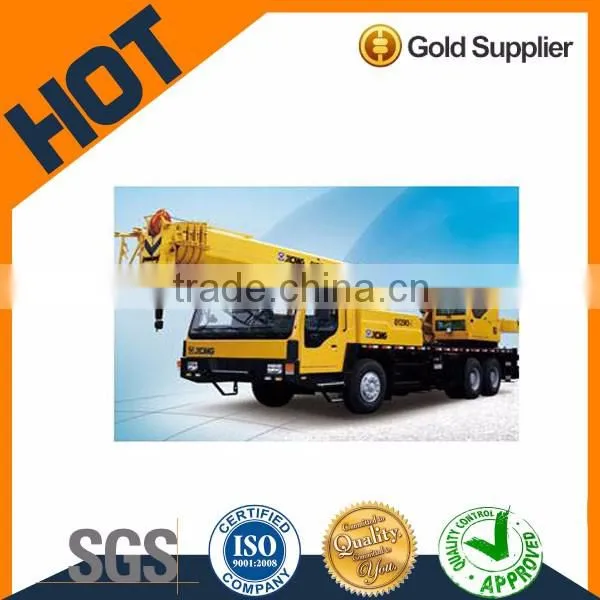

China QY25K5-I XCMG 25 Ton Hydraulic Crane

Name: China QY25K5-I XCMG 25 Ton Hydraulic Crane
Brand: XCMG
SKU: 131179331
Availability: InStock

China QY25K5-I XCMG 25 Ton Hydraulic Crane thumbnail-1

China QY25K5-I XCMG 25 Ton Hydraulic Crane photo-1

US$ 130,000 - 135,000 MOQ: 1 Unit

Key Specifications

Get Latest Price

Condition:

New

Application:

Construction

Rated Loading Capacity:

4~16TON

Contact Supplier Request Quote Chat Now

Full Luck Enterprises Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Application Construction

Rated Loading Capacity 4~16TON

Rated Lifting Moment 1764kN.M

Max. Lifting Load 25ton

Max. Lifting Height 50m

Span 7.6m

Brand Name XCMG

Model Number QY25K5-I

Certification ISO CE SGS

Warranty 24 Months

After-sales Service Provided Overseas service center available

Product Description

Dimension	Unit	QY25K5-I
Overall length	mm	12300
Overall width	mm	2500
Overall height	mm	3350
Weight
Total weight in travel	kg	31750
Front axle load	kg	6550
Rear axle load	kg	25200
Power
Engine model		SC8DK280Q3	WD615.329
Engine rated power	kW/(r/min)	206/2200	213/2200
Engine rated torque	N.m/(r/min)	1112/1400	1160/1400
Travel
Max. travel speed	km/h	80
Min. turning diameter	m	22
Min. ground clearance	mm	260
Approach angle	°	16
Departure angle	°	13
Max. grade ability	%	40
Fuel consumption for 100km	L	≈37
Main performance
Max. rated total lifting capacity	t	25
Min. rated working radius	mm	3000
Turning radius at turntable tail	m	3.065
Max. lifting torque	kN.m	961
Base boom	m	10.4
Fully extended boom	m	39.5
Fully extended boom+jib	m	47.8
Longitudinal outrigger span	m	5.14
Lateral outrigger span	m	6
Working speed
Boom luffing time	s	68
Boom full extension time	s	150
Max. swing speed	r/min	2.5
Max. speed of main winch (single rope) (no load)	m/min	125
Max. speed of aux. winch (single rope) (no load)	m/min	125
