Product detail
Features:
1, The optimizing layout of the machine makes the stress of the main bearing carriers more reasonable, and
the lifting performance is higher than the products with the same tonnage
2, The intensity and rigidity of the rotary table and frame structure with high rigidity are completely coordinated
3, The perfect integration of the design and structure realizes the automation of welding, which is more reliable
4, Optimize the stress design. Adopt the box-type outriggers which have larger span, stronger rigidity, and better stability
5, Apply the mature jib technique which integrates plug-in boom head, embedded boom block, and special telescoping mechanism, which makes the jib more stable and reliable

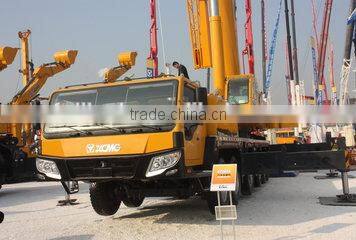

Popular XCMG 12 ton truck-mounted crane
| Project | Unit | Parameter |
| Parameter | - | QY12B.5I |
| Size | ||
| Overall length | (mm) | 10860 |
| Overall width | (mm) | 2500 |
| Overall height | 3110 | |
| Wheel base | (mm) | 4350 |
| Type base | (mm) | 2090 |
| Weight | ||
| Total weight | (kg) | 16000 |
| Axle weight | (kg) | 6000/10000 |
| Dynamic | ||
| Engine type | - | SC8DK230Q4 |
| Engine power rating | (kw/(r/min)) | 170/2200 |
| Engine rated torque | (N.m/(r/min)) | 900/1400 |
| Driving | ||
| Highest speed | (km/h) | 80 |
| Min. Stable speed | (km/h) | 3~5 |
| Turing | ||
| Min. Turing diameter | (m) | ≤18 |
| Min. Turing arm head diameter | (m) | ≤22 |
| Max. gradability | (%) | ≤41 |
| Min.clearance from the ground | (mm) | 268 |
| Approach angle | (°) | 20 |
| Departure angle | (°) | 12 |
| Braking distance | (m) | ≤10 |
| Fuel consumption for 100Km | (L) | ≤35 |
| Main Performance | ||
| Max. rated lifting weight | (t) | 12 |
| Min. rated amplitude | (m) | 3 |
| Max. lifting torque | (kN·m) | 465.5 |
| Turntable tail radius of gyration | (mm) | 2620 |
| Support legs | ||
| Longitudinal | (m) | 4.25 |
| Transverse | (m) | 5.2 |
