CDH-200-6L Drawing Facial Tissue Machine, V Fold Facial Paper Folding Machine, vacuum counting machine manufacturers , facial towel making machine,facial tissue,6 lanes facial tissue machine, V fold facial paper production line
Main Parameter:
Model | 6 lines |
Finished products size mm | 190 L*(180-220) W ( Length is fix) mm |
Production speed | 80m-90m/ min |
Unwinding roll diameter | Max 1100mm |
Unwinding roll width | 1140-1320mm |
Unwinding roll core diameter | 76mm |
Sheet counter device | Shifting fork counting |
Ring knives for slitting | 6 pieces/set |
Electric power | 380V,50Hz,3 Phase |
Main motor | About 20 KW |
Air pressure | 10kg/cm2 |
Vacuum | 22KW |
Embossing | Edge embossing roller |
Outside dimensions | 8010x 2300x 2600mm (L x W x H) |
Weight | About 9000 kg |

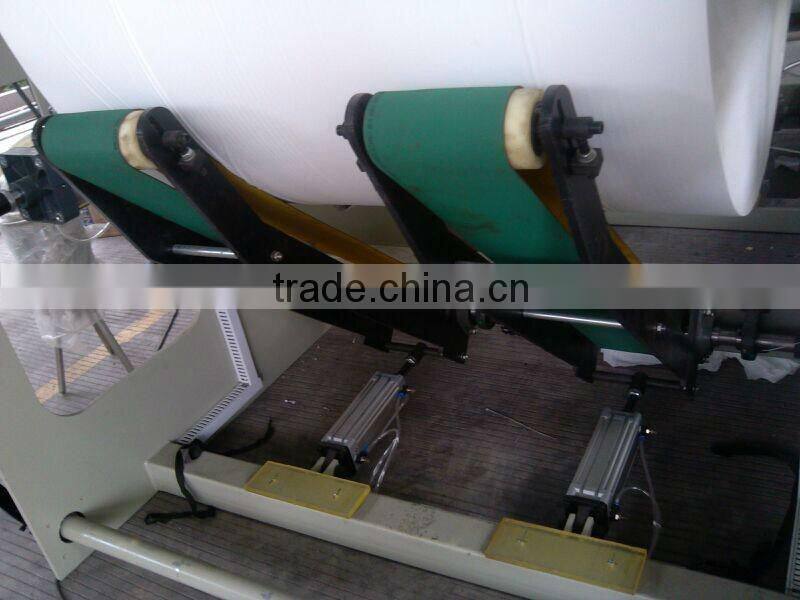

Pictures of machine part
Pictures of final products:
Features:
Count automatically and output in order.
Adopt helix cutter, and vacuum adsorption folding.
Adopt steeples adjusting speed to unwind which may fix different tension of raw papers.
Frequency conversion timing, PLC control.
The width of tissue can be adjusted, it can large demand by the customer.
Certificate:
CE
Pictures of our company:
Welcome to inquiry and welcome to our factory.
My skype: carry383
