CDH-200-2 Box-drawing facial tissue machine
1.Main Technical Parameter
Production speed 60-100m/min)×2
Production open size(mm) 200(L)×130-210(W)(can be adjust)
Production folded size(mm) 100(L)×130-210(W) (can be adjust)
Power 2.2Kw
Vacuum air blower 5.5Kw(380V 50Hz)
Overall size(m) 4.1×1.3×2.1(L*W*H)
Weight 1800kg
2.Function and Feature
Count automatically and output in order
Adopt screw turning knife to cut and vacuum absorption to fold.
Adopt steeples adjusting speed to unwind which may fix different tension of raw paper.
Control pneumatic with electric easy to operate.
Tissue papers width can be decided by customers in a certain range
3.According to the request of customers

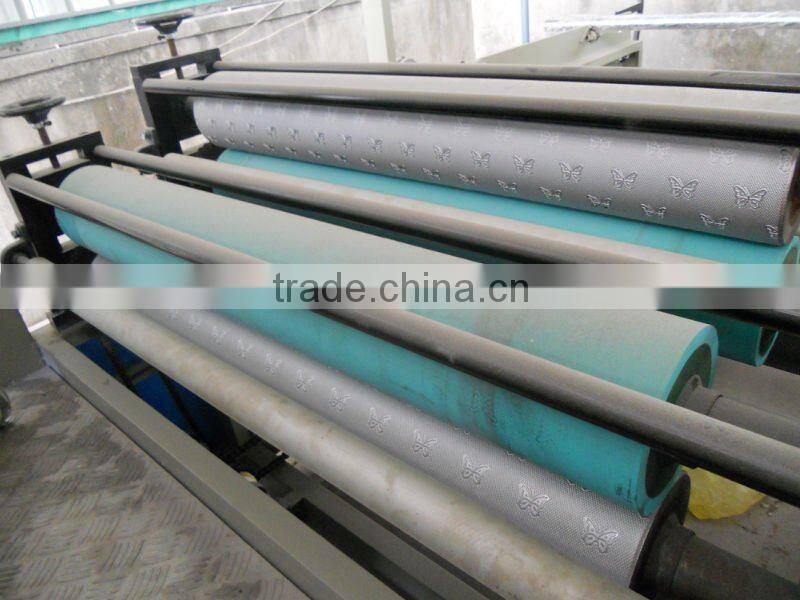

Equip embossing unit.(clear embossing design)
Equip two-color printing unit.(nice printing design)
4.The machine parts and figure
Functions and features
1. Automatic counting sub-bit row of output;
2. Screw shear knives, vacuum folding;
3. Variable speed unwinding, can be adapted to base level of tension;
4. Electronically Controlled Pneumatic, easy to operate;
5. Product width can be adjusted to facilitate marketing;
6. Matching pattern paper rolling device, the pattern is clear, flexible and market demand. (Pattern set by the select guests)
7. Matching color flexographic printing equipment, colorful patterns.
