Modular Polyurethane cold stoage with monoblock compressor
We design and manufacture different size of cold room with different temeprature ranges to meet client's actual need.The cold rooms are made up of pieces of polyurethane insulation panels with cam lock system, easy to assemble, konck-down type to make it save the shipping space and cost saving!
(Cold Room Structure)
Specification
Dimension |
Length (m) *Width (m)*Height (m) |
Panel |
polyurethane insulation panel,43kg/m3, fire retardant |
Foaming material |
BASF |
Panel thickness |
50mm,75mm,100mm,150mm,200mm |
Steel cover |
stuccom embossed aluminum,painted galvanized steel,stainless steel,PVC steel |
Panel connection |
cam lock type, use hexagonal key to assemble and disassemble |
Type of door |
hinge door, convex door, sliding door |
Temp.of room |
-45~+20 degree, optional |
Purpose of cold room |
fruit,vegetable,flower,fresh/frozen meat etc |
Refrigeration unit |
Copeland / Bitzer / Sanyo etc |
Refrigeration type |
air cooled / water cooled |
Fittings |
all necessary fittings are included, optional |
Place to assemble |
indoor/out door(concrete construction building/steel construction building) |
Voltage |
220V/50HZ, 220V/60HZ, 380V/50HZ optional |
Feature
1)cold room panels are of 100% polyurethane insulation,which are constructed by being foamed in place with retarted polyurethane using high pressure

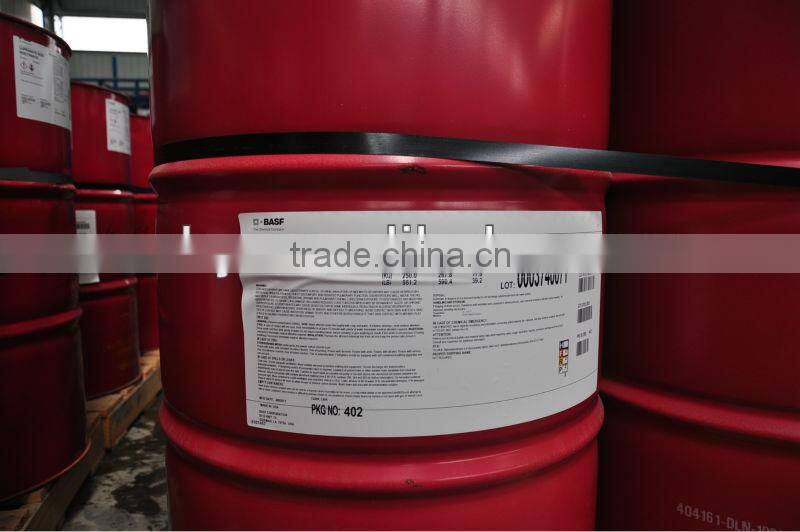

2)all polyurethane panels are injected with BASF foaming material, added with flame retardant while foaming!

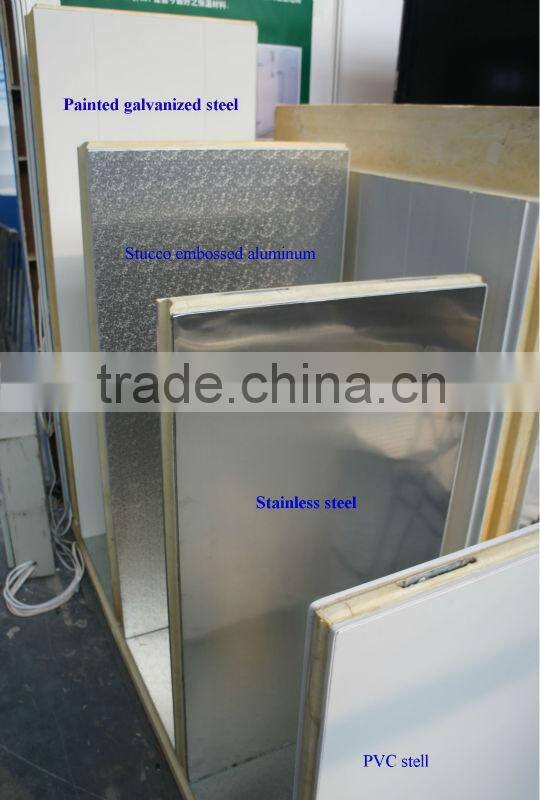

3)steel finish of cold room panel: stucco embossed aluminum,stainless steel ,painted galvanized steel
4) PU panel thickness depends on the operating temperature of the room
Pu Panel thick Operating Temperature
50mm +5 degree C or above
75mm -5 degree C or above
100mm -25 degree C or above
150mm -45 degree C or above
200mm -55 degree C or above
5)standard hinge door,convex door and sliding for your option

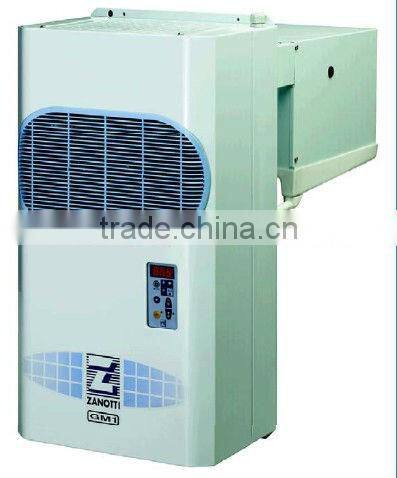

6)refrigeration unit: Monoblock compressor, compressor brand optional:Zanotti, Copeland, Bitzer etc.

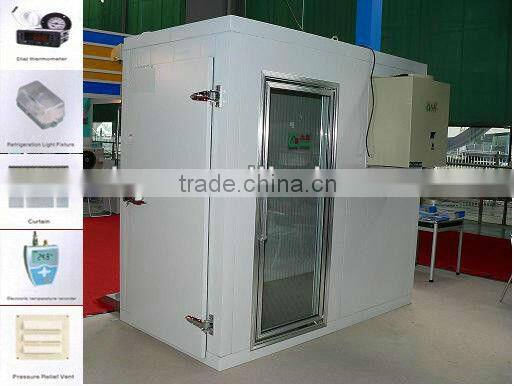

8)with fittings of pressure relief vent,control box,light,copper pipe,wires,drainage etc.
Projects of walk in freezer we made before

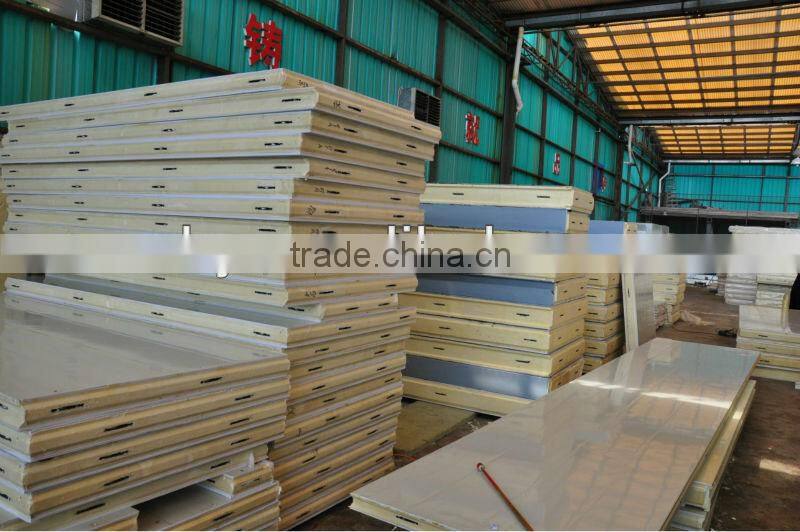

(Workshop-imported injection machine--BASF material to foam polyurethane panels for cold room )
(Workshop-imported pressure plate---foaming the polyurethane panels for cold room )
Exhibition in Nuremberg, Germany in October 2012
CHILLVENTA 2012
