J:CDH-3N(PU) Pull Up Diaper Compound Machinery

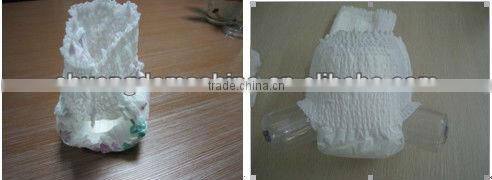

The finished production made by our machine:
lLower investment, not need to buy big machine, can have pull up diaper production.
lThe machine is very easy to operate. Less labor required for the machine. And lower cost for the finished production.
lCan make the diaper nappy to become pull up diaper.
1. Workflow of the machine:
Elastic Ribbon
↓
Non-Woven Fabrics→Compound
↓
Baby diaper nappy→Compound→Cut off→finished production ( Pull Up Diaper)
↑
Non-Woven Fabric→Compound
↑
Elastic Ribbon
2. Power of machine: 3 phase 380V 50HZ
3. Total power of the machine: 30kw
4. Suitable material: Non woven, Elastic Ribbon, Hot melt
5. Production size: 340mm, 370mm, 420mm (can make in customer’s requirement)
6.. Product speed: 60 pcs per min ( steady speed)
7. Function: make the diaper nappy to become pull up diaper.
8. Machine size: 6200*1500*2600mm (L*W*H)
9.. Weight: about 2800 Kg
10.The hotmelt applicators made by NDC in China ( or you can choose the brand)
(1) Hot melt applicator 1(20kg): two sets 180mm width fiber nozzle applied on the elastic thread of the waist band, two sets 120mm width slot-coat nozzle applied on the pad laminating.
(2) Hot melt applicator 2(5kg): one set 50mm width slot-coat nozzle applied on the cover nonwoven. One set 50mm width slot-coat nozzle applied on waist band laminating.
(3) One set control system of hot melt phase.
