Polyurethane insulated cold room panel with cam lock connection
Modular polyurethane cold room panel are made of modular fabrication with polyurethane insulation with different dimensions, which make it flexible for construction different sizes of an ideal cold storage room. The modular design allows for easy assembly and disassembly. All panels are injected with 100% polyurethane with an average density of 40KG/M3 firmly glued to the metal, which has a variety of finishes available to meet the customers specific requirement.
The standard size of width is 1183mm,the longest length is 12m,can do any size.
R141a vesicant

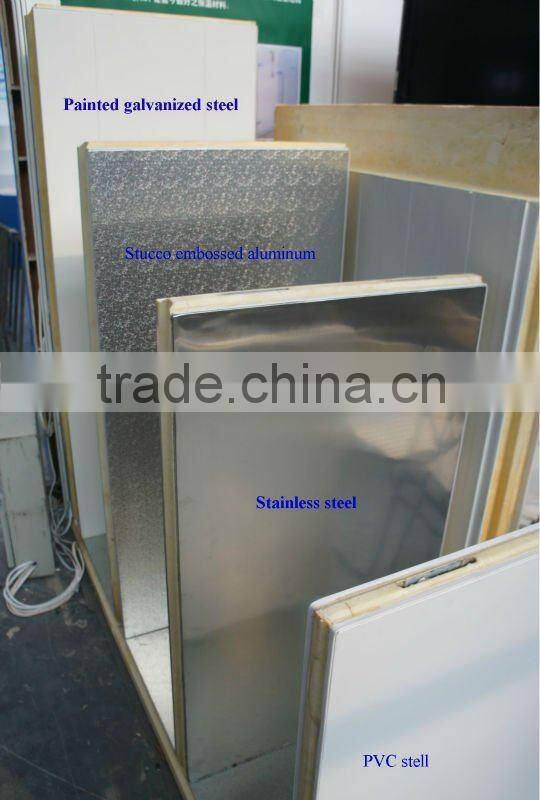

1. Steel finish for the cold room panel
A.Stucco embossed aluminum
B.Stainless steel
C.Painted galvanized steel
D.PVC steel
2. The thickness for the cold room panel
Panel THK(mm) Operating Temp.
50mm 5 degree C (or above)
75mm -5 degree C (or above)
100mm -25 degree C (or above)
150mm -45 degree C (or above)
200mm -55 degree C (or above)
3.Cam lock connectted, use hexagonal key to assemble
4.Gasket at the joint of two panel to have a better air tightness.

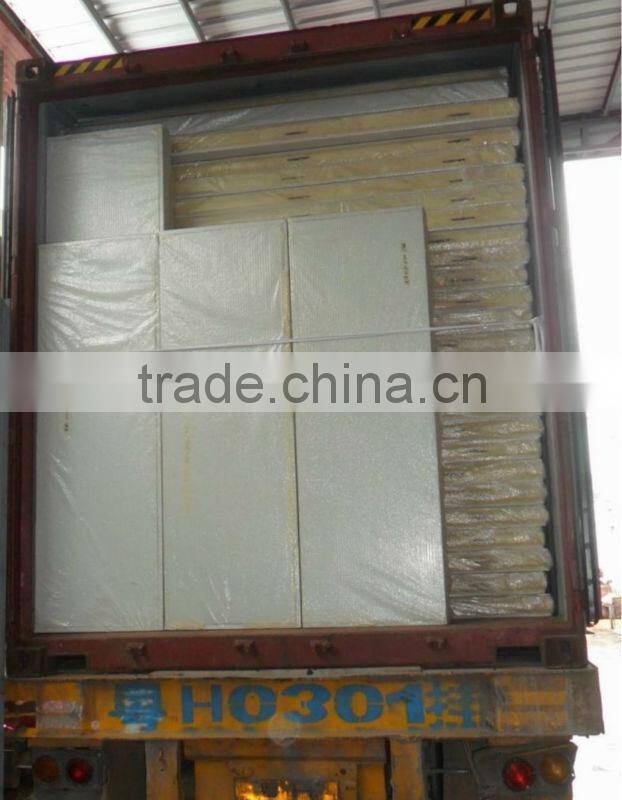

5.Packing : PE film + bubble paper , well protect the panels and space saving for loading

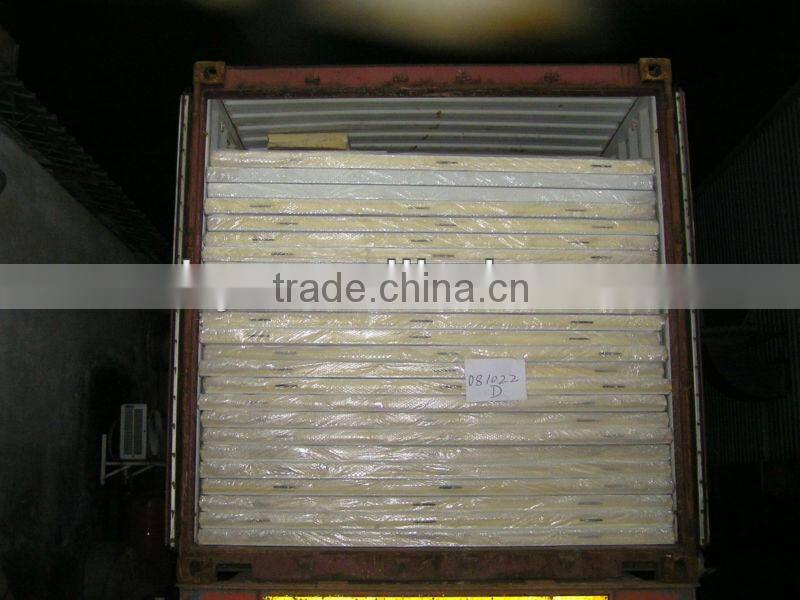

6.Loading
CHILLVENTA 2012
