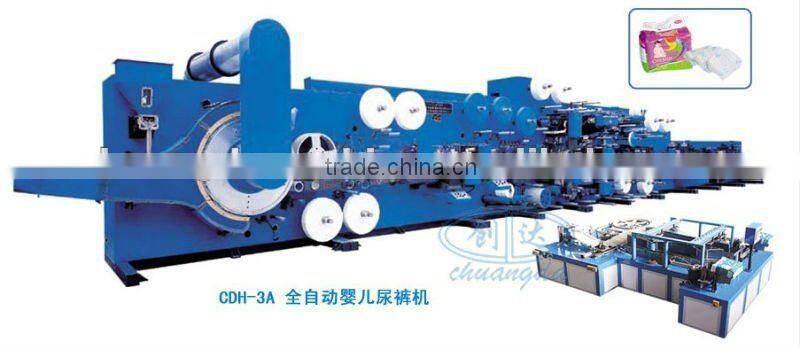

Machine Manufacturing Baby Diapers

Specifications

machine manufacturing baby diapers

1. Main Technical Parameter:

Designed production speed: 300-400 pieces/min

Stable production speed:350 pieces/min

Machine power:380V 50Hz

The machine capacity:130 KW (including glue applicator power)

Wasted products rate≤2%(excluding the circumstances when hot melt applicator breaks down or exchange material.)

The product specification:S,M,L,XL

Overall size (excluding crusher):19m*1.6m.3.1m(L*W*H)

Weight of equipment:25Ton

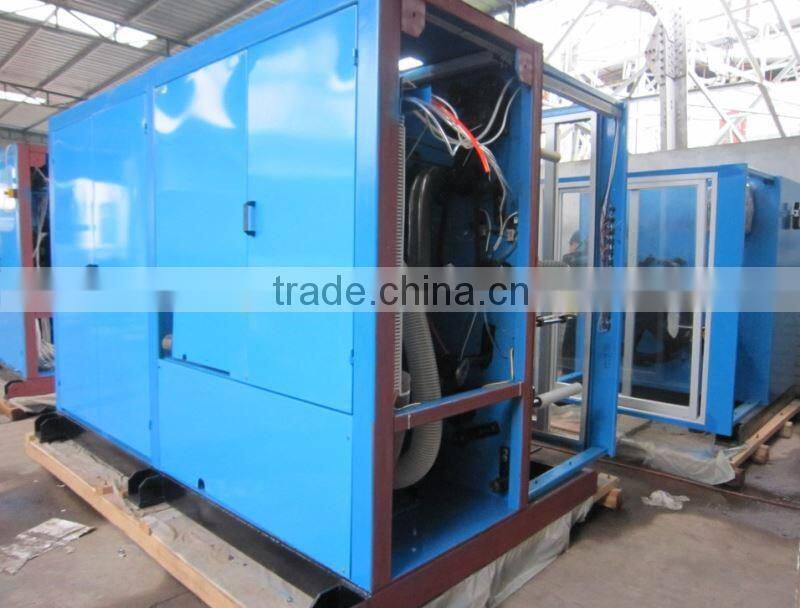

1. Basic assembling unit

--This machine is controlled by PLC with touch-screen, automatic reject waste material

--Hammer type crusher can take untreated pulp,semi-tread pulp and treated pulp, with long-distance button to adjust wood pulp supplying amount.

--The frame is made by reasonable and excellent square steel.

--cotton core is formed in one lane net wheel,cotton core consist of two tissue paper with one ply wood pulp in the center.

--SAP and wood pulp are mixed with SAP spraying amount can be adjusted by long-distance button.

--Embossment is conducted on cotton core with embossing pattern normally in net square type.moreover,embossment shape can be produced by customers’ requests.

--it is lining with guide-flow N.W. fabric unit.

--cotton core is cut off by cutter.

--with protection-leakage unit,hot press style.

--with elastic waistline unit.

--with left and waist tape adding unit to adjust the gap to incorporate with the different widths of L,M,S production.

--With frontal Tape unit.

--Machine is with elastic rubber band unwinding unit, among them, them pieces of elastic bands are equipped in two sides of cotton core,while two pieces of elastic bands are equipped in two sided of protection-leakage.

--products are with arc-cutter.

--products are vertically hold, cut and molded after compressing.

--products are horizontally three folded or two folded.

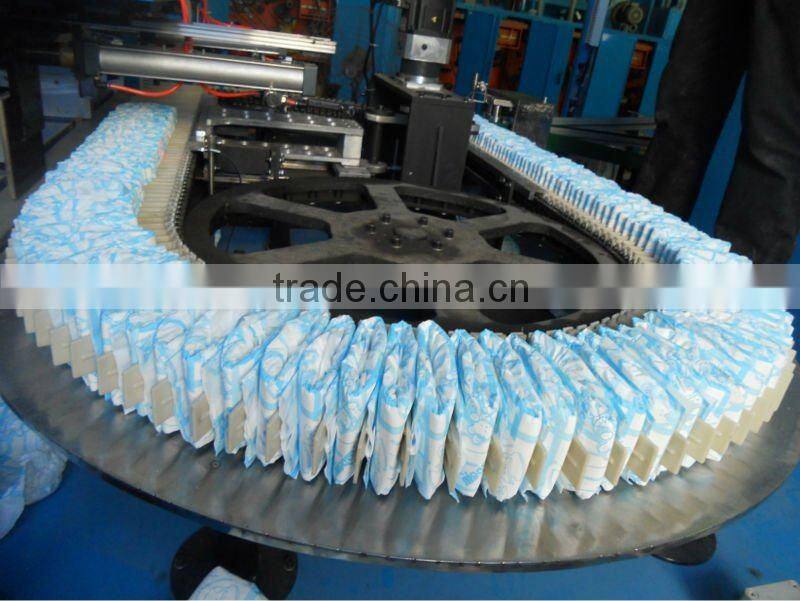

--products are output in alignment.

--wind pipes are PV

--core body cut,the use of universal joints transmission.

--N.W Fabric cutting.

--Rubber supply.

--N.W Fabric hem.

--Diversion layer polyethylene funerals transfer.

--Three-piece pressure combined.

--Protection leakage

--Separation and collection of waste materials box.

--motor system

--stopping installation.

--Motor system:main axle, universal shaft driving, gear case, synchronous belt, driving from is shaft coupling+ close gear case +synchronous belt.

--The main transmission shaft is using universal Joints shaft coupling.

--The main transmission shaft diameter 45.

--other configuration features: jetting glue Department with Lights, transmission equipped with maintenance.

--with counter.

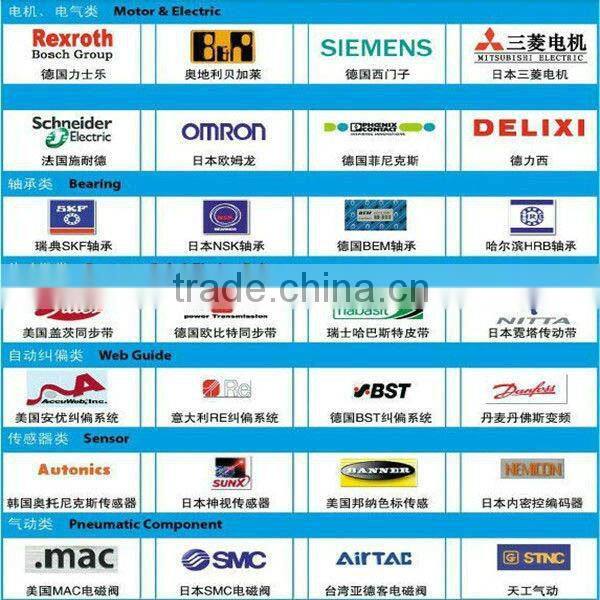

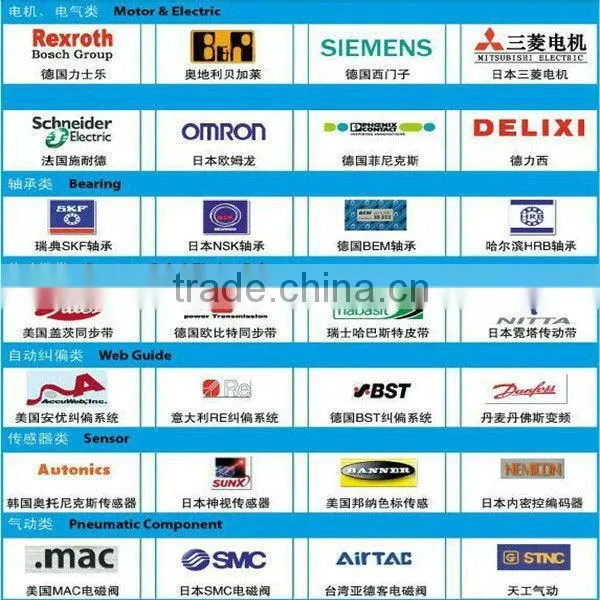

3.Major parts suppliers:

--Main drag transducer used Japanese Mitsibushi

--Transducer used Mitsibushi control.

--Cullerry, the united states D2 raw materials.

--- PLC by Japan Mitsibushi brand

----servo motor by Japan Mitsibushi brand

4. Spare parts:

-- Glue applicator 3 sets

-- Flat-cutter 2 sets

-- other easy-break parts.

--operation manual
