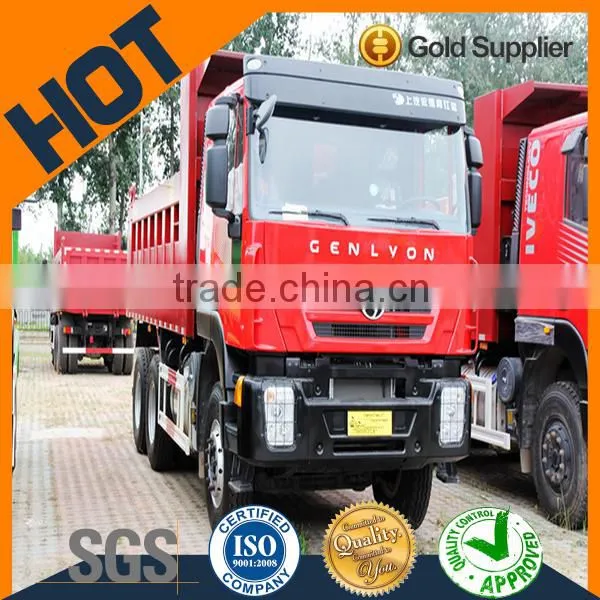

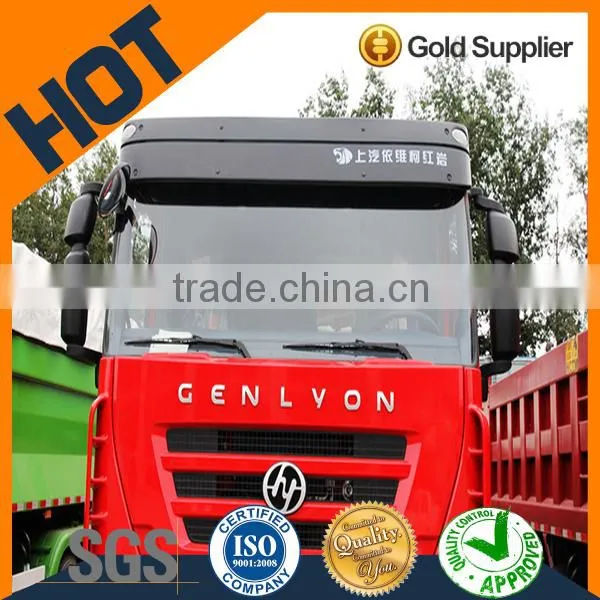

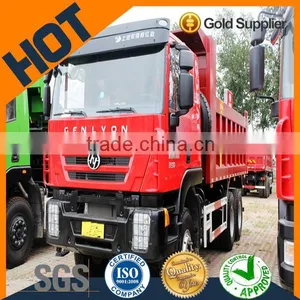

Help CenterChina IVECO New Design HYVA Dump Truck
Related Products
-
IVECO 6*4 Left Hand Drive Truck HeadUS$ 41,000 - 44,000MOQ: 1 Unit -
Kingkan 8*4 Euro 3 Hot Selling Cargo TruckUS$ 47,500 - 49,000MOQ: 1 Unit
-
Hongyan Kingkan New Design 8*4 Euro 3 Dump TruckUS$ 50,000 - 59,000MOQ: 1 Unit
-
Hongyan 6*4 Flat-roof 25 Ton Cargo TruckUS$ 46,000 - 50,000MOQ: 1 Unit
-
IVECO New Design 6*4 Reliable Truck HeadUS$ 41,000 - 44,000MOQ: 1 Unit
Characteristics of the Product

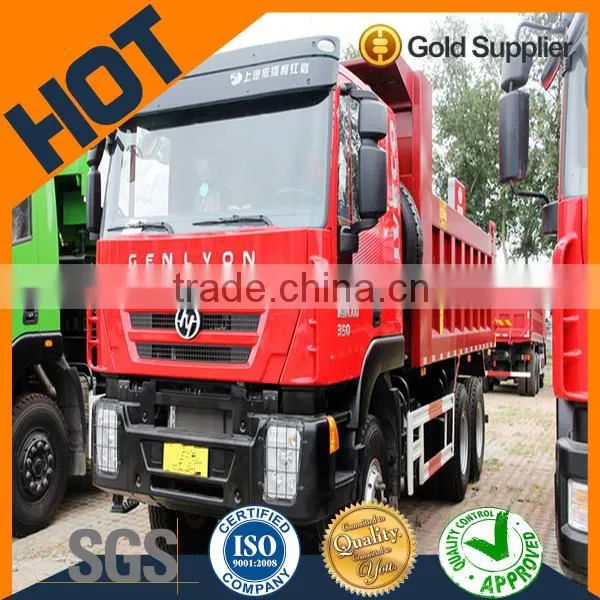

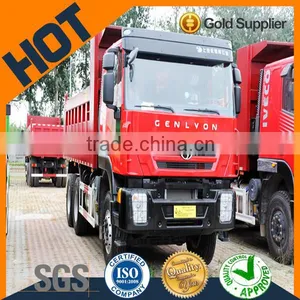

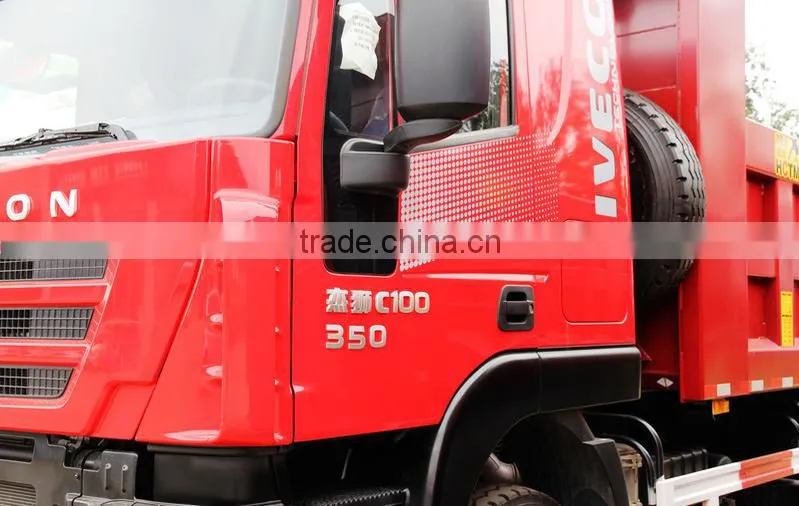

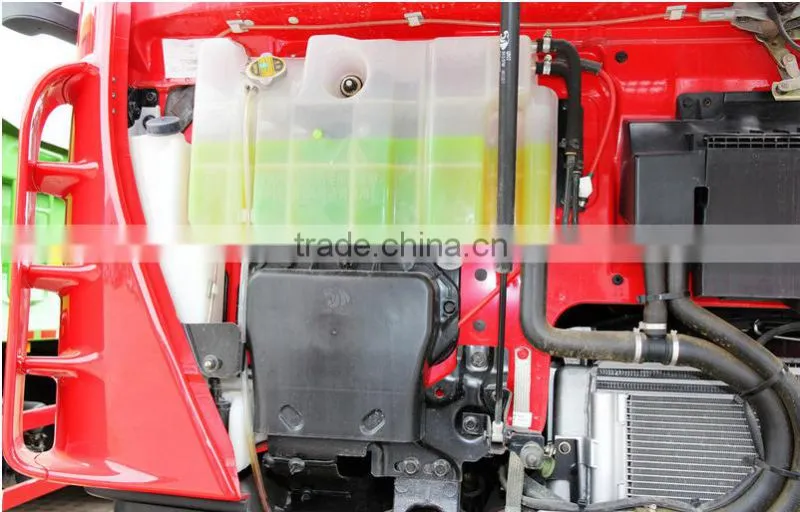

Prduct name: China IVECO new design HYVA dump truck
Product Details
| Model | Genlyon CQ3255HTG384 | ||
| Driving type | 6*4 | ||
| Weight(kg) | Gross vehicle weight | 25000 | |
| Curb weight | 12030 | ||
| Payload at gross vehicle weight | 12840 | ||
| Overload range of gross vehicle weight(road condition) | <65000 complex road | ||
| Overall demensions(mm) | Wheelbase | 3800+1400 | |
| Overall length | 8420 | ||
| Cab width | 2500 | ||
| Cab Height(unladen) | 3460 | ||
| Front overhang | 1435 | ||
| Rear overhang | 1785 | ||
| Min. ground clearance | 280 | ||

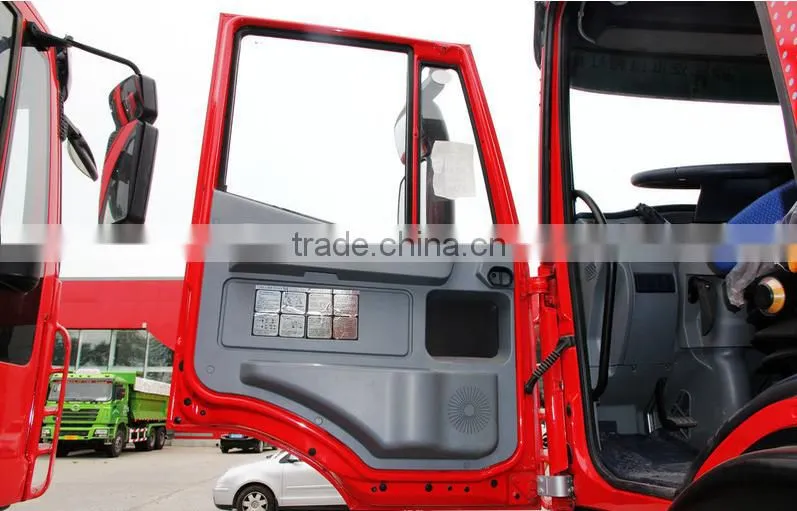

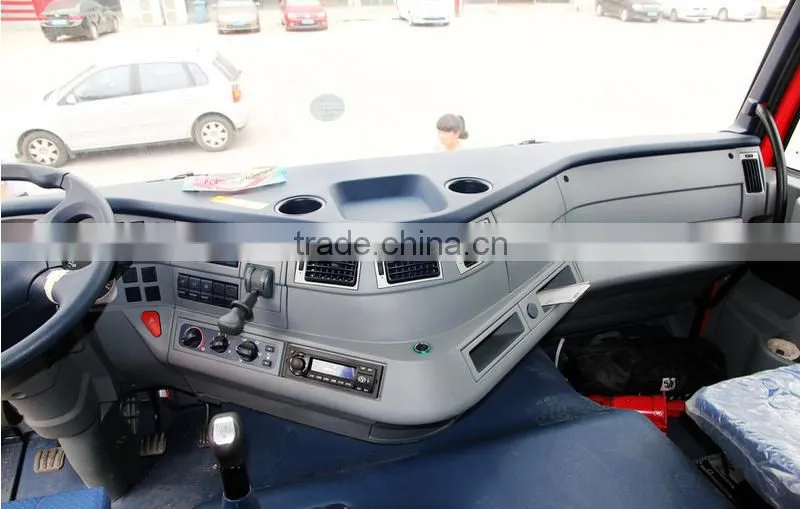

| Cab | Type | Flat-roof, A/C with sleeper, manual tilt | |
| Suspension | Mechanical suspension | ||
| Driver seat | Adjustable seat | ||
| Engine | Model | SFH® Cursor 9F2CE3681E×P made by SAIC-FIAT Powertrain Hongyan Co.,Ltd | |
| Cylinder( in line) | 6 | ||
| Capacity | 8709ml | ||
| Turbocharger | Inter-cooling | ||
| Max. power (hp/kw)@rpm | 390hp/287kw@2100rpm | ||
| Max. torque(Nm)@rpm | 1590Nm@1270rpm | ||
| Emission regulation | Euro 4 | ||
| Cooling fan | 2 shifts eletro-magnetic | ||
| Fuel system | BOSCH® unit pump injector | ||
| Gearbox | FAST® 12JSD180T 12 forward shifts and 2 reverse shifts with full synchronizers with Eaton Fulller technology | ||
| Suspensions | Front | Parabolic leaf | |
| Shock absorbers | 2 on front | ||
| Rear | Semi-elliptic leaf | ||
| Steering | ZF® 8098 power assisted | ||
| Axles | Type | Hongyan exclusive high-performance twin-reduction casting steel axle | |
| Loading | Front 9T, Rear 20T+20T | ||
| Hub reduction | Available | ||
| Differential lock | Cross and inter axle | ||
| Fuel tank | 350L steel with lockable fuel cap | ||

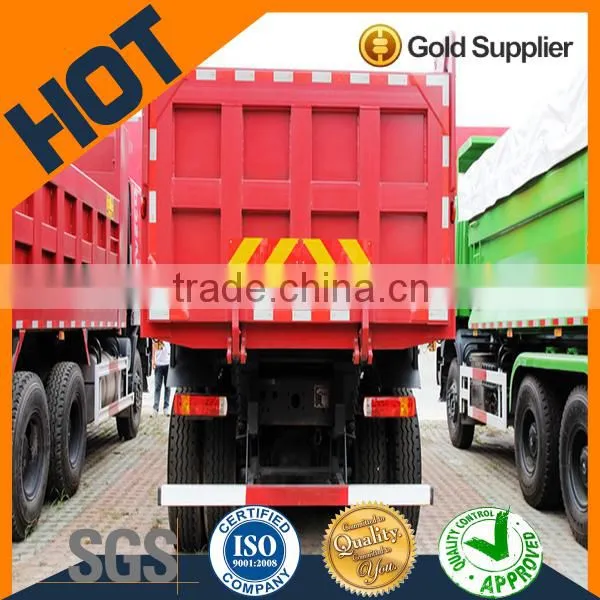

| Cargo body | |||
| Type | Rectangle reinforced body (more optional body type available refer to using environment) | ||
| Length(mm) | 5600 | ||
| Width(mm) | 2300 | ||
| Height(mm) | 1500 | ||
| Bottom thickness(mm) | 12 | ||
| Side thickness(mm) | 8 | ||
| Lifting systemand type | HYVA®, front lifting | ||
| Optioal | |||
| Engine | Cursor engine 290hp, 310hp, 350hp, 390hp | ||
| Wheelbase(mm) | 3300+1400, 3600+1400, 4000+1400, 4200+1400, 4400+1400, 4700+1400, 5000+1400 | ||
| Cab | 1. High roof 2. Auto tilting 3. Automatic heating rearview mirror 4. Air-suspension 5. Pneumatic seat | ||
Factory Show
SINOTRUK produced China's first heavy-duty truck- Huanghe JN150 8t truck in 1960, and introduced a heavy-duty truck project from Steyr in 1983. After rapid development of many years, SINOTRUK has initially built an international platform through the red-chip listing in Hong Kong in 2007, forged a strategic partnership with MAN which holding a 25%+1 stake in SINOTRUK (Hong Kong) Limited in 2009, and introduced a series of technologies from the outside soon afterwards.
Nowadays, with overwhelming superiorities in technology and market, SINOTRUK has become China's largest heavy truck manufacturing base that has made a remarkable contribution to the development of China's heavy-duty truck industry and economic construction.
Why Choose Us
1. Why Choose Us?
We are officially authorized 4S dealer and exporter of SINOTRUK and offer brand new vehicles through regular channels.
2. Advantages:
a. Possess 13 Years' Industry Experience
b. Have Our Own Logistics Company
c. Have Senior Engineers with over 20 Years' Working Experience
d. Offer Operation and Maintenance Training
e. Have No Limit of Order Quantity
3.Value-added Services
a. Forty-five Predelivery Inspections
b. Export Brand New Vehicle with Clean Cab
c. Export Vehicle with Full Wax Protection
d. Reasonable Packing
Our Service
Certifications Display
Successful Case
Packaging & Shipping
FAQ
| Q: | How can we trust your company? |
| A: | We are the officially authorized 4S dealer and distributor of some famous brands such as SINOTRUK, LONKING and VOLVO. And we are registered in the Commercial Department of China, with the whole qualification for exporting. Certificates including ISO9001 can also be provided. |
| Q: | How about your warranty item? |
| A: | We can support you with original spare parts, and email or telephone assistance in the following days. If necessary, our experienced engineer can go abroad to your place for technical support. |
| Q: | How about your product quality? |
| A: | All our products are from the original manufacturers and the quality is 100% guaranteed. |
| Q: | How do you transport the trucks? |
| A: | There are optional transportation manners including RORO ship, bulk cargo ship, flat rack container, 20' container, 40' container, 40' HQ, 40' top open container, and LCL to meet your requirements. |
| Q: | Can I be your agent in my country ? |
| A: | It's OK if the order quantity is appropriate. We looks forward to long-term cooperation. |
