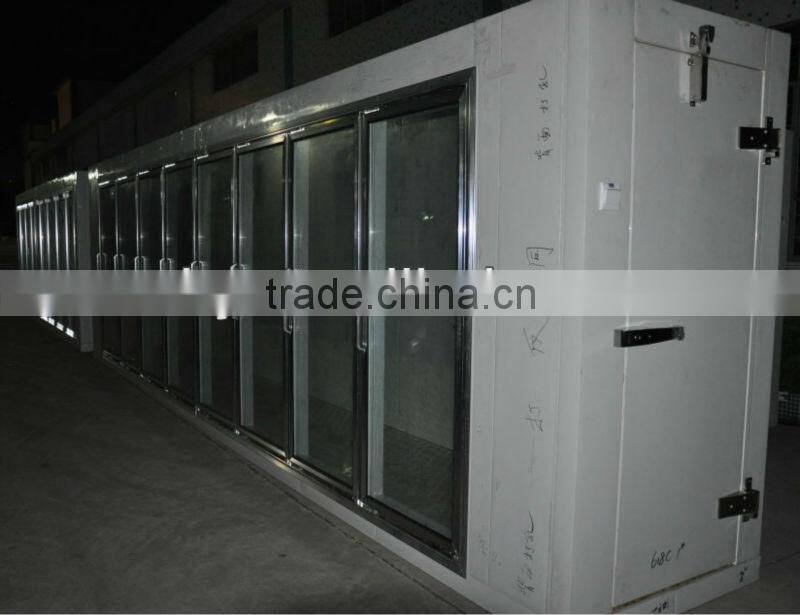

walk in cooler for beverage dispay
we are a professional manufacturer,which help our clients to customize the walk in cooler .Pls answer us the following questions. Tks!
1.Which country the walk in cooler located?
2. walk in cooler being installing inside the building or putting outside the house?
4.External dimension of the walk in cooler ?(m)
5.What Kind of products is gonna store in the room?
6.Required temperature inside the walk in cooler (°C)?
7.How much kilograms of products put in walk in cooler per once(kg/once)?
9.what kind of door your require? Hinged door,manual/electric sliding door or glass door?
walk in cooler Components:
1.panel:polyurethane insulation panel foam by high pressure,with fire retardant,density about 43kg/m3,panel thickness 100mm/150mm/200mm
2.Side door: convex door / hinge door,with safety knob for opening the door inside.
ndensing unit:Bitzer,Copeland etc.
4.evaporator:branded air cooler
5.Danfoss expansion valve
6.Dachang control box
7.other accessories:pressure relief vent,copper pipe,light and switches,drainage system etc.
Dimension |
According to client's requirement . |
Panel |
polyurethane insulation panel,43kg/m3, fire retardant |
Foaming material |
BASF |
Panel thickness |
100mm/150mm |
Steel cover |
painted galvanized steel |
Panel connection |
cam lock type, use hexagonal key to assemble and disassemble |
Type of door |
hinge door |
Temp.of room |
2~+8 degree, or optional |
Purpose of cold room |
to store fruit,vegetable, beverage |
Refrigeration unit |
Copeland compressor |
Refrigeration type |
air cooled |
Fittings |
all necessary fittings are included, optional |
Place to assemble |
indoor/out door(concrete construction building/steel construction building) |
Voltage |
220V/50HZ, 220V/60HZ, 380V/50HZ ,110V/60HZ optional |
walk in cooler panel Testing Specification
| No. | Inspection Item | Unit | Technology requirement | Inspection result |
| 1 | Density | kg/m3 | 32~50 | 43 |
| 2 | Compressing strength(10%deformation) | Kpa | ≥ 160 | 200 |
| 3 | Bending Stregth | Kpa | ≥ 245 | 331 |
| 4 | Absording rate | % | ≤ 4 | 3 |
| 5 | Heating coefficient | W/m.k |
0.024 | 0.021 |
| 6 | Average burning time(vertical) | S | ≤ 30 | 3 |
| 7 | Average burning height(vertical) | s | ≤ 250 | 250 |
our panel advantage :
1. Our panel foaming material is Italy Brand BASF . The whole panel average density above 40kg/m3 which enable the panel with better thermal conductivity of 0.021W/(m.k). The national standard is 0.024W/(m.k), which mean our panels will save the energy consumption of 12.5% than national standard.
2.All the panels we produce are with fire retardant, self extinguish, Fireproofing Grade is B1. It refers to the safety problem.
3.The steel sheet we purchase from Baosteel and POSCO which are the biggest steel factories in the world, they promise the painted galvanized steel they produce will not fade in 15~20 years

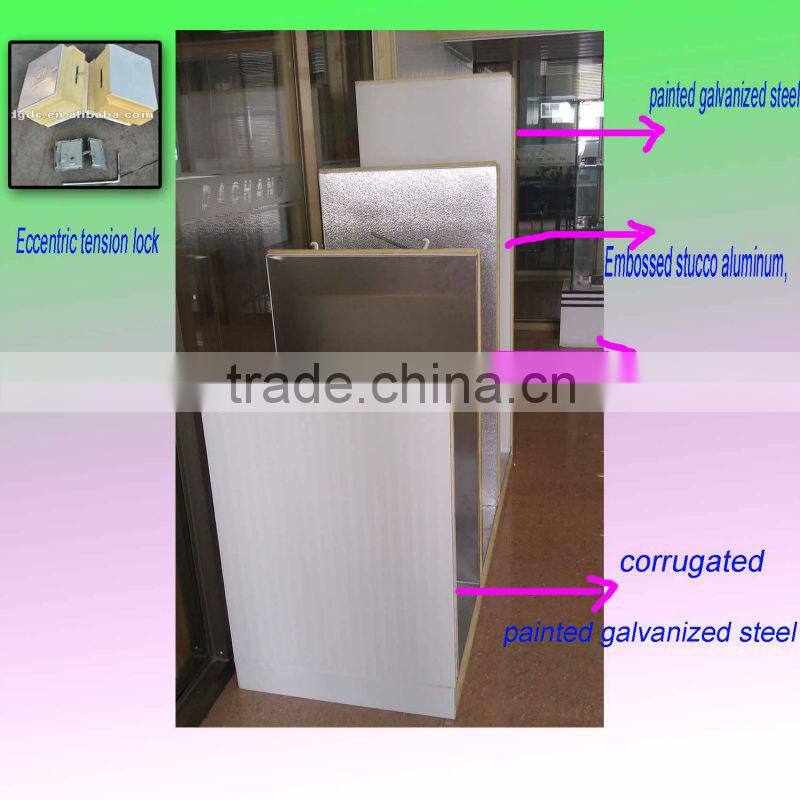

Gasket is around the edge of each walk in cooler panel , when panel lock together,the cool air will not leak,and the hot air can not come in .

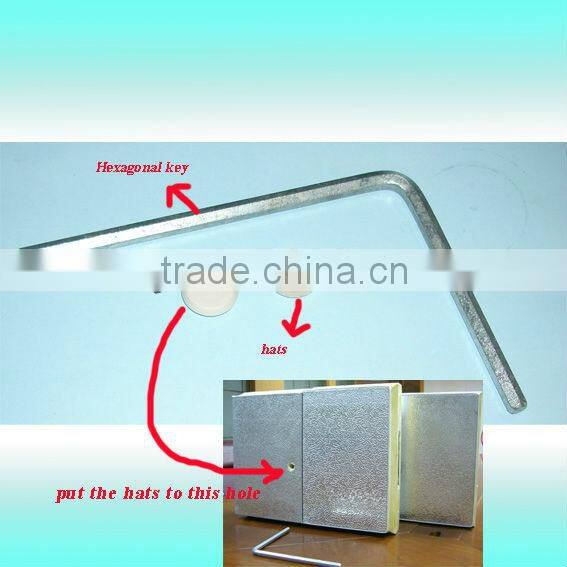

walk in cooler Installation tool:hexagonal key

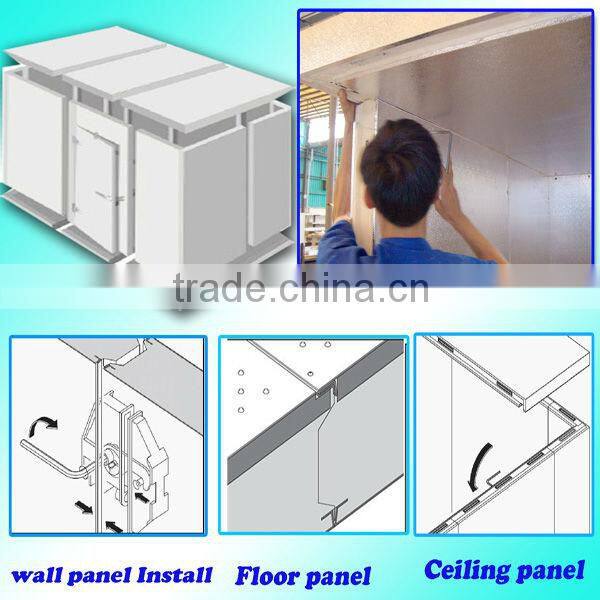

Every panel is male (convex) and femal(concave) type,cam locks are pre-burried inside the panels,use a key to lock them together.

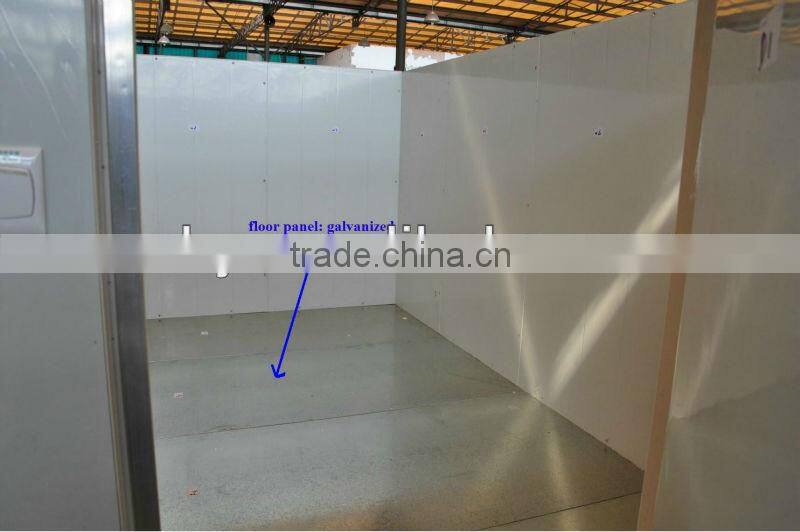

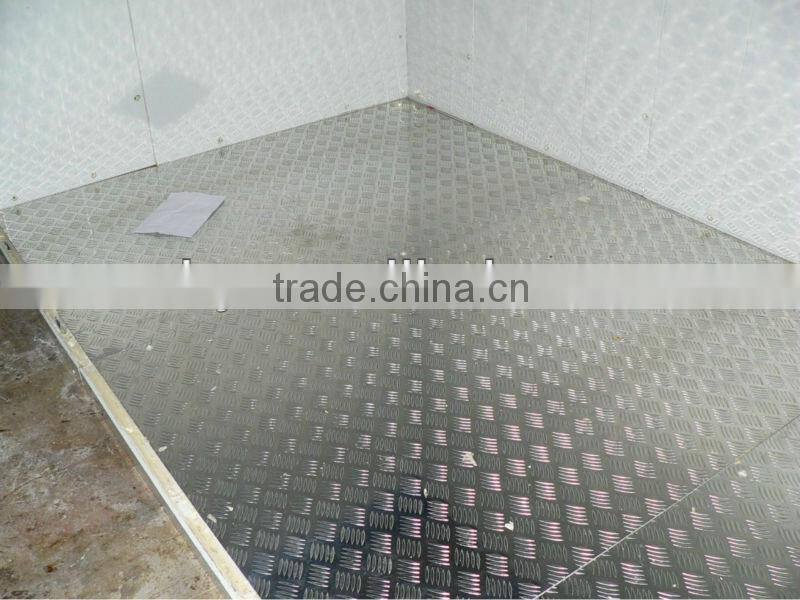

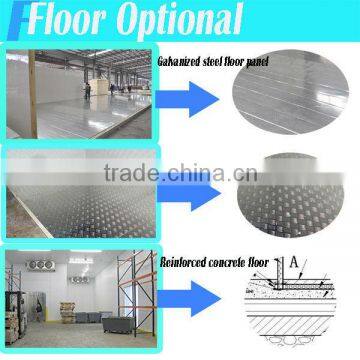

walk in cooler floor:
can do the Galvanized steel PU Panel floor or skidproof floor
The Pu panel floor can bear 250kg/m2
skidproof floor

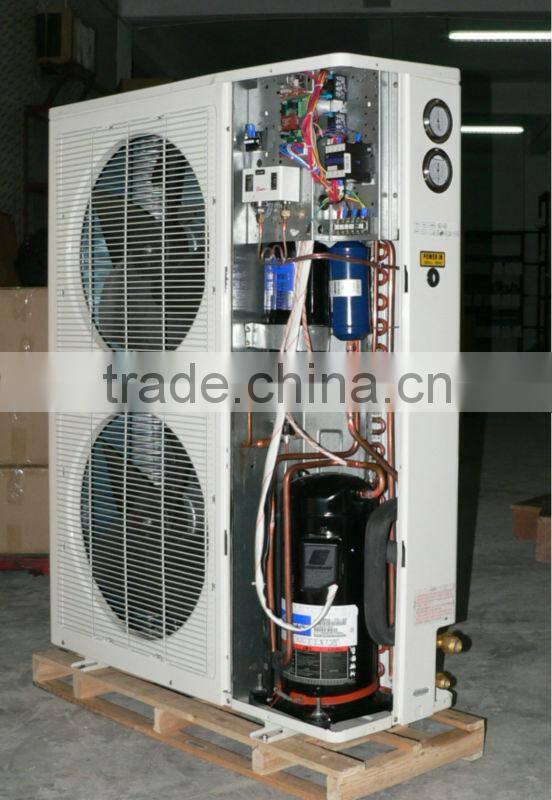

walk in cooler condensing units: Copeland scroll air cooling compressor

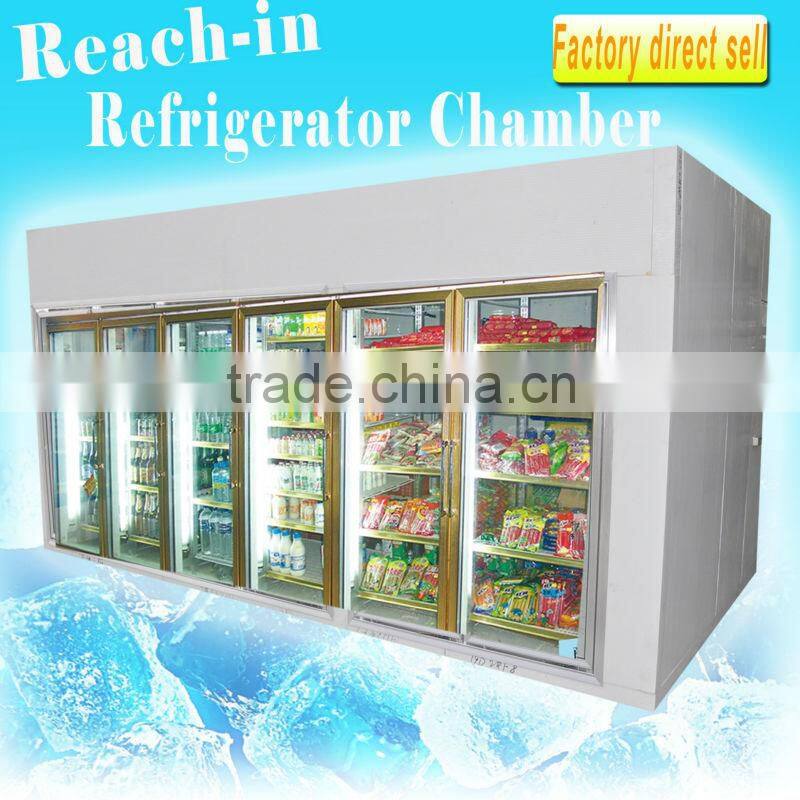

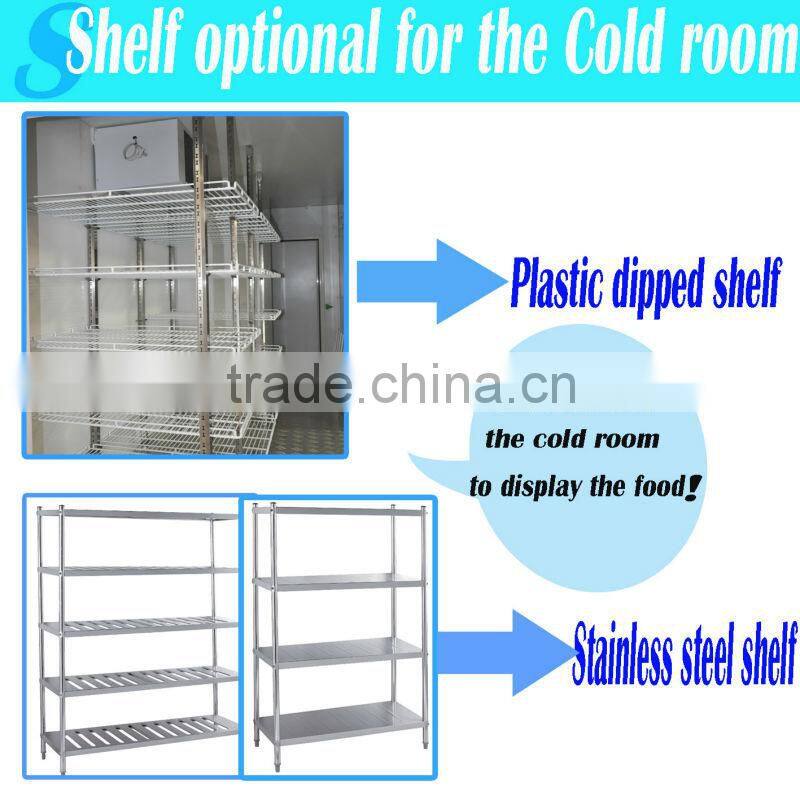

walk in cooler inner is with shelf for food display

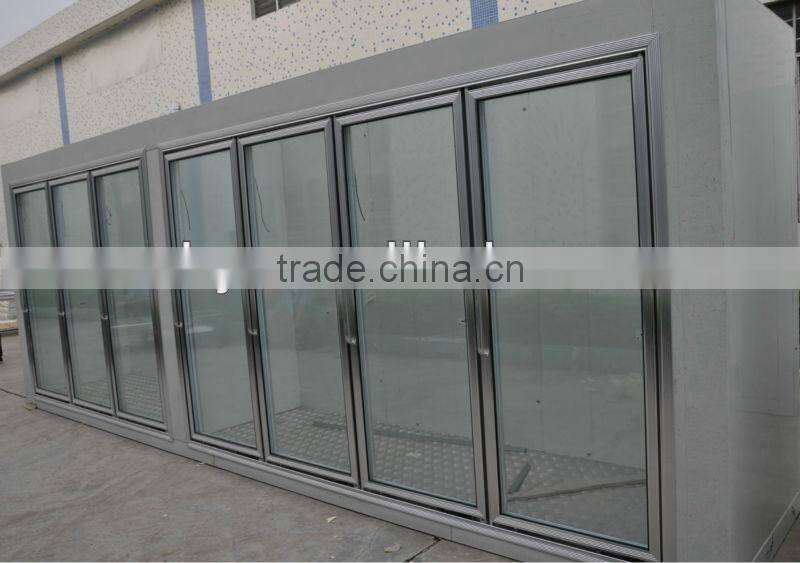

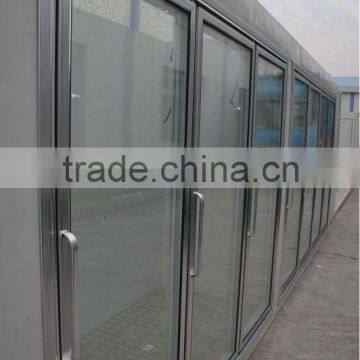

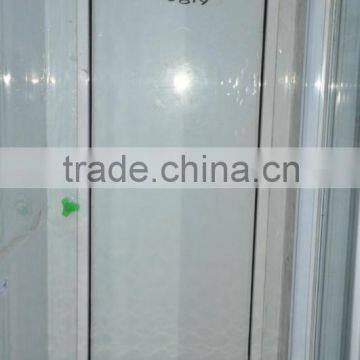

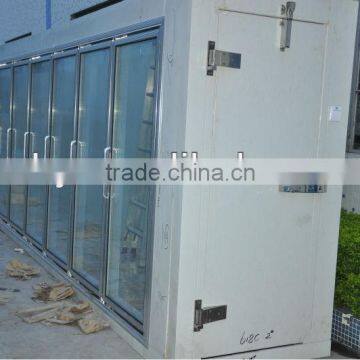

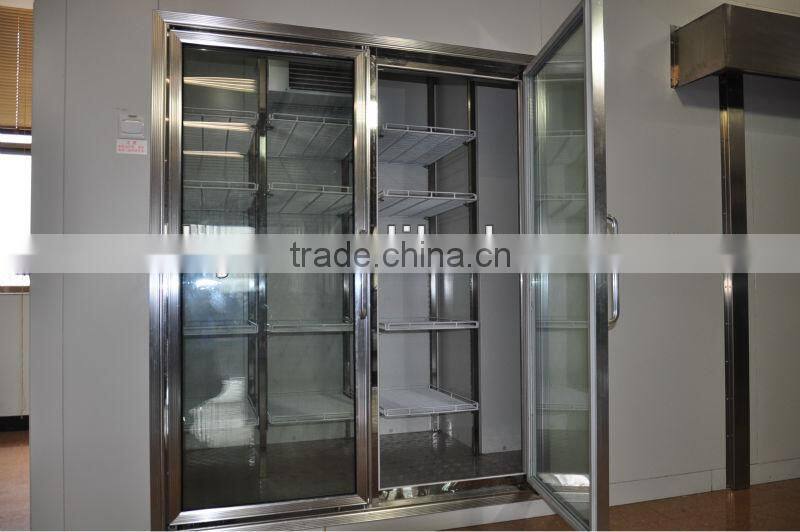

glass door: 725*1775mm
service door :
Electrical Cabinet for walk in cooler
Our Electrical Cabinet accessories are adopted the imported famouse brand accessories ,such as the French Schneider brand contactor, Italy EVCO brand temperature controller .
So our Electrical Cabinet is very high quality and durable .
So you know why our cooling room production cost is higher then other suppliers.

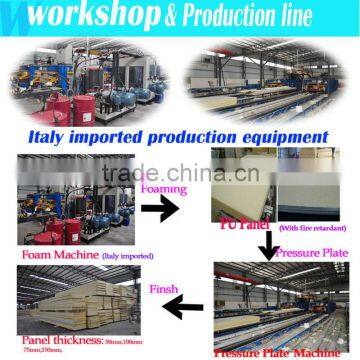

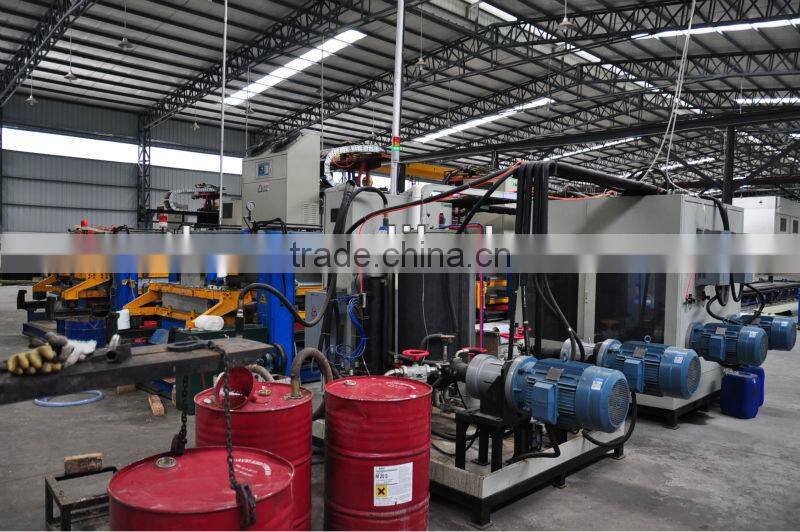

production line for our walk in cooler advanced machine inported from Italy , which ensure every panel quality and fast Delivery

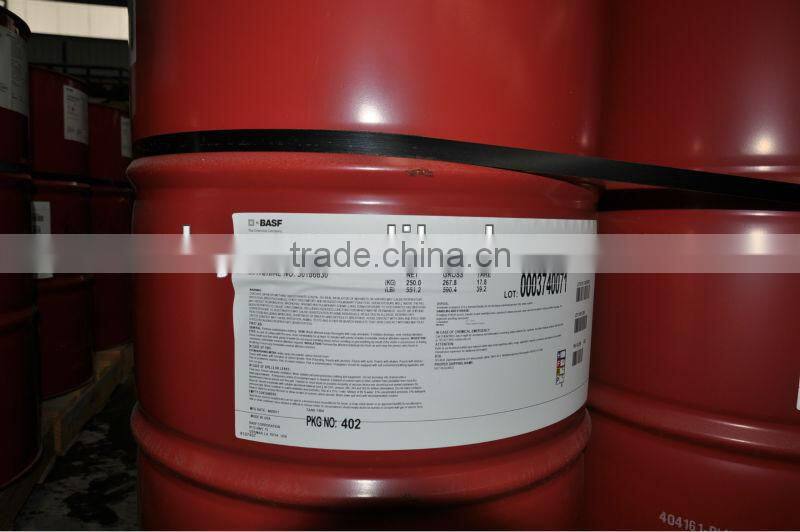

Italy imported foaming material ,brand BASF
