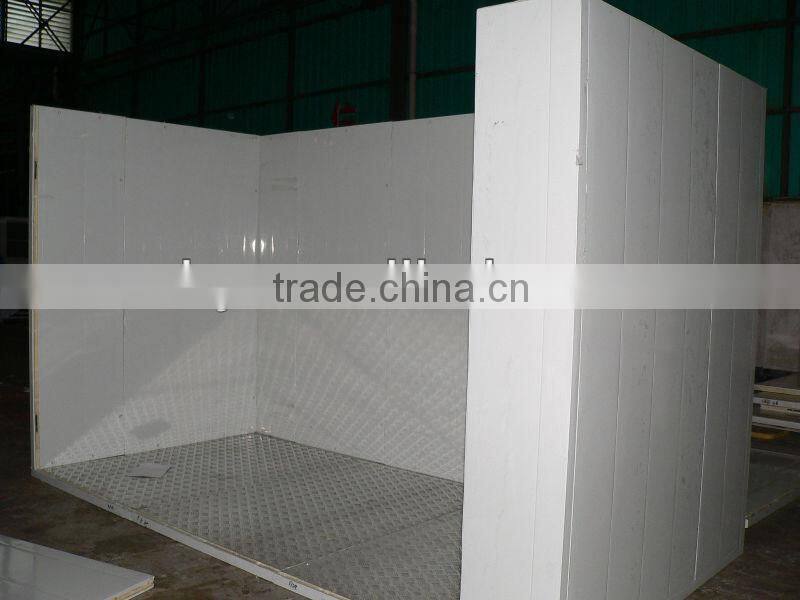

Energy-Saving Storage Cold Room
The cold room is made up of pieces of polyurethane insulation panels, density 43kg/m3,use imported BASF material to foam the pu panels by high pressure.All the panels are with fire retardant,and the polyurethane panels are appropriate for GB8624-1997<Classification of the firing capability of construction-material> and reach the requirements of level B1 hard firing materials.

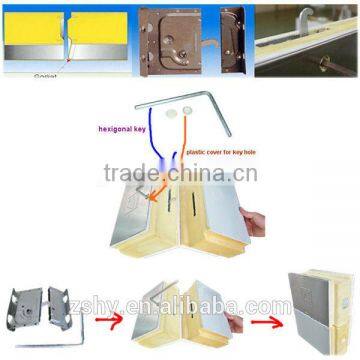

We use the polyurethane panels to contruct all kinds of cold room base on the clients' requirement to meet their actual need. The polyurethane panels are with cam lock system, use the hexagonal key to assemble and disassemble, easy to set up, and convenient for the shipping,saving shipping space.
cold room specification
Dimension |
Length (m) *Width (m)*Height (m) |
Panel |
polyurethane insulation panel,43kg/m3, fire retardant |
Foaming material |
BASF |
Panel thickness |
50mm,75mm,100mm,150mm,200mm |
Steel cover |
stuccom embossed aluminum,painted galvanized steel,stainless steel,PVC stell |
Panel connection |
cam lock type, use hexagonal key to assemble and disassemble |
Type of door |
hinge door, convex door, sliding door |
Temp.of room |
-45~+20 degree, optional |
Purpose of cold room |
fruit,vegetable,flower,fresh/frozen meat etc |
Refrigeration unit |
Copeland / Bitzer / Sanyo etc |
Refrigeration type |
air cooled / water cooled |
Fittings |
all necessary fittings are included, optional |
Place to assemble |
indoor/out door(concrete construction building/steel construction building) |
Voltage |
220V/50HZ, 220V/60HZ, 380V/50HZ optional |
cold room doors optional
cold room refrigeration system
We will choose the suitable condenser and evaporators for the cold room base on the cold room size and inside temperature range and ambient temperature.We can also use the brand of condenisng unit and evaporator to the client's request.

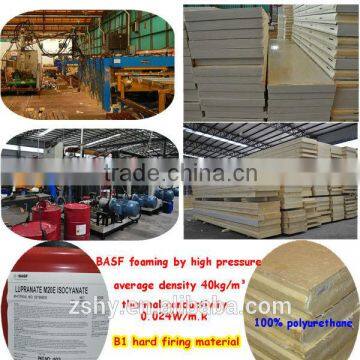

(Workshop-imported injection machine--BASF material to foam polyurethane panels forcold room )
(Workshop-imported pressure plate---foaming the polyurethane panels for cold room )

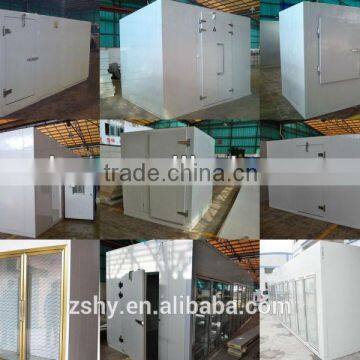

Projects of cold room we made before
Packing of the knock-down cold room
Exhibition in Nuremberg, Germany in October 2012
CHILLVENTA 2012
