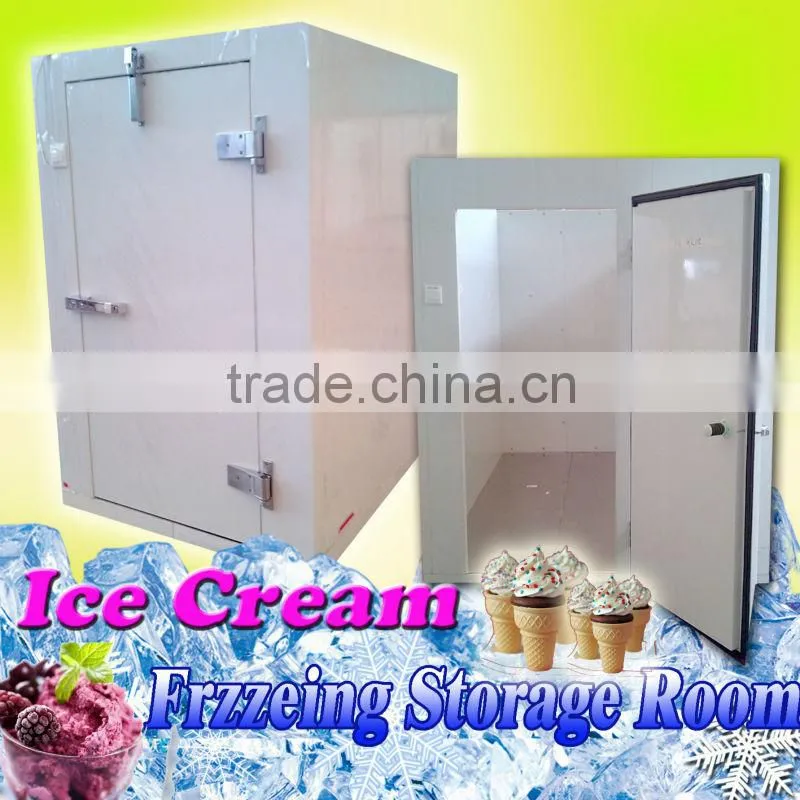

Walk in freezer for ice cream store
Walk in freezer Product Features
1. The Walk in freezer panel is durable in use, color lasting & coated layer keeping,panel life is about 20 years.
2. It is made with BASF polyurethane material by high pressure foaming. The Walk in freezer panel
density is up to 40kg/m3 or above.
3. The internal cool room floor panel of our cold room is made by 1.0mm galvanized steel
and durable for anti-scratch.
4. The hinged door panel of our coldroom is made by heavy duty door hinge, heavy duty door lock and hydraulic door closer.
5. The connection of our cold room panels are made with PE sealing rubber which is with high
quality sealing.
6. The connection of our cool room is with cam lock construction and excentric fasterners for
tight connection and sealing of the cold room
Walk in freezer Product information
Dimension |
Length 4.5(m) *Width3.5 (m)*Height 2.5(m) or According to client's requirement . |
Panel |
polyurethane insulation panel,43kg/m3, fire retardant |
Foaming material |
BASF |
Panel thickness |
100mm |
Steel cover |
painted galvanized steel |
Panel connection |
cam lock type, use hexagonal key to assemble and disassemble |
Type of door |
hinge door |
Temp.of room |
2~+8 degree, or optional |
Purpose of cold room |
to store fruit,vegetable |
Refrigeration unit |
Copeland compressor |
Refrigeration type |
air cooled |
Fittings |
all necessary fittings are included, optional |
Place to assemble |
indoor/out door(concrete construction building/steel construction building) |
Voltage |
220V/50HZ, 220V/60HZ, 380V/50HZ ,110V/60HZ optional |
Walk in freezer panel Testing Specification
| No. | Inspection Item | Unit | Technology requirement | Inspection result |
| 1 | Density | kg/m3 | 32~50 | 43 |
| 2 | Compressing strength(10%deformation) | Kpa | ≥ 160 | 200 |
| 3 | Bending Stregth | Kpa | ≥ 245 | 331 |
| 4 | Absording rate | % | ≤ 4 | 3 |
| 5 | Heating coefficient | W/m.k |
0.024 | 0.021 |
| 6 | Average burning time(vertical) | S | ≤ 30 | 3 |
| 7 | Average burning height(vertical) | s | ≤ 250 | 250 |

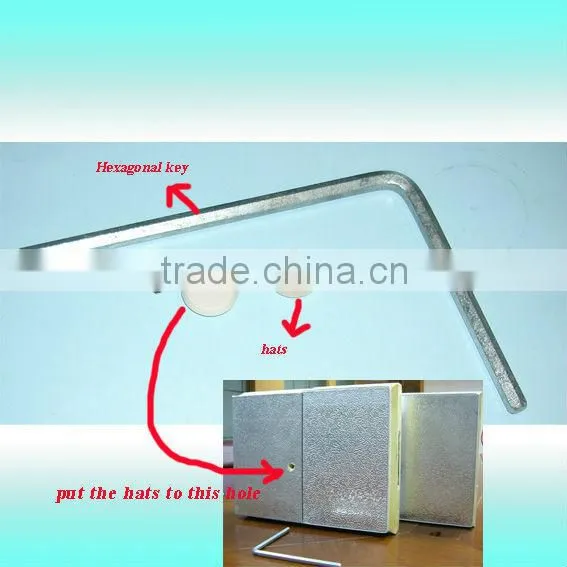

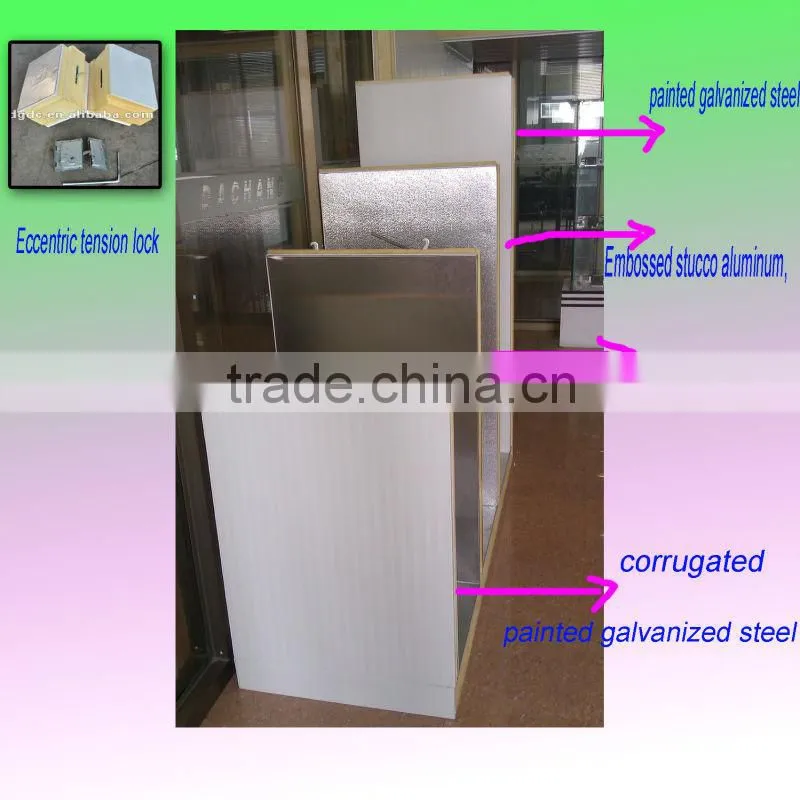

Walk in freezer Installation tool:hexagonal key

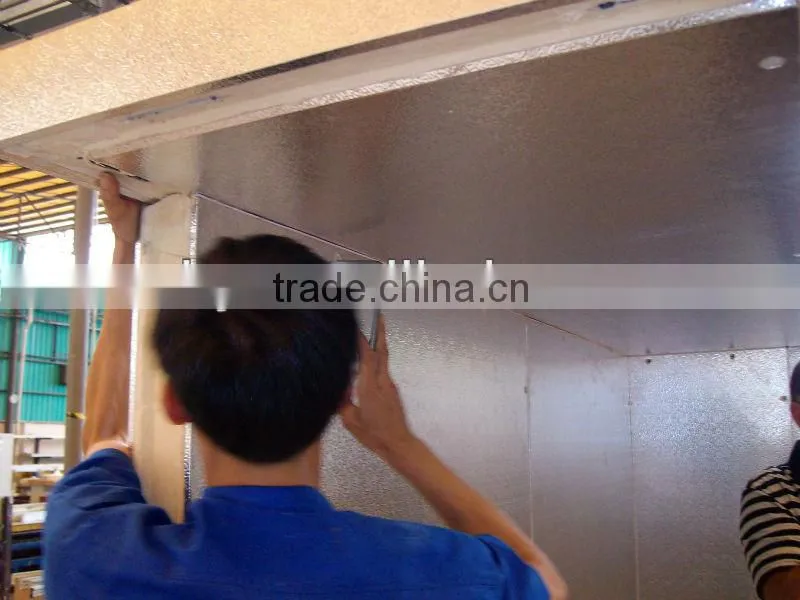

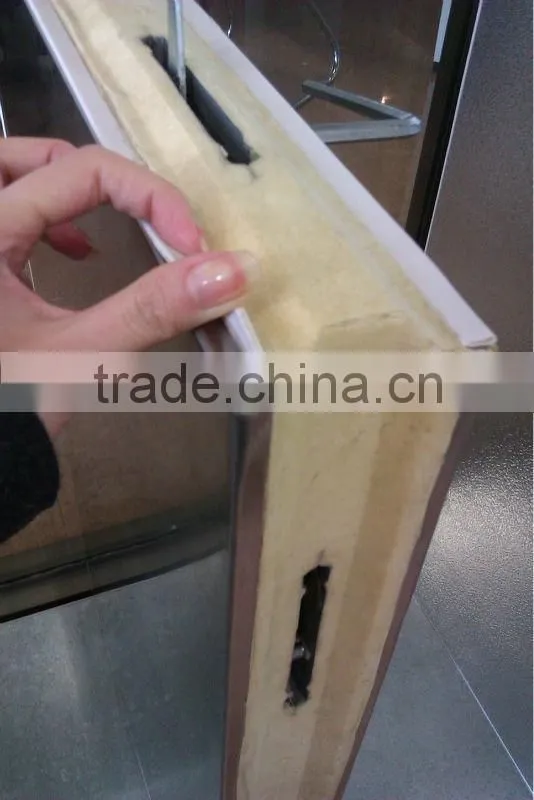

Every panel is male (convex) and femal(concave) type,cam locks are pre-burried inside the panels,use a key to lock them together.
our panel advantage :
1. Our panel foaming material is Italy Brand BASF . The whole panel average density above 40kg/m3 which enable the panel with better thermal conductivity of 0.021W/(m.k). The national standard is 0.024W/(m.k), which mean our panels will save the energy consumption of 12.5% than national standard.
2.All the panels we produce are with fire retardant, self extinguish, Fireproofing Grade is B1. It refers to the safety problem.
3.The steel sheet we purchase from Baosteel and POSCO which are the biggest steel factories in the world, they promise the painted galvanized steel they produce will not fade in 15~20 years
Gasket is around the edge of each Walk in freezer panel , when panel lock together,the cool air will not leak,and the hot air can not come in .

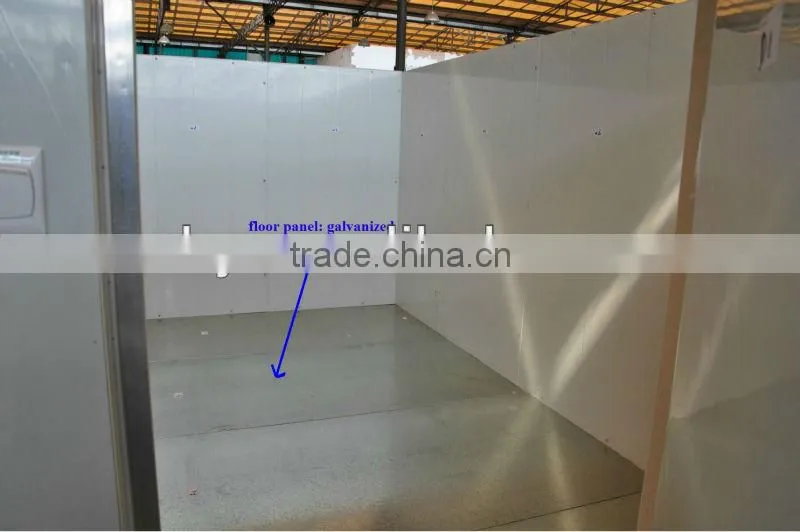

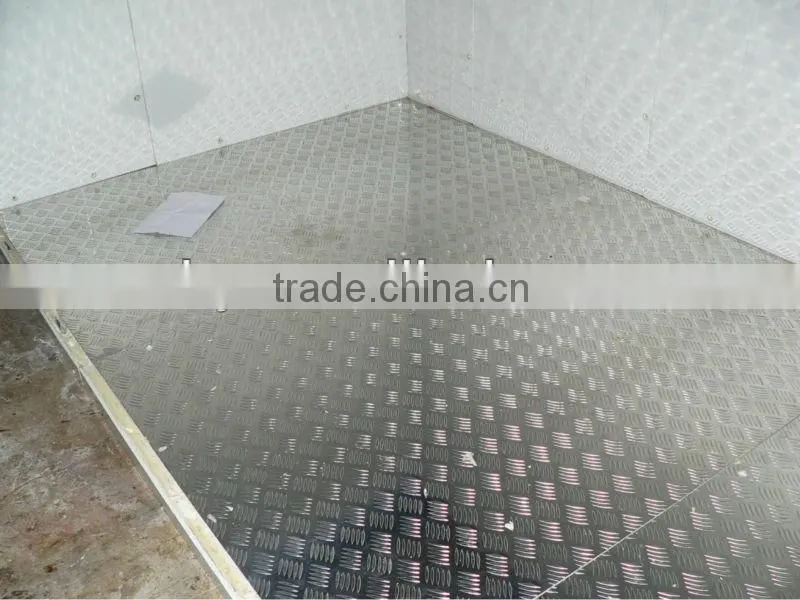

Walk in freezer floor:
can do the Galvanized steel PU Panel floor or skidproof floor
The Pu panel floor can bear 250kg/m2
skidproof floor

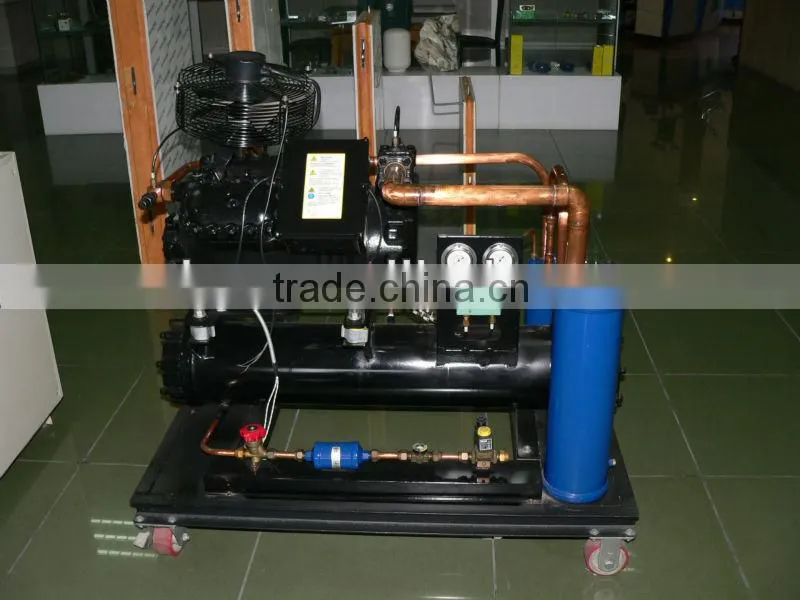

Walk in freezer condensing units: Copeland Semi-hermetic compressor

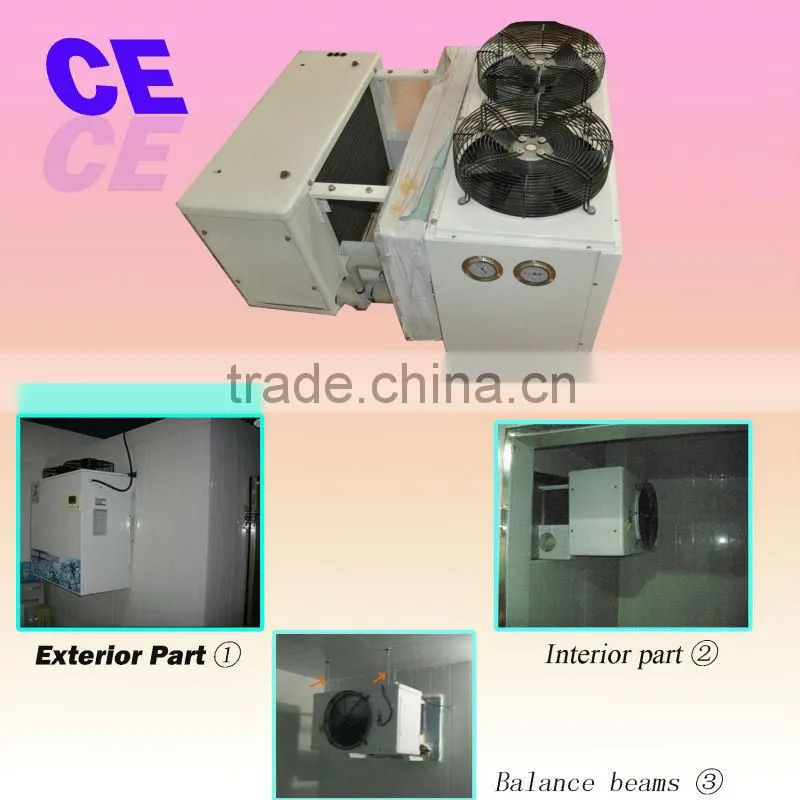

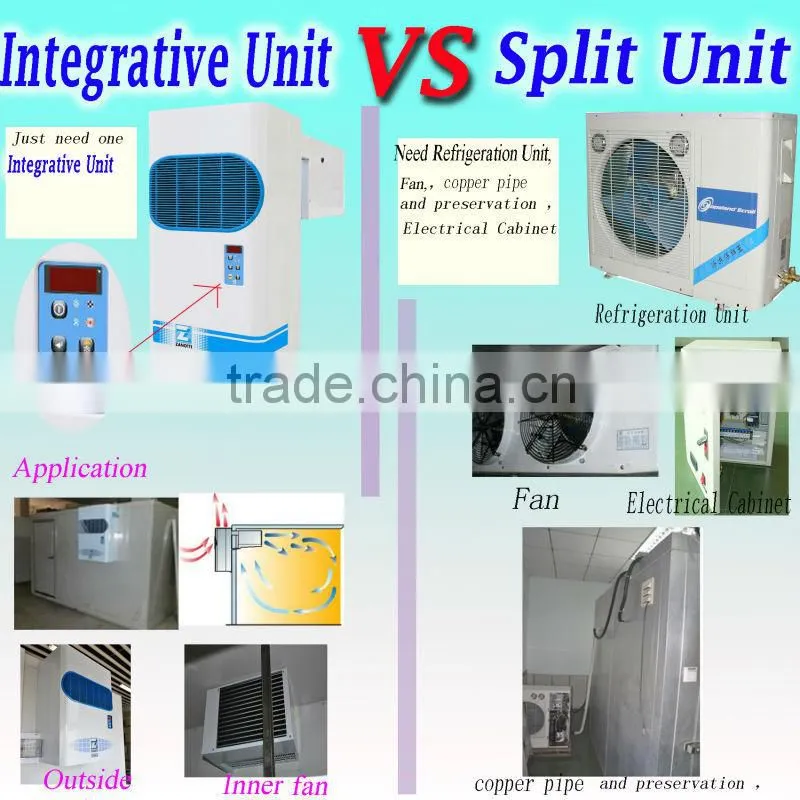

For small size of Cold room , we will recommend the Monoblock compressor which is more easy to be used. Monoblock unit is with outdoor condensing unit, indoor evaporator cooling unit and controller all together in one set, plug and play, not any extra connection,easy to operate!

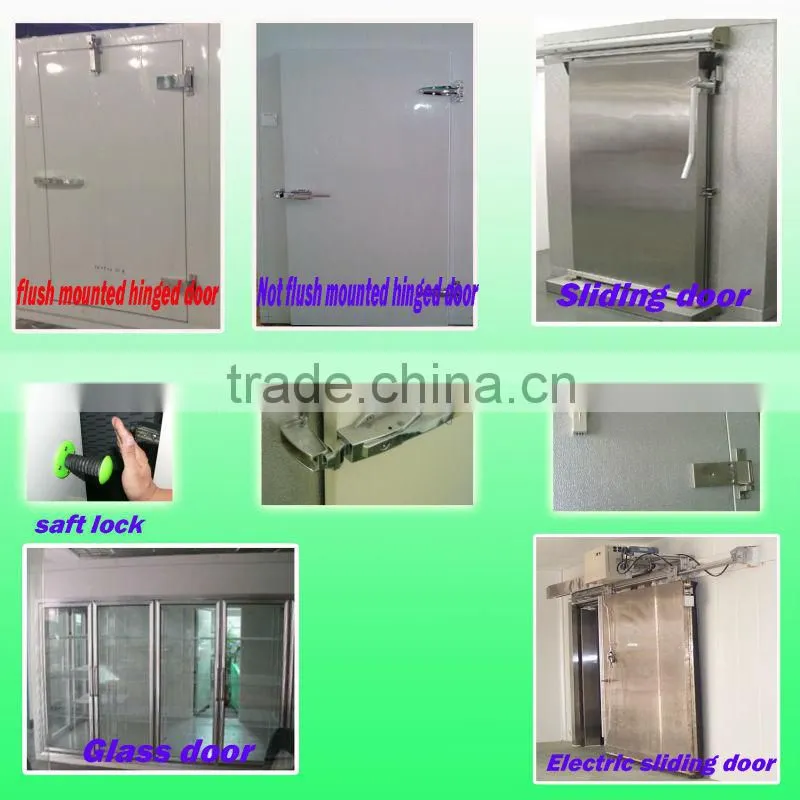

Door size for your choice ( size can be changed according to the client's requirement )
| No | Door type | door size | door heater voltage |
| 1 | Flush mounted hinged door | 800mm W*1900mm H | 24V / 36V |
| 2 | not flush mounted hinged door | 832mm W*1860mm H | 24V / 36V |
| 3 | sliding door | 832mm W*1860mm H | 24V / 36V |

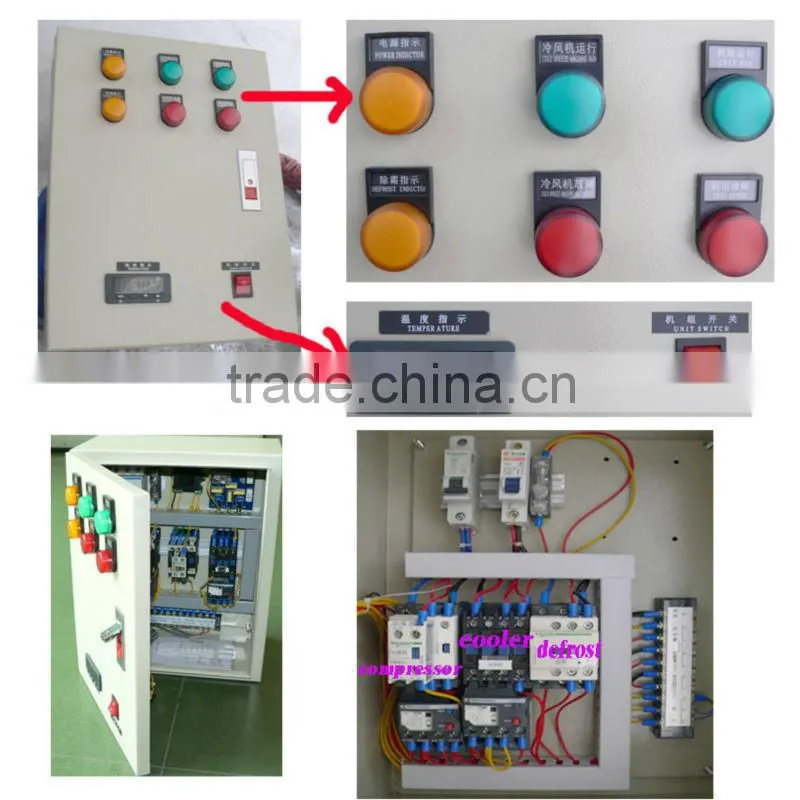

Electrical Cabinet for Walk in freezer
Our Electrical Cabinet accessories are adopted the imported famouse brand accessories ,such as the French Schneider brand contactor, Italy EVCO brand temperature controller .
So our Electrical Cabinet is very high quality and durable .
So you know why our cooling room production cost is higher then other suppliers.

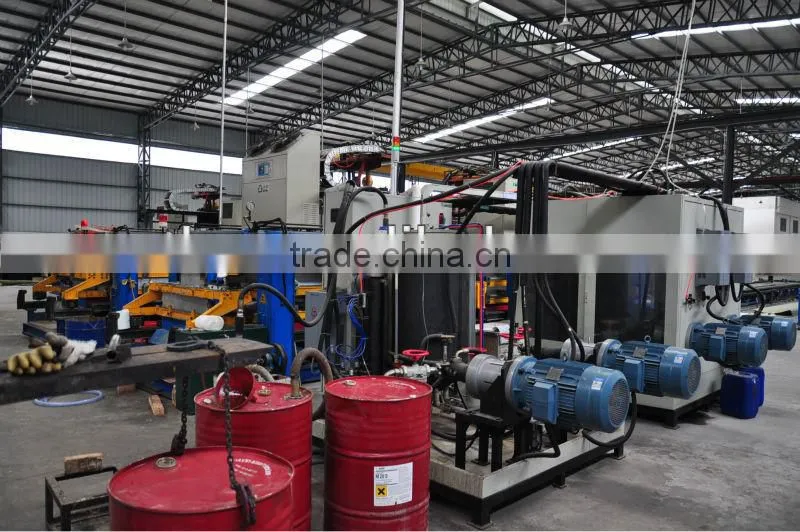

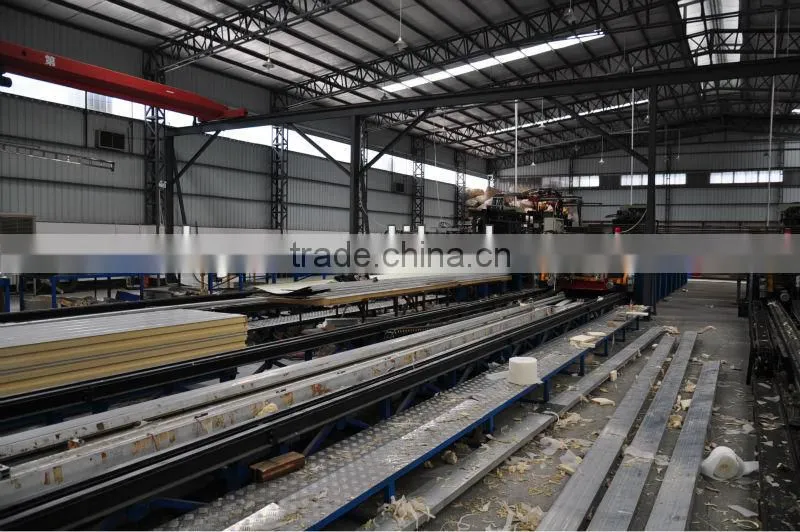

production line for our Walk in freezer
advanced machine inported from Italy , which ensure every panel quality and fast Delivery

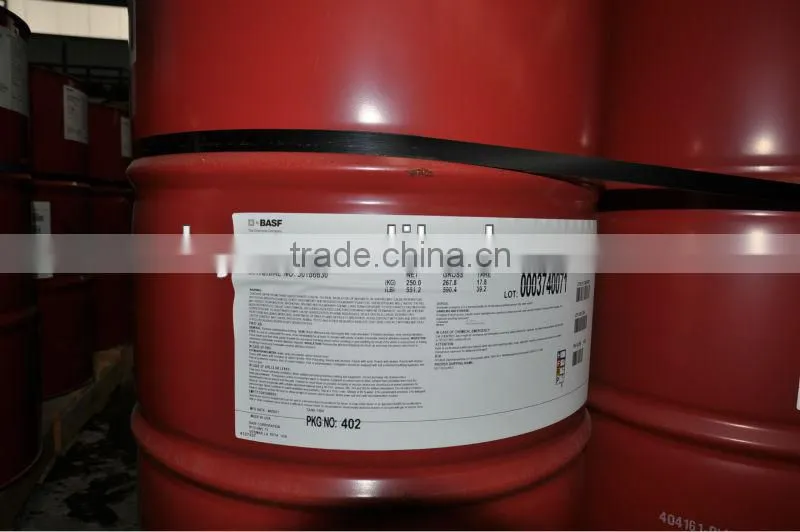

Italy imported foaming material ,brand BASF
