Supermarket Display Chiller Room

Supermarket Display Chiller Room thumbnail-1
Supermarket Display Chiller Room thumbnail-2
Supermarket Display Chiller Room thumbnail-3
Supermarket Display Chiller Room thumbnail-4
Supermarket Display Chiller Room thumbnail-5
Supermarket Display Chiller Room thumbnail-6
Supermarket Display Chiller Room photo-1
Supermarket Display Chiller Room photo-2
Supermarket Display Chiller Room photo-3
Supermarket Display Chiller Room photo-4
Supermarket Display Chiller Room photo-5
Supermarket Display Chiller Room photo-6
US$ 26 - 38 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Temperature:
-50
Place of Origin:
Guangdong, China
Contact Supplier Request Quote Chat Now
Foshan Argentdragon International Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
FOSHAN CHINA
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Temperature -50
Place of Origin Guangdong, China
Brand Name YQ
Model Number DC
Voltage undetermined
Power(W) undetermined
Dimension(L*W*H) OEM
Weight undetermined
Certification ISO9001, ISO 9001 2000
Warranty 1 year
After-sales Service Provided Overseas third-party support available

Supermarket Display Chiller Roomer

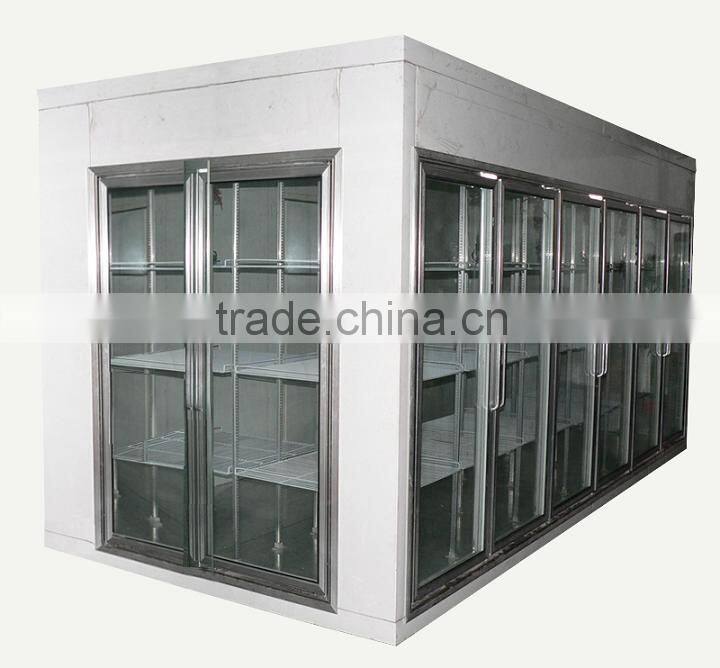

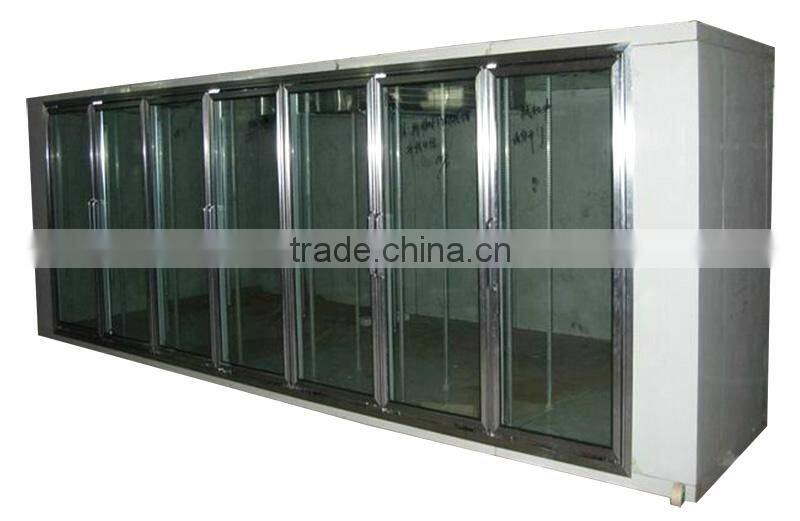

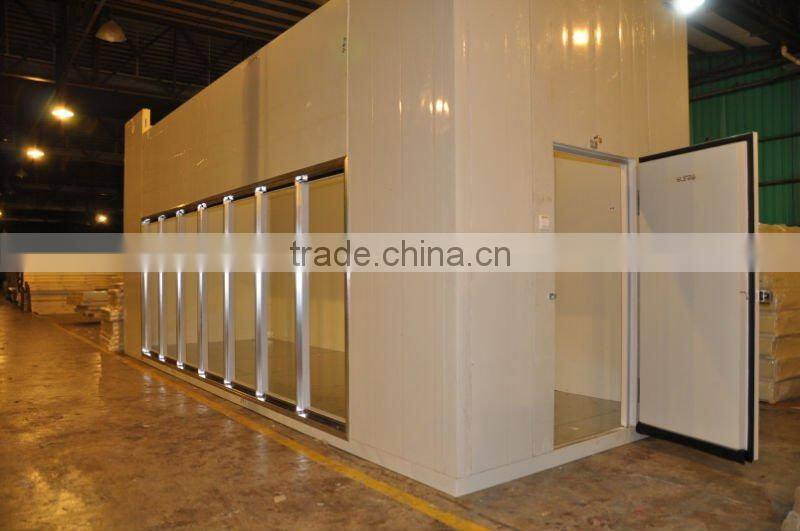

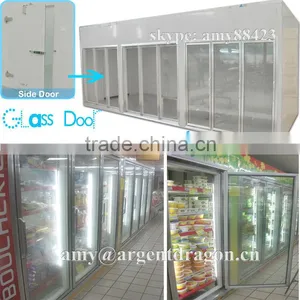

Supermarket display cold room with glass doors

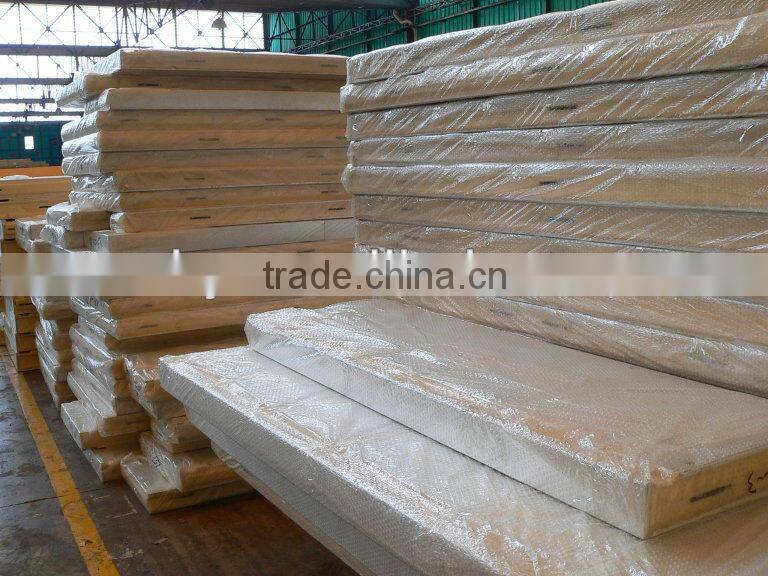

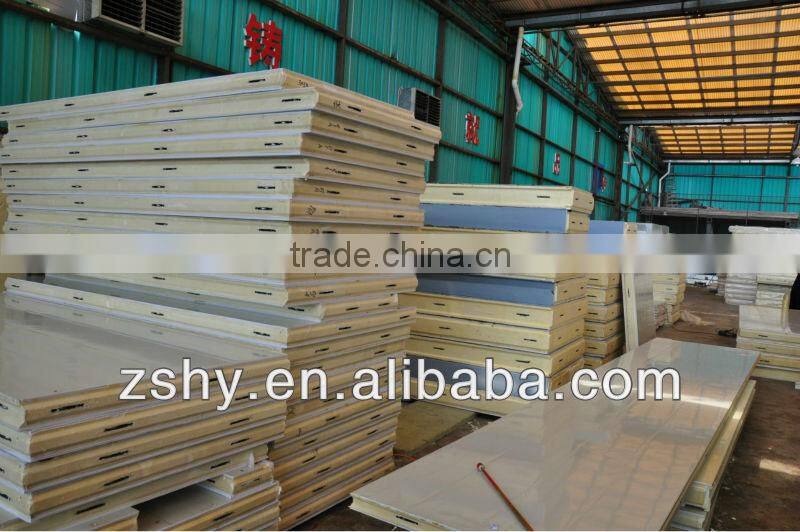

Modular polyurethane insulated panel for cold storages are made of modular fabrication with polyurethane insulation with different dimensions, which make it flexible for construction different sizes of an ideal cold storage room. The modular design allows for easy assembly and disassembly. All panels are injected with 100% polyurethane with an average density of 40KG/M3 firmly glued to the metal, which has a variety of finishes available to meet the customers specific requirement.

please find the following information which can help you to know more about our panel:

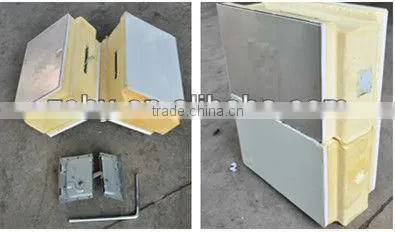

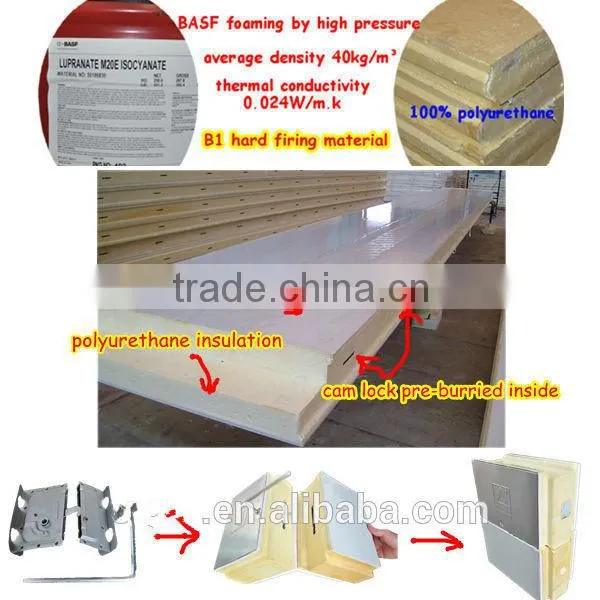

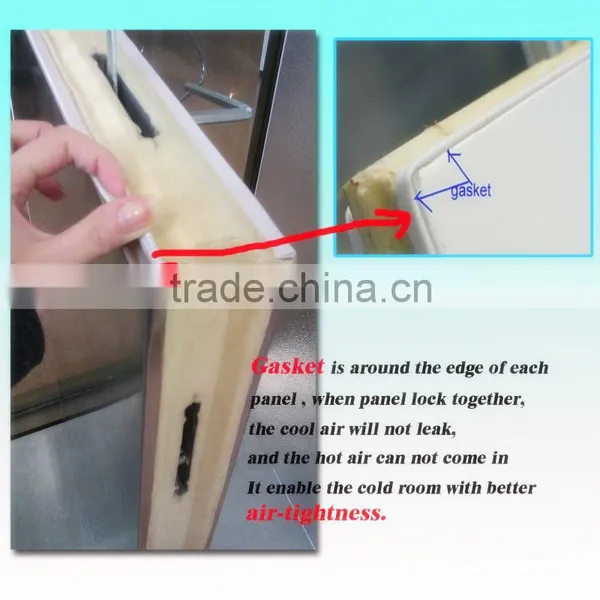

1)Panel:polyurethane panels are of 100% polyurethane insulation foamed by high pressure, density about 43kg/m3,with flame retardant.The panels are convex(male)and concave(female) type,with cam locks preburried  inside the panels,use hexagonal key assemble and disassemble

2)Steel sheet cover: painted galvanized steel steel, we also have stucco embossed aluminum, stainless steel,and PVC stell.

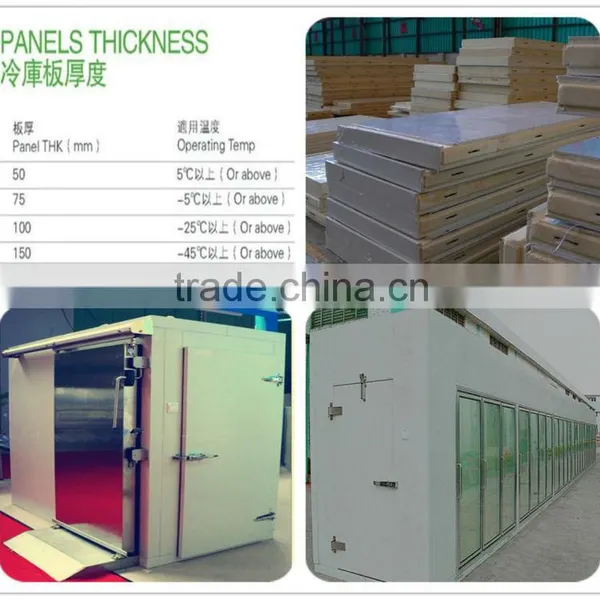

3)Panel thickness: for the standard cold room is 100mm.

                            50mm (operating temperature 5 or above)
                            75mm(operating temperature -5 or above)
                           100mm (operating temperature -25 or above)
                           150mm (operating temperature -45 or above)
                           200mm (operating temperature -55 or above)


Display cold room  measurement

Glass Doors

50mm panel(2~10C)

75mm panel(0~-5C)

100mm panel(-5~-20C)

1 DOOR

905*950*>1965mm

955*950*>2015mm

1005*950*>2065mm

2DOORs

1663*950*>1965mm

1713*950*>2015mm

1763*950*>2065mm

3DOORs

2421*950*>1965mm

2471*950*>2015mm

2521*950*>2065mm

4DOORs

3179*950*>1965mm

3229*950*>2015mm

3279*950*>2065mm

5DOORs

3937*950*>1965mm

3897*950*>2015mm

4037*950*>2065mm

6DOORs

4695*950*>1965mm

4745*950*>2015mm

4795*950*>2065mm

7DOORs

5453*950*>1965mm

5503*950*>2015mm

5553*950*>2065mm

8DOORs

6211*950*>1965mm

6261*950*>2015mm

6311*950*>2065mm

9DOORs

6969*950*>1965mm

7019*950*>2015mm

7069*950*>2065mm

10 DOORs

7727*950*>1965mm

7777*950*>2015mm

7827*950*>2065mm



Supermarket Display Chiller RoomSupermarket Display Chiller RoomSupermarket Display Chiller RoomSupermarket Display Chiller RoomSupermarket Display Chiller RoomSupermarket Display Chiller RoomSupermarket Display Chiller RoomSupermarket Display Chiller RoomSupermarket Display Chiller RoomSupermarket Display Chiller Room
