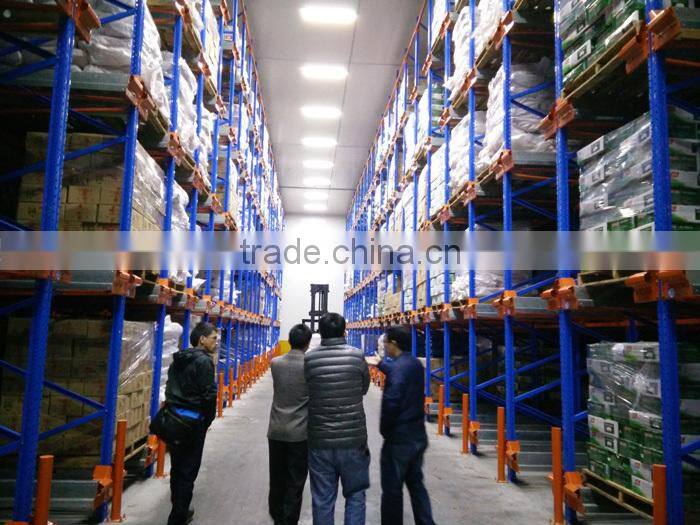

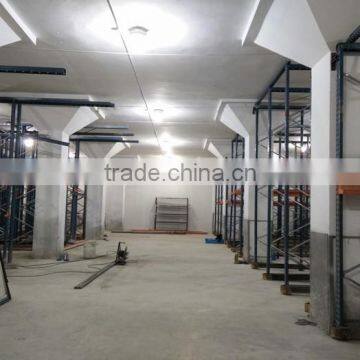

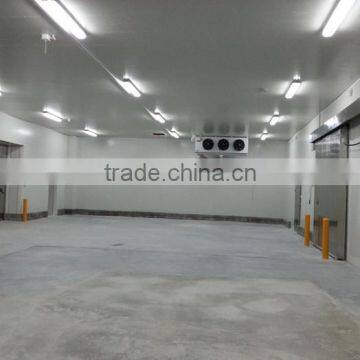

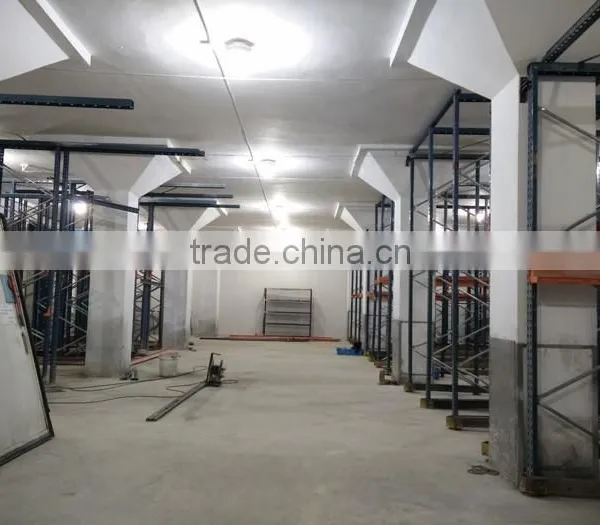

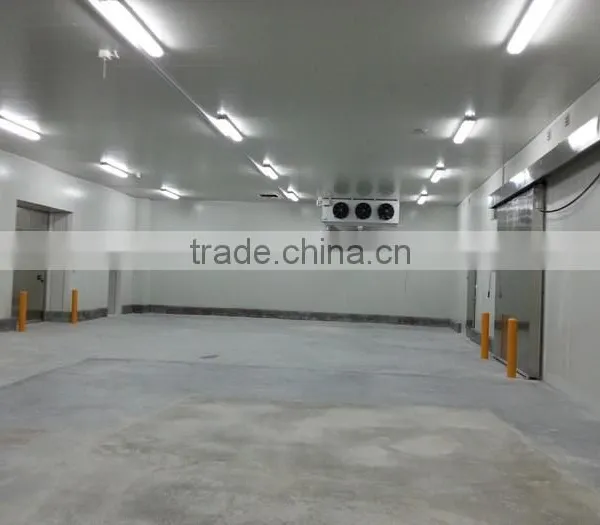

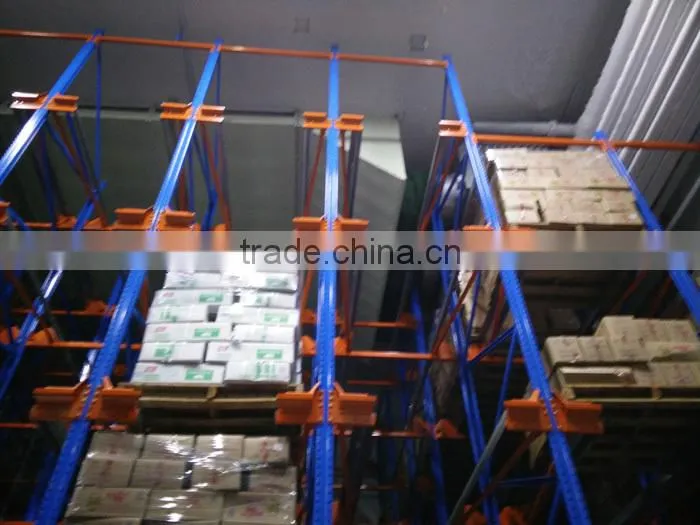

Cold storage room with storage racks inside
Following information is about the cold storage room for two tons storage capacity
| cold storage room size | L1500*W8000*H3800mm |
| cold storage room inner temperature | 0~+5 C |
| door | Manual sliding door 1500*2000mm |
| voltage | 380V |
| compressor | Copeland (R404a gas) |

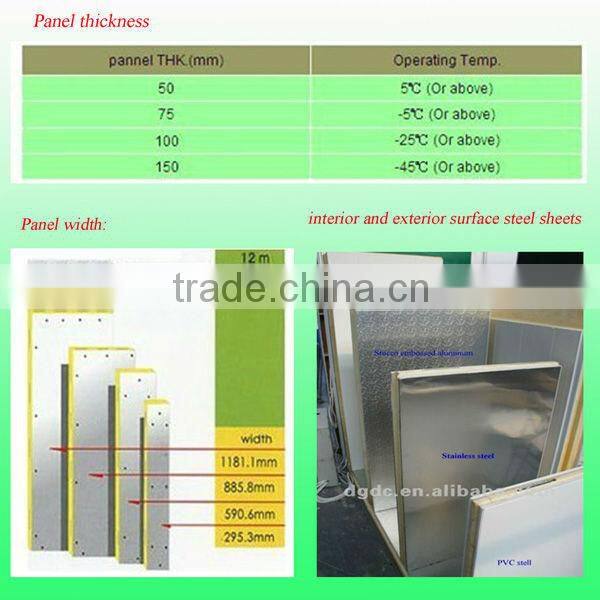

| panel | 100mm color coated PU panel |

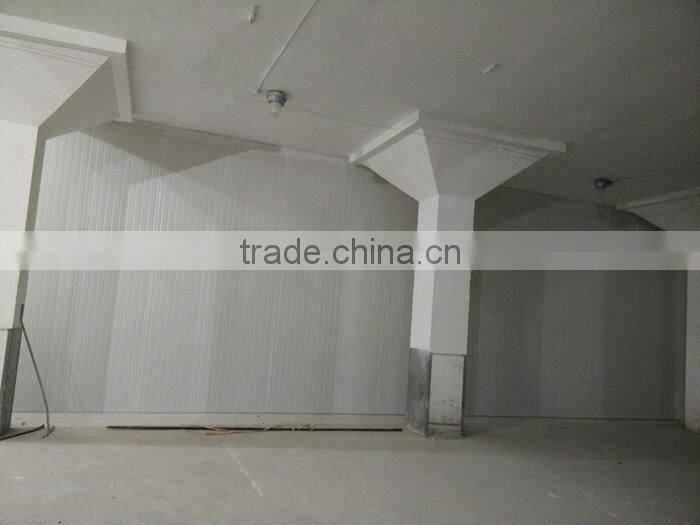

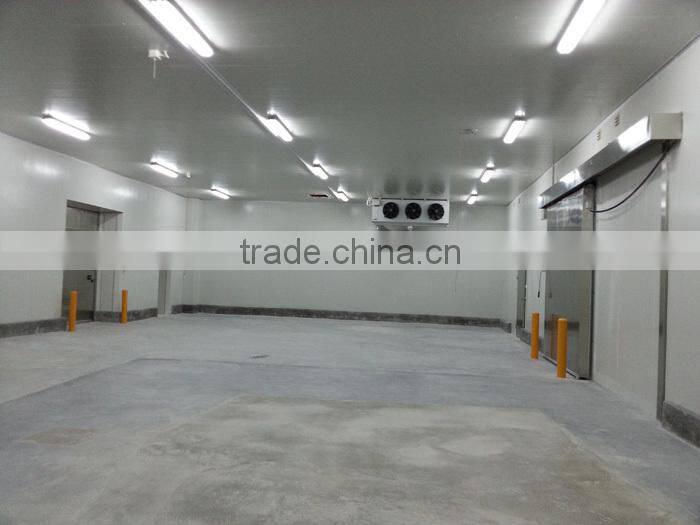

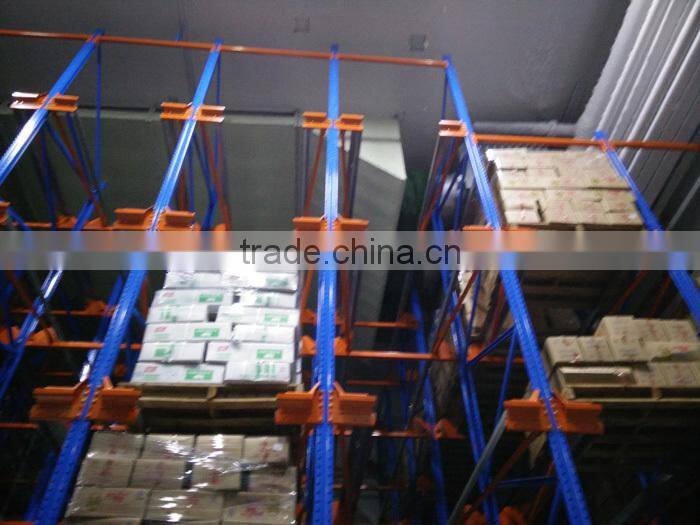

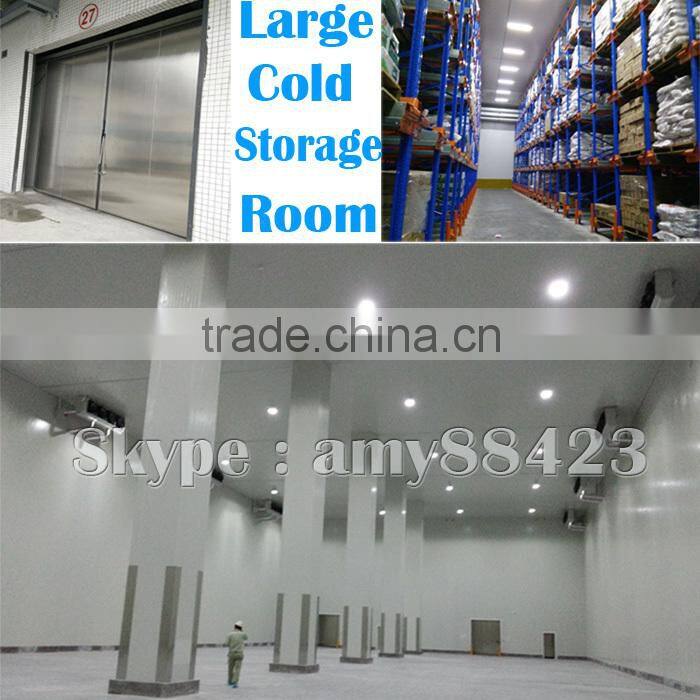

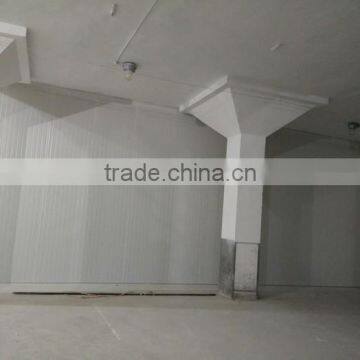

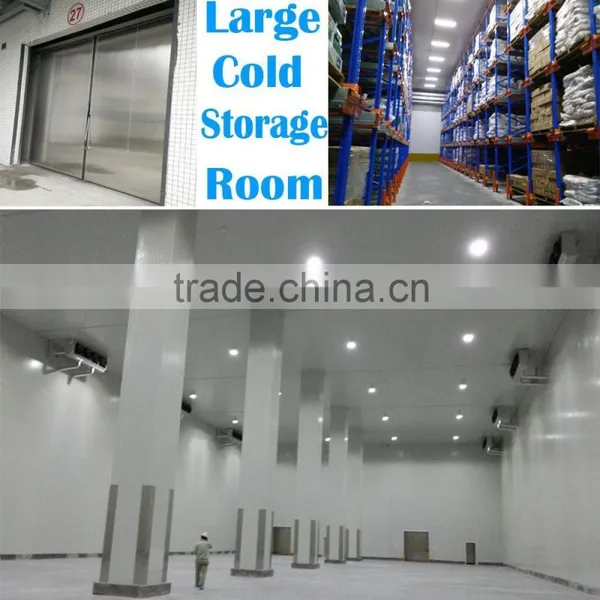

Please check the cold storage room details in the following pictures :
cold storage room panel Testing Specification
| No. | Inspection Item | Unit | Technology requirement | Inspection result |
| 1 | Density | kg/m3 | 32~50 | 43 |
| 2 | Compressing strength(10%deformation) | Kpa | ≥ 160 | 200 |
| 3 | Bending Stregth | Kpa | ≥ 245 | 331 |
| 4 | Absording rate | % | ≤ 4 | 3 |
| 5 | Heating coefficient | W/m.k |
0.024 | 0.021 |
| 6 | Average burning time(vertical) | S | ≤ 30 | 3 |
| 7 | Average burning height(vertical) | s | ≤ 250 | 250 |

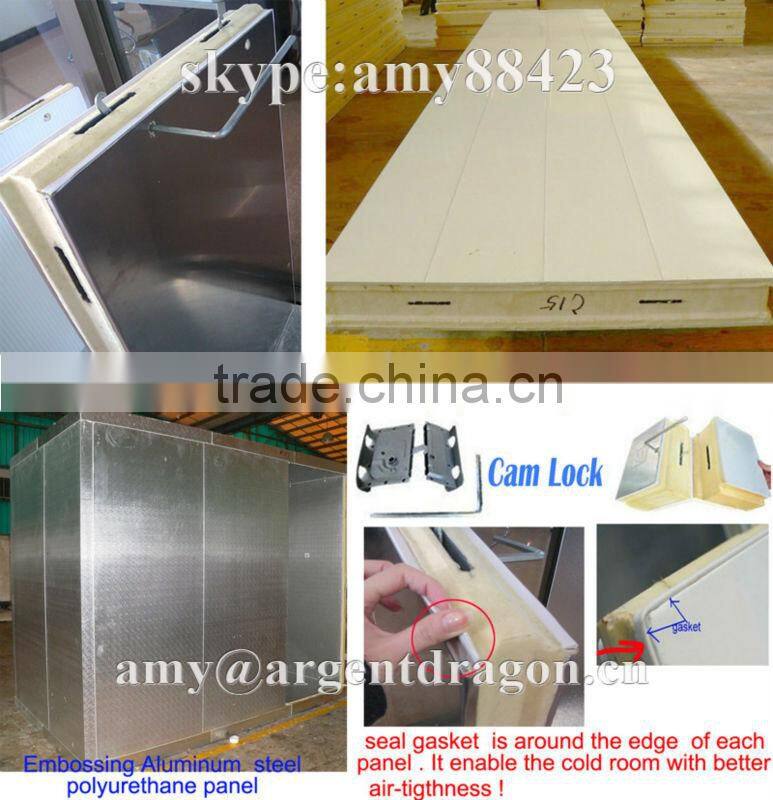

our cold storage room panel advantage :
1. Imported Foaming material : BASF
panel average density above 40kg/m3 which enable the panel with better thermal conductivity of 0.021W/(m.k).
2.All the panels are with fire retardant, self extinguish, Fireproofing Grade is B1.
3.The steel sheet we purchase from Baosteel and POSCO which are the biggest steel factories in the world, we promise that our cold storage room will not fade in 20 years

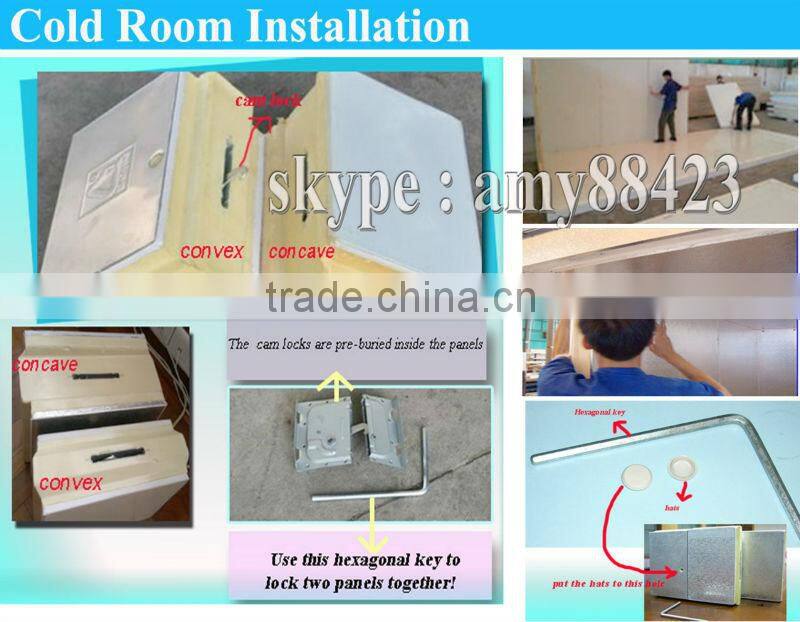

How our cold storage room install ?
Every panel is male (convex) and femal(concave) type,cam locks are pre-burried inside the panels,use a key to lock them together.

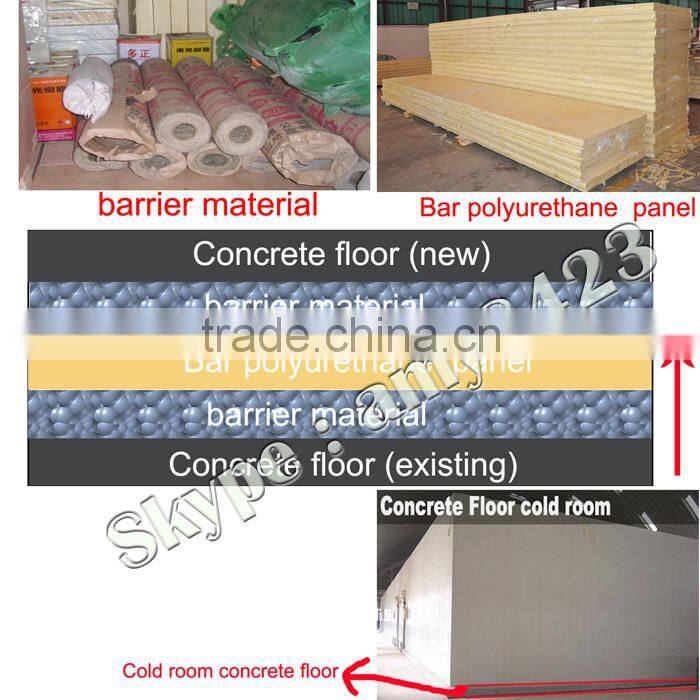

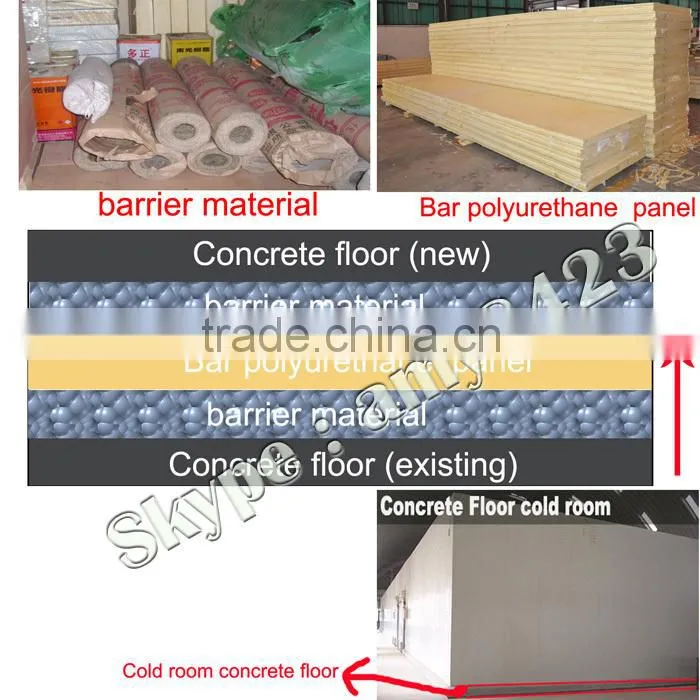

cold storage room floor:reinforced concrete floor

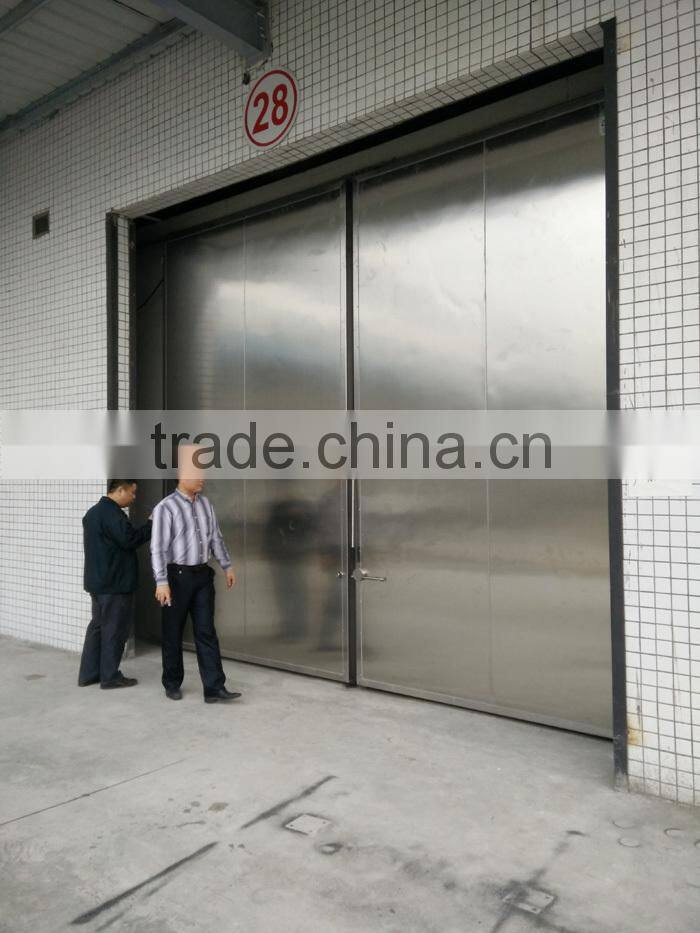

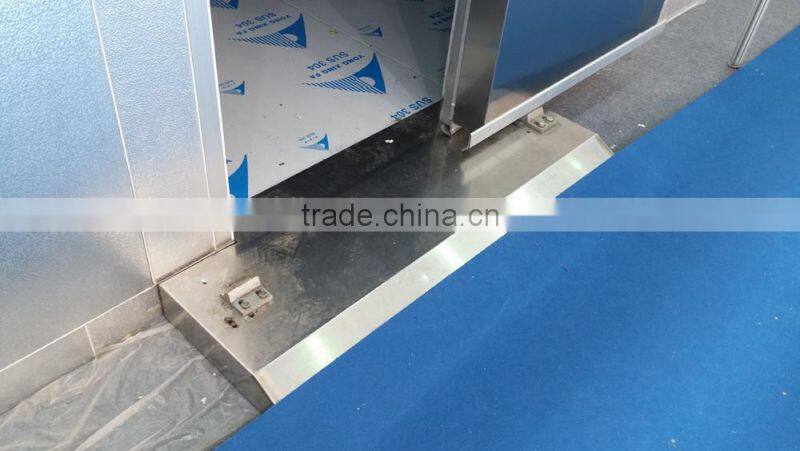

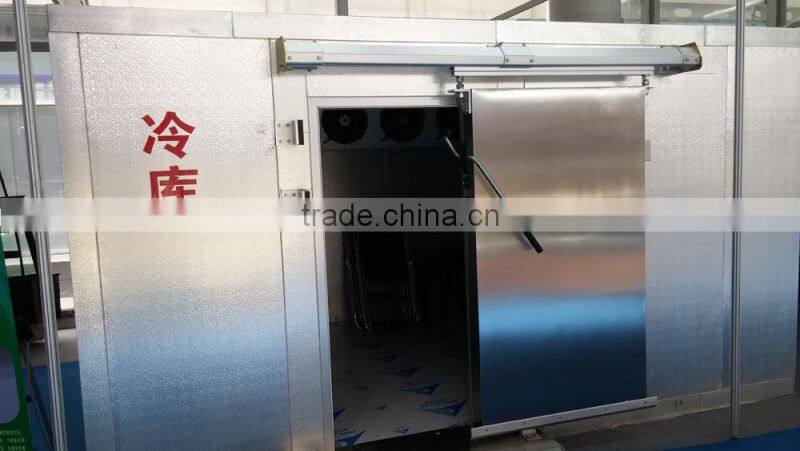

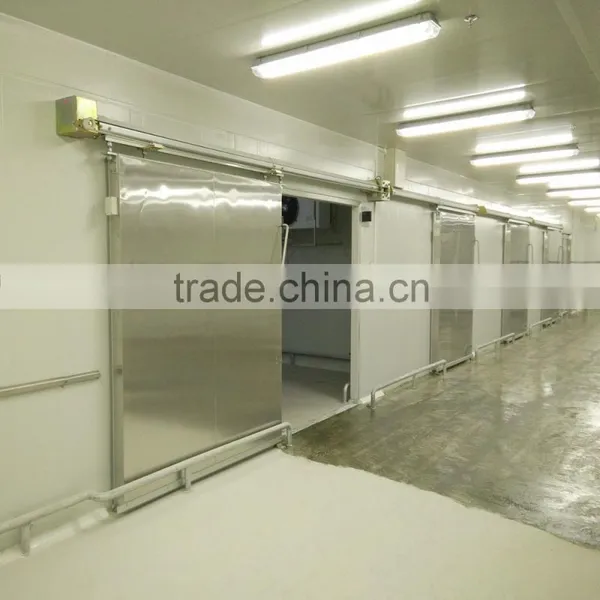

cold storage room door : manual sliding door W1500*1800H (mm) , the door is with heater & Safe escape lock . 0.56mm stainless steel 304 material

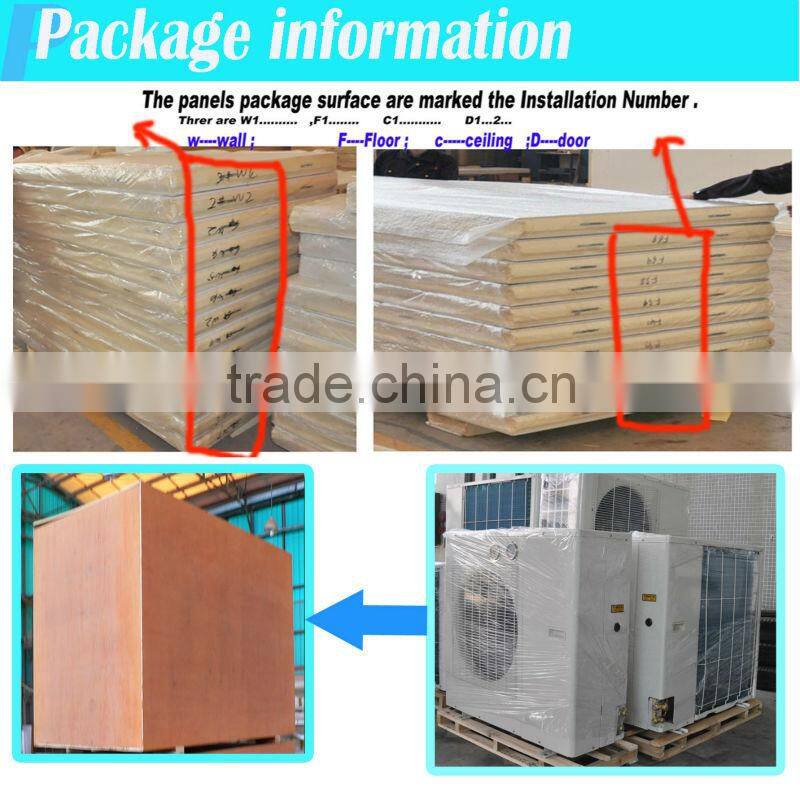

cold storage room package
bubble paper or Plywood Case
1. cold storage room panels: bubble paper
2. cold storage room Refrigeration Unit :Plywood Box
3. 20ft container can load 2 units this size cold storage room

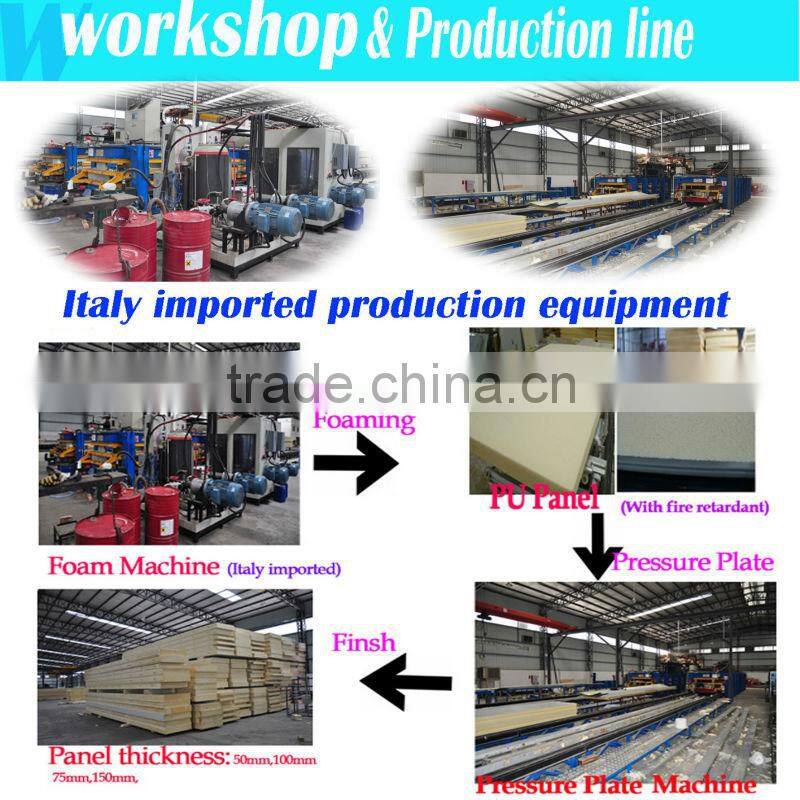

our factory is more than 30,000 square meters .Our mordern workshop & complete set of imported CUSBER & OMS product line for polyurethane sandwiched panel .
In order to guarantee the good quality cold room ( cold storage room) & Effective production capacity , we imported the Italy CUSBER & OMS product line
OEM design cold storage room is welcome . So please tell me answer us the following questions , then we will give you the best suggestion to do the cold storage room :
1.what's the cold storage room external size you requird ? (such as length , width , height )
2.what kind of food put into the cold storage room ?
3.what's the cold storage room inner temperature you required ?
our working is from Monday to Saturday ( 9:00am ~5:00 pm).
Feel free to send your enquiry to us !
