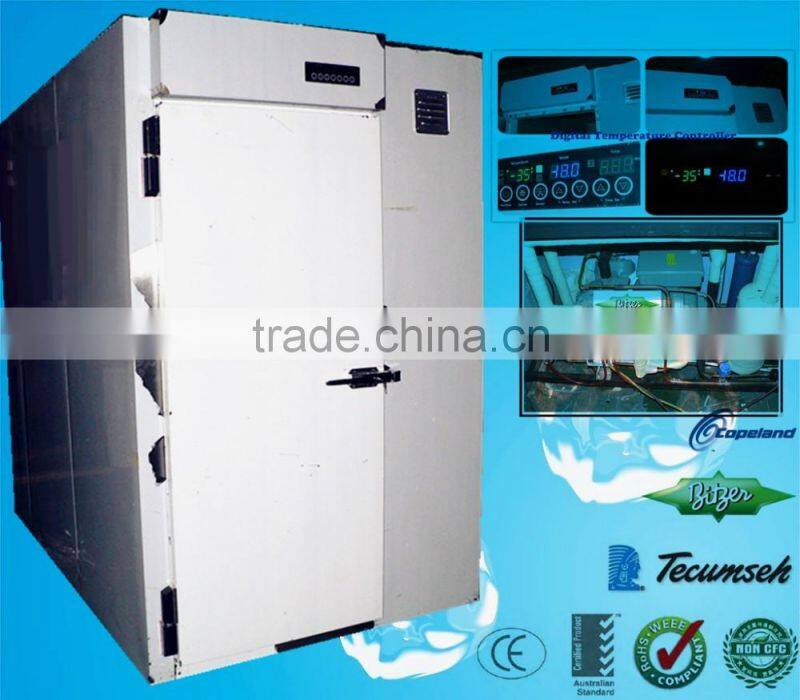

Blast Freezer / Quick freezing machine / Shock freezing machine
Product Description
Blast freezer Product Feature
1. All in stainless steel 304 in both sides , exterior 1.0 mm thick , interior 0.8 mm thick
2. Imported compressor , Germany brand Bitzer (air cooled)
3. Blast freezer can freezer the 250kg
4. we can design the module Blast freezer or the finished assembled Blast freezer
5. Environment-protection Refrigerant :R404a
6.hight quality with CE Rosh

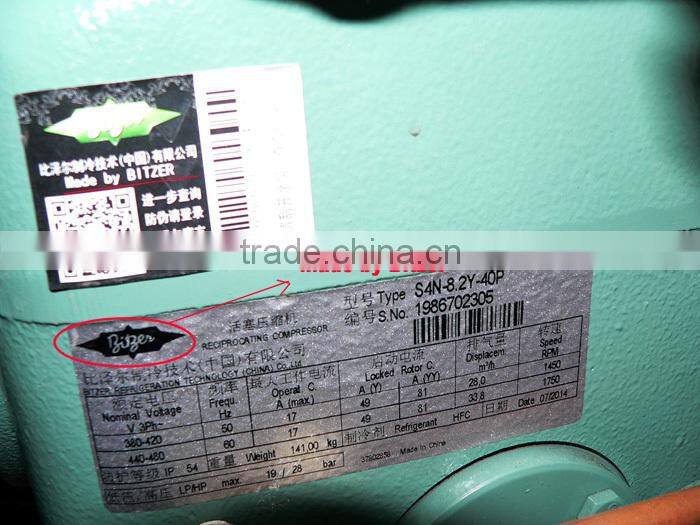

7. Blast freezer Refrigeration unit : Famouse brand BITZER twin-stage Condensing unit
Following is the product information of the Blast freezer for250kg fresh fish freezing in 3hrs
The freezing tempertaure is Minus 35 degrees Celsius
Blast freezer specification
| Model | BF-2-S |
| Blast freezer Unit size | L1860*W1690*H2140 |
| Blast freezer inner temperature | -35C |
| Blast freezer inner capacity | can freezer 250kg fresh fish |
| Freezing time | in 3 hours |
| Temperature change | The temperature fall down from +25C to -18C ( core temperature) in 2 hours |
| trolley | 2 sets |
| trolley size | 500*600*1850mm |
| Refrigeration unit | 8HP Bitzer twin-stage unit ( R404a) |
Blast freezer CONSTRUCTION:
The Blast freezer is included freezing chamber , refrigeration unit, trolleys, slope .

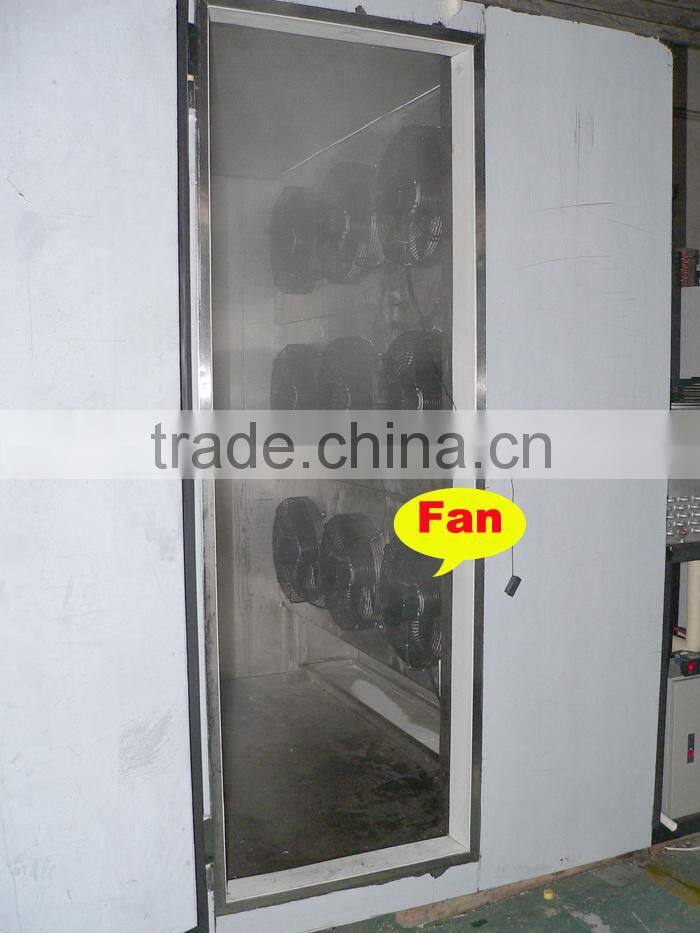

The Blast freezer freezing chamber is constructed of polished type 304 stainless steel, with 2" of CFC-free, high density polyurethane insulation 120mm. The door is equipped with a removable magnetic gasket. The door is with magnetism,which can be auto close .

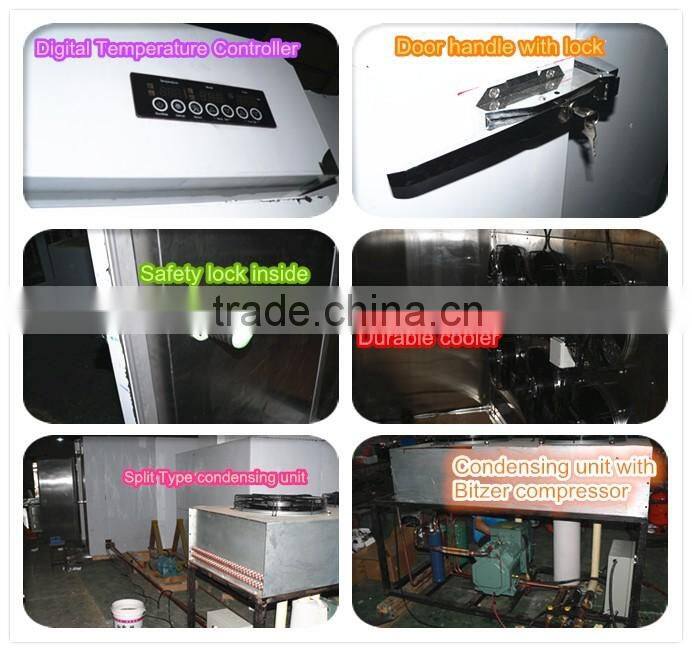

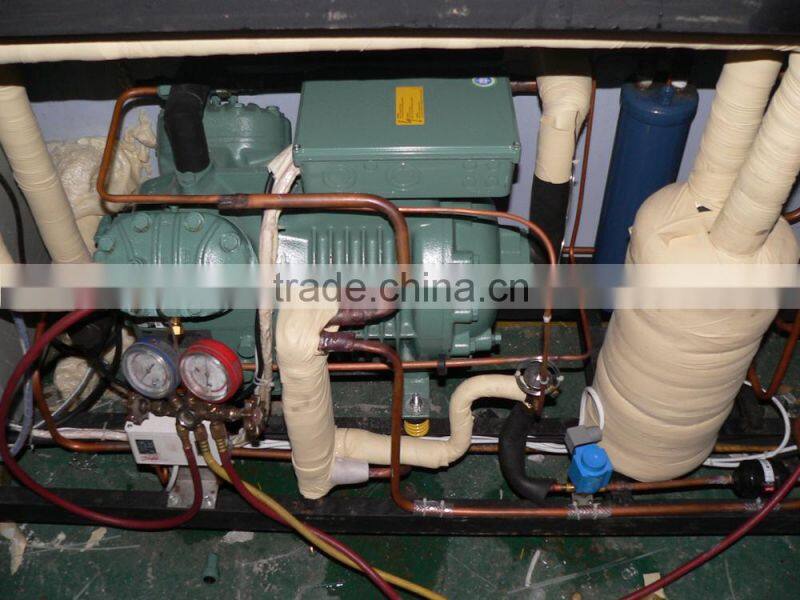

Blast freezer Refrigeration Unit :
The self-contained refrigeration system includes a condensing unit using R-404A refrigerant. The compressor is a twin-stage type with inherent overload protection which is powerful and energy-efficient.
There are two design for the Blast freezer refrigeration unit installation :

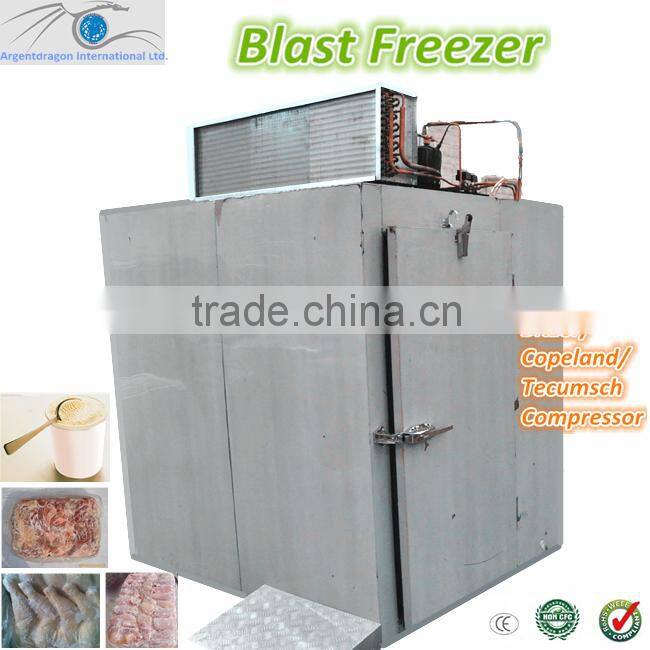

A: The Blast freezer Refrigeration Unit can be installed at the top on the Blast freezer (built-in type refrigeration uint) ,

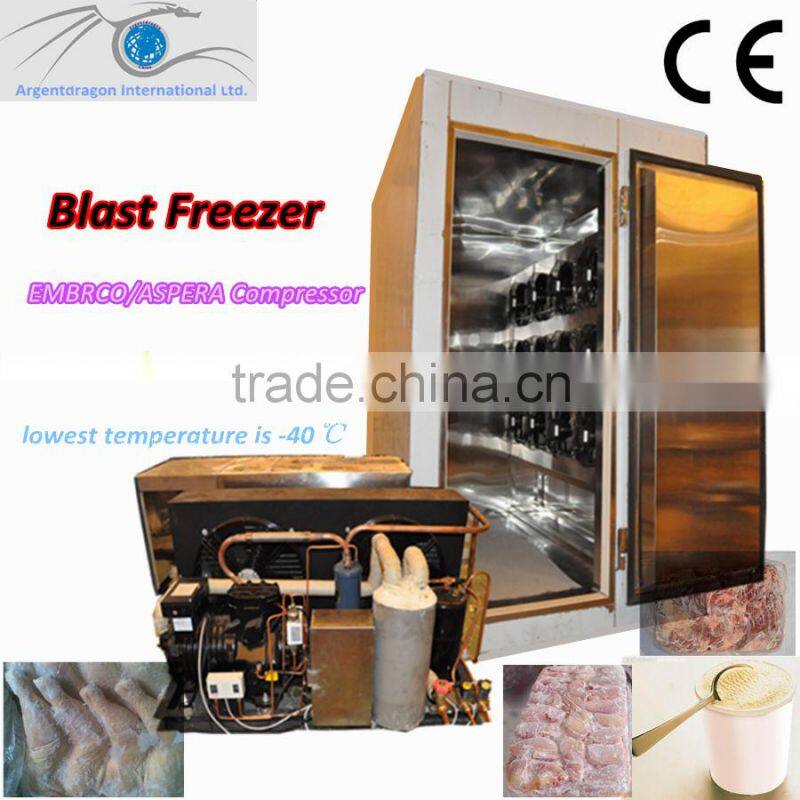

B: The Blast freezer refrigeration unit can be aside the freezing chamber or or installed separate from the Blast freezer ( split refrigeration unit , stand free )
Blast freezer hight quality refrigeration unit can ensure that the food temperature can fall down from +25 degree C to -35 degree C or -45 Degree C (just accprding to the food feature and size) , it can be Auto-defrosting . so there is no frost inside even if the temperature is very low .

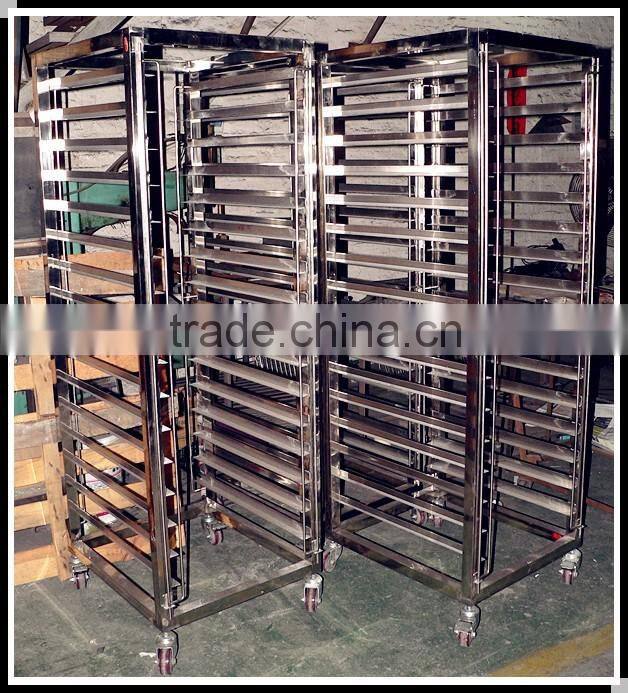

Each Blast freezer will with Trolleys.
Trollery size is 500*600*1850mm

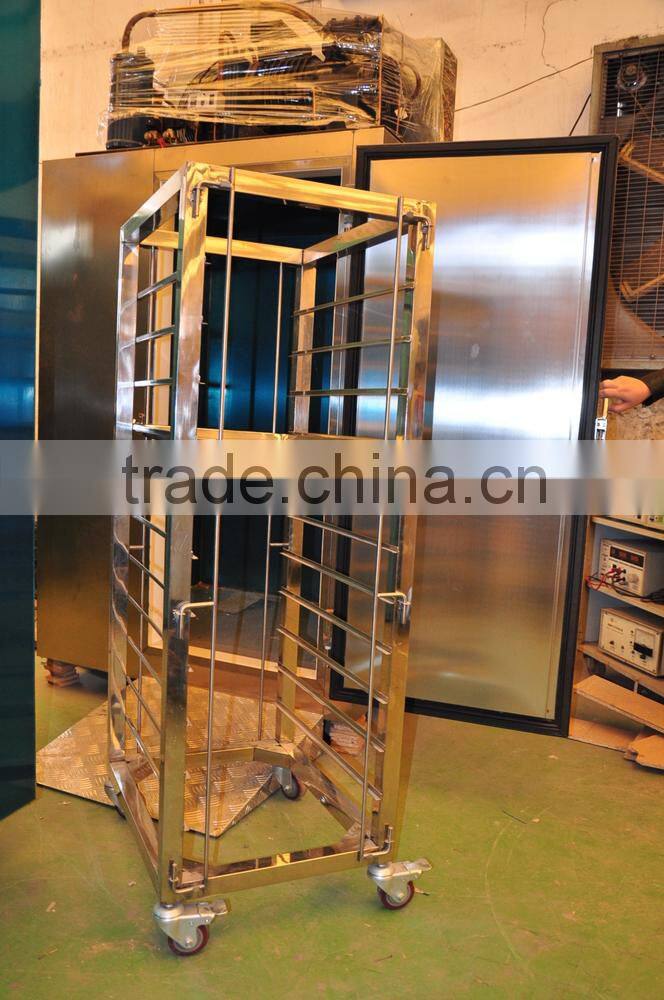

people can put the food on the pan , then put the pan to the trollerys , finally , push the trollerys into the Blast freezer for quick freezing
The Blast freezer is with the slope ,which conventient for the trolleys put into the Blast freezer
Blast freezer door .

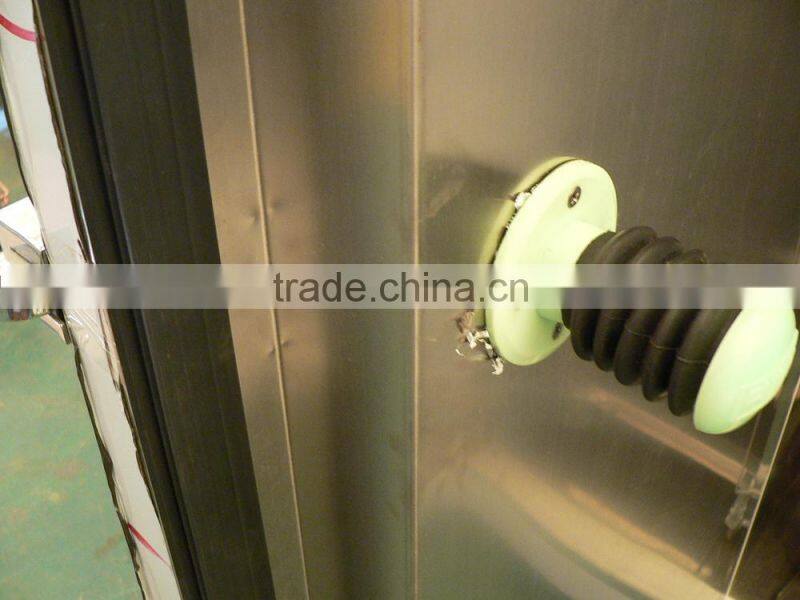

We can design the door can be auto close . Also , we design the door inner with safty lock .It can open the door from the blast freezer inside .
Packaging & Shipping

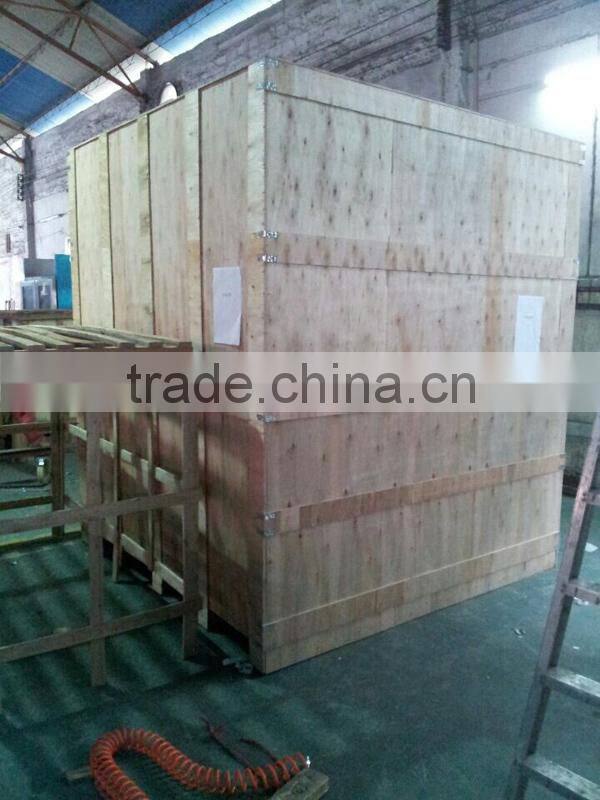

Packaging information for the Blast freezer
1. crate for Blast freezer full container loading
2. plywood case for sample Blast freezer order
3. packaging size : 2000*2010*2300mm
