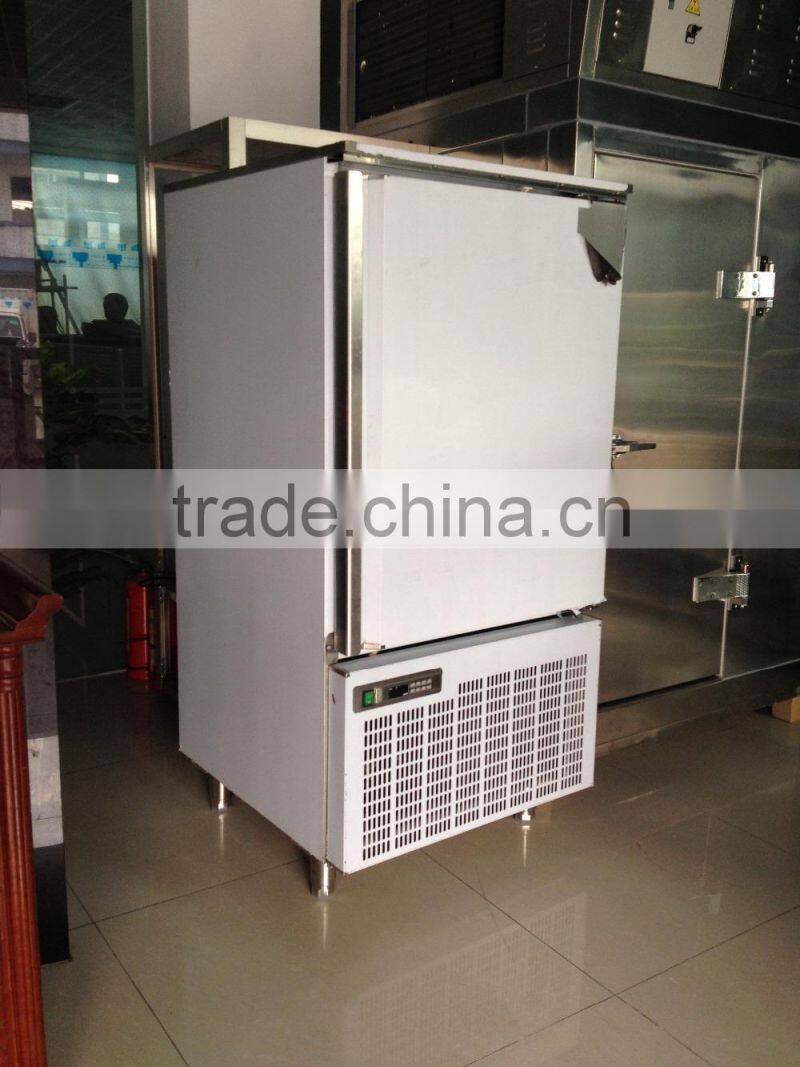

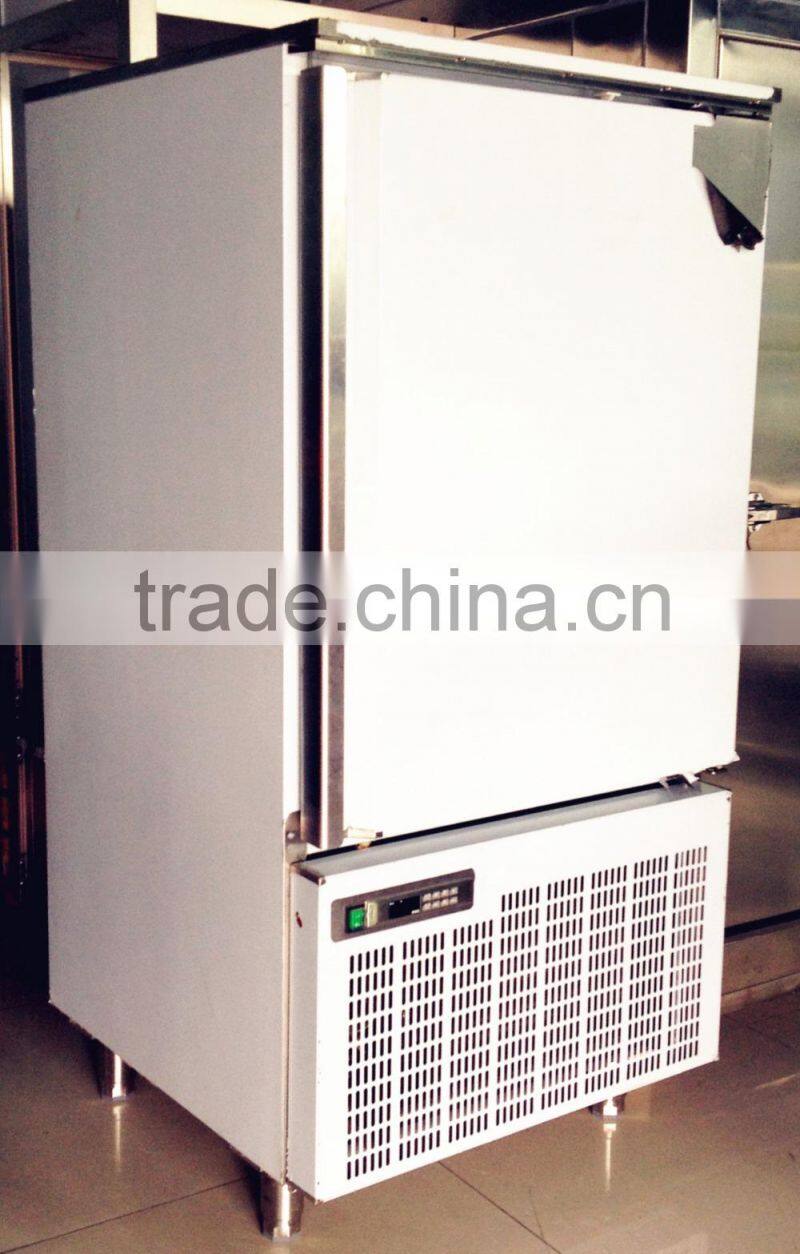

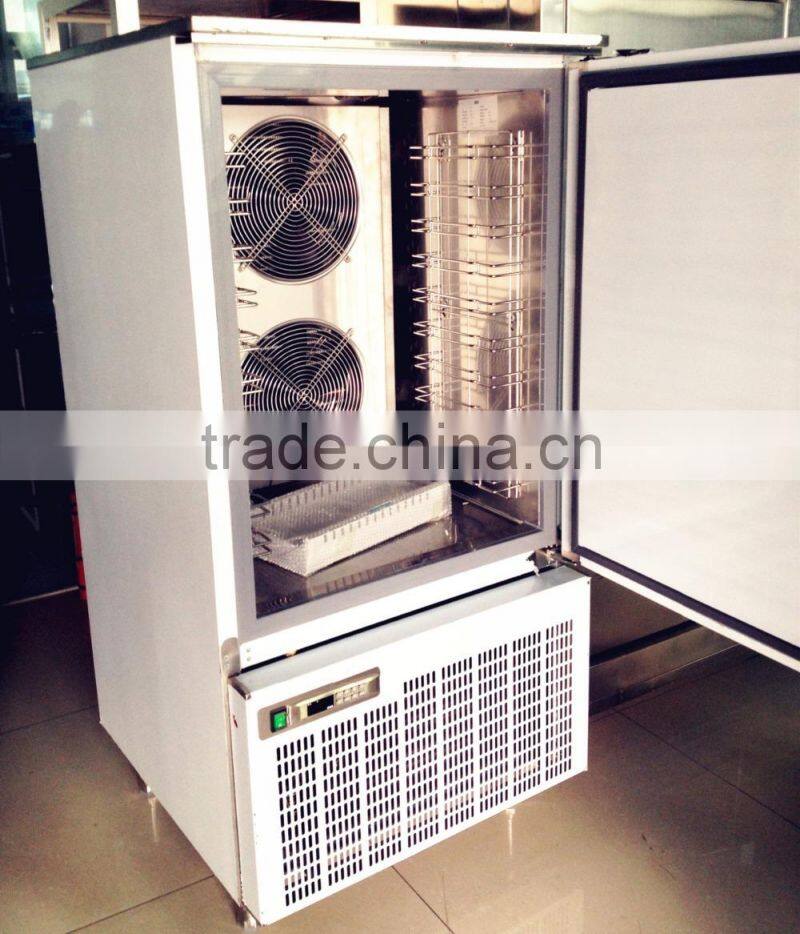

Small blast freezer for quick freezing
Application :
Small blast freezer mainly apply to the restaurant ,cafe, icecream store ,ect .It can freezer/chill the food to the low temperature in very short time . It's mini design !
Small blast freezer specification:
| Model | L3 | L5 | L10 | L14 |
| External size ( L*W*H)mm | 800*815*925 | 800*815*1015 | 800*815*1640 | 800*815*2170 |
| Inner size ( L*W*H)mm | 600*420*330 | 600*420*400 | 600*420*870 | 600*420*1170 |
| temperature 70℃/3℃ (90mins) | 12kg | 18kg | 40kg | 55kg |
| temperature 70℃/-18℃ (240mins) | 8kg | 14kg | 28kg | 38kg |
| power (w) | 984 | 1227 | 1750 | 2800 |
| refrigerating capacity ( -10℃/45℃) | 2080 | 3104 | 4419 | 6222 |
| refrigerating capacity (-30℃/45℃) | 629 | 753 | 1319 | 2016 |
| voltage | 220V/50HZ | 220V/50HZ | 220V/50HZ | 220V/50HZ |
| Melt frost way | Hot gas | |||

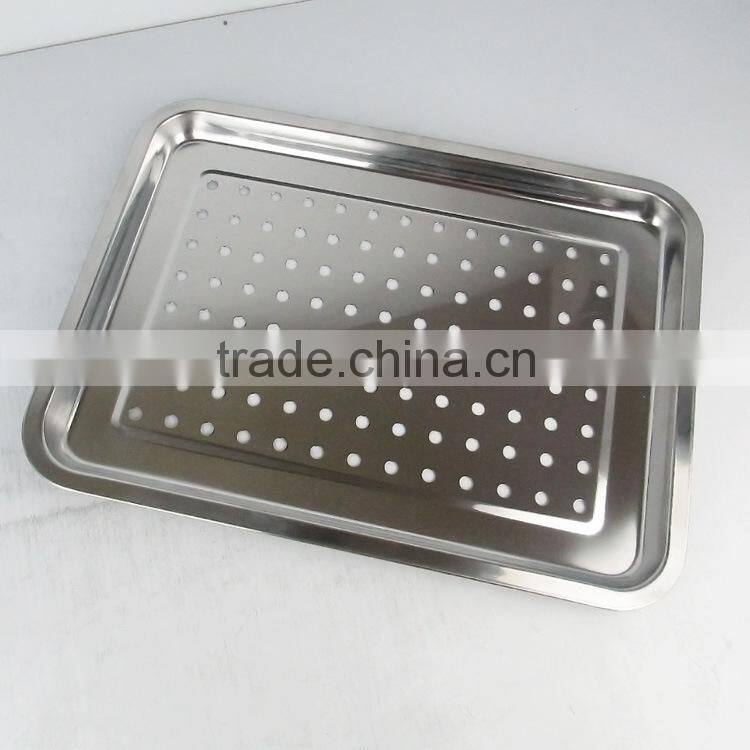

| trays (QTY) GN1/1/530*325*65MM | 3 PCS | 5 PCS | 10PCS | 14PCS |
| 600*400*30MM | 3 PCS | 3 PCS | 10PCS | 14PCS |
| Weight | 119KG | |||
Small blast freezer Product Feature
1. All in stainless steel 304 in both sides , exterior 1.0 mm thick , interior 0.8 mm thick
2. Imported compressor for small blast freezer , famous brand Bitzer /Copeland /Tecumseh(air cooled)
3. small blast freezer can freezer the food from 8kg ~55kg
4. Environment-protection Refrigerant :R404a
5.hight quality with CE Rosh
6. small blast freezer Refrigeration unit : Famouse brand BIZER unit

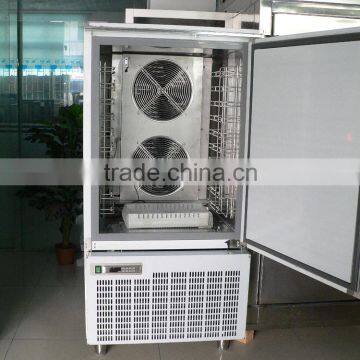

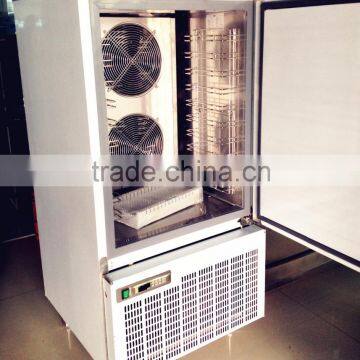

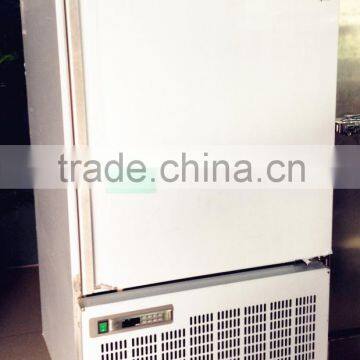

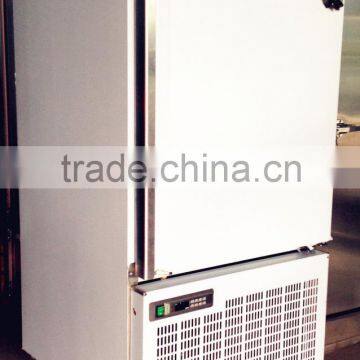

In order to know more about our small blast freezer , please check the following detailed pictures

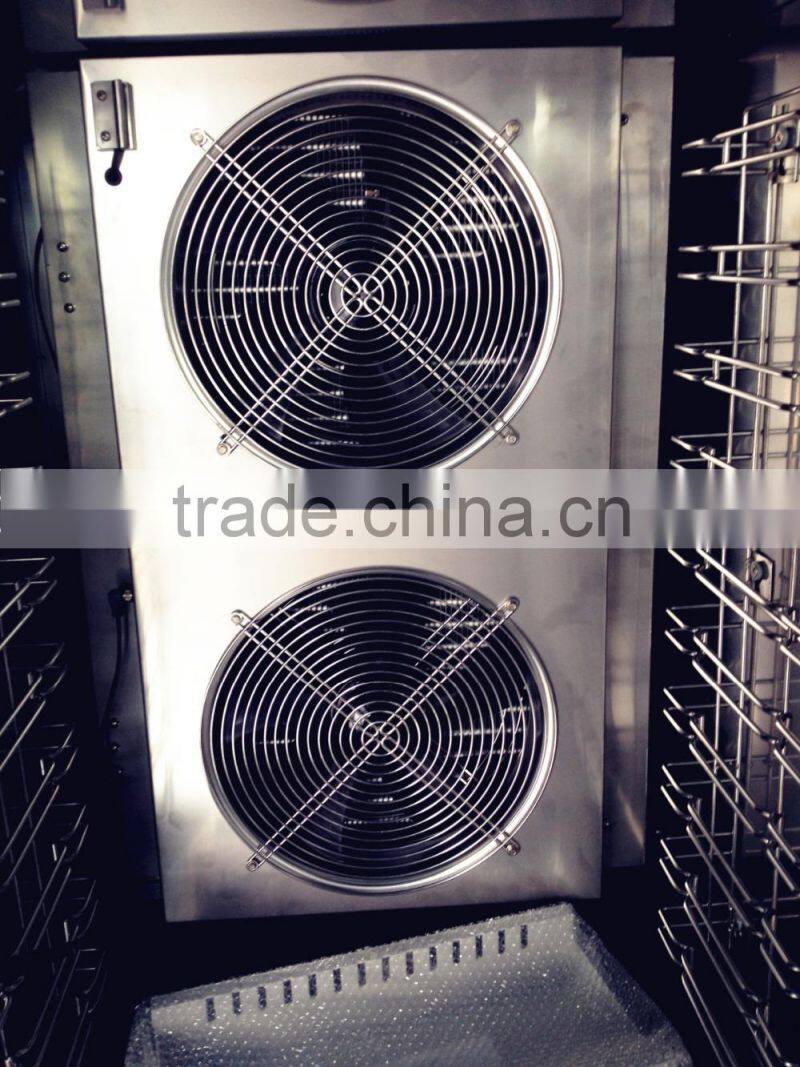

Smaller blast freezer Refrigeration Unit :
The self-contained refrigeration system includes a condensing unit using R-404A refrigerant. The compressor is a semi- hermetic type with inherent overload protection.
All the parts is famous brand
Each small blast freezer will with Trolleys.
Stainless steel panel for small blast freezer
we are the manufacturer to do the small blast freezer , So OEM order is welcome . In order to design the suitable small blast freezer for your , please answer us the following quesions:
| Product ? |
| product(meat or others) length (mm) |
| product(meat or others.) width (mm) |
| product(meat or others) Thick(mm) |
| product(meat or others) weight(kg) |
| product(meat or others) packing |
| Capacity/batch |
| Input temperature(°C) |
| Output temperature(°C) |
| Time to reach the output temperature |
| Product core temperature after freezing(°C) |
| Trolley |
| Votage & Frequency |
| Need any certificates?(CE,ETL,ROHS etc) |
our factory :
