Plastic Rubber Hose MDPE Dredge Pipe Floaters with HDPE Dredge Pipe
- 500000 Meter / Meters per Month
- Qingdao
- T/T Credit Card
Product Details
Place of Origin: | Shandong, China | Brand Name: | Weishan Zhongtian | Model Number: | pipeI.D:150-1000mm, dredging, offshore mining |
Material: | Other, PE, MDPE | Specification: | D.N.:140-1150mm | Length: | 6,12m |
Thickness: | 5-66mm | Standard: | Chinese standard |
Product Description
Specifications
Plastic Rubber Hose MDPE Dredge Pipe Floaters with HDPE Dredge Pipe 1. Material: PE1002. Thickness: 5-66mm
3. Factory direct
Plastic Rubber Hose MDPE Dredge Pipe Floaters with HDPE Dredge Pipe
I. Specifications
Floaters for dredging pipe Foam filled
High visibility color
For dredging and other marine application
Dredge pipe floaters
II. Plastic Floater for Dredging Pipe
The hull of MDPE floater is made from high wear resistant medium density polyethylene (MDPE) , filled with closed-cell polyurethane foam inside. With reasonable structure and good performance, the MDPE floater becomes the best substitution of the traditional steel floater for the floating dredging pipe. It is widely used as floater in dredging and marine oil industry.
III. Standard sizes (Customized sizes available)
Pipe I.D. | Thickness of pipe | Floater I.D. | Floater O.D. | Floater Length. | Hull Thickness | Net Buoyance |
mm | mm | mm | mm | mm | mm | kg |
200 | 6 | 220 | 500 | 800 | 7 | 200 |
285 | 6 | 300 | 700 | 1200 | 7 | 420 |
350 | 6 | 375 | 1100 | 1100 | 7 | 920 |
400 | 8 | 414 | 1100 | 1200 | 8 | 1020 |
414 | 8 | 430 | 1200 | 1200 | 8 | 1200 |
450 | 8 | 480 | 1300 | 1300 | 8 | 1500 |
500 | 10 | 530 | 1400 | 1550 | 9 | 2219 |
550 | 10 | 580 | 1400 | 1600 | 10 | 2310 |
600 | 10 | 630 | 1400 | 1700 | 11 | 2400 |
650 | 10 | 680 | 1480 | 1800 | 11.5 | 2930 |
700 | 12 | 730 | 1600 | 1900 | 12 | 3593 |
750 | 12 | 780 | 1600 | 2000 | 13 | 3800 |
800 | 15 | 830 | 1800 | 2000 | 14 | 4800 |
850 | 15 | 880 | 1800 | 2200 | 15 | 5140 |
900 | 18 | 940 | 2200 | 2500 | 16 | 8180 |
Remark: 1. A float is comprised of two halves connceted by galvanized bolts. 2. Floaters under the size of 4m(O.D.)X4m(L) are all available 3. Customized designs available. |
IV. Features & Advantages:
1.Light weight, easy for transportation, installing and uninstalling
2. High visibility colors, giving a warning sign to the nearby vessel.
3. Good wind and wave resistance, wear resistance, impact resistance, corrosion resistance
4. Long service life
V. Factory Advantage:
1. OEM/ODM accepted
2. Small order acceptable
3. High quality with competitive price
4. Prompt delivery
VI. Reference pictures:

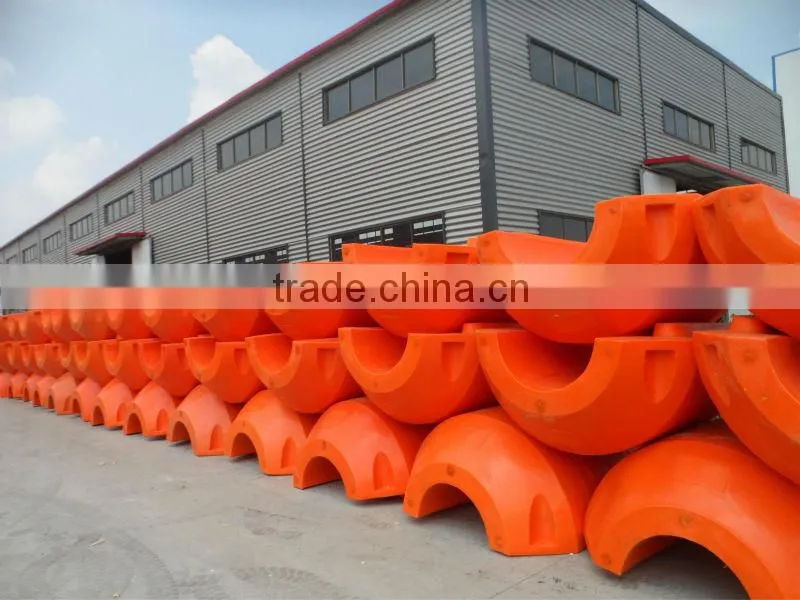

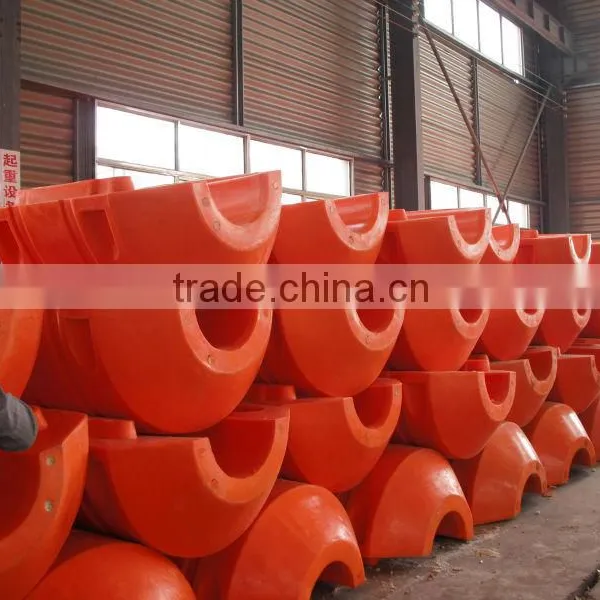

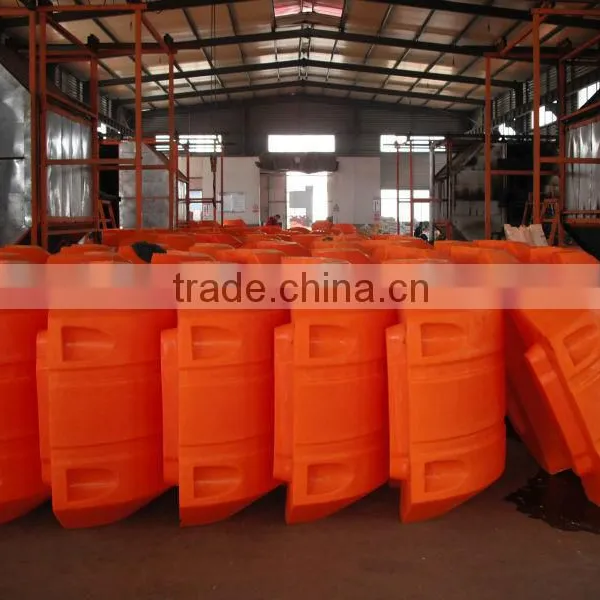

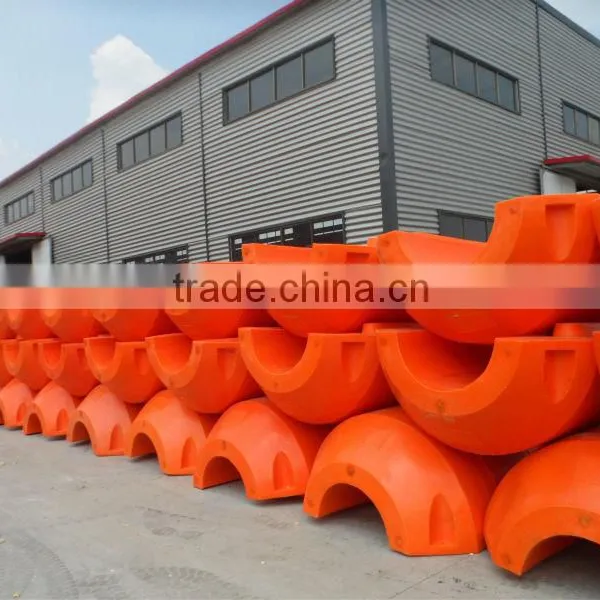

MDPE pipe floats are manufactured in bright colors(mainly orange or yellow) to act as warning signs to other vessels in the vicinity. They will give off lights when illuminated.

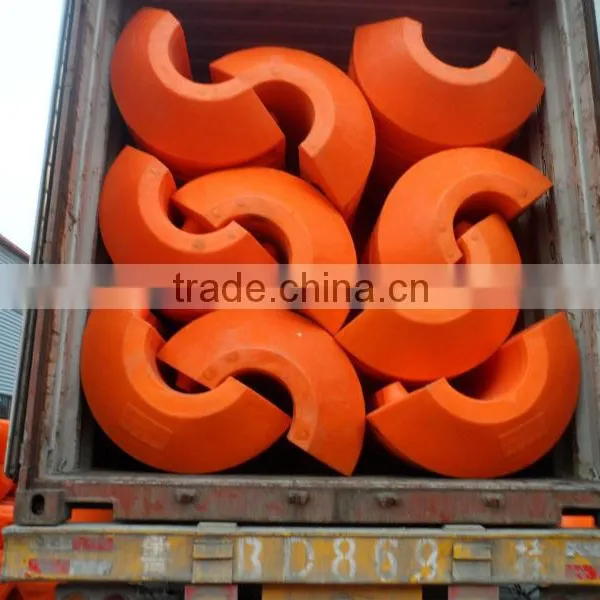

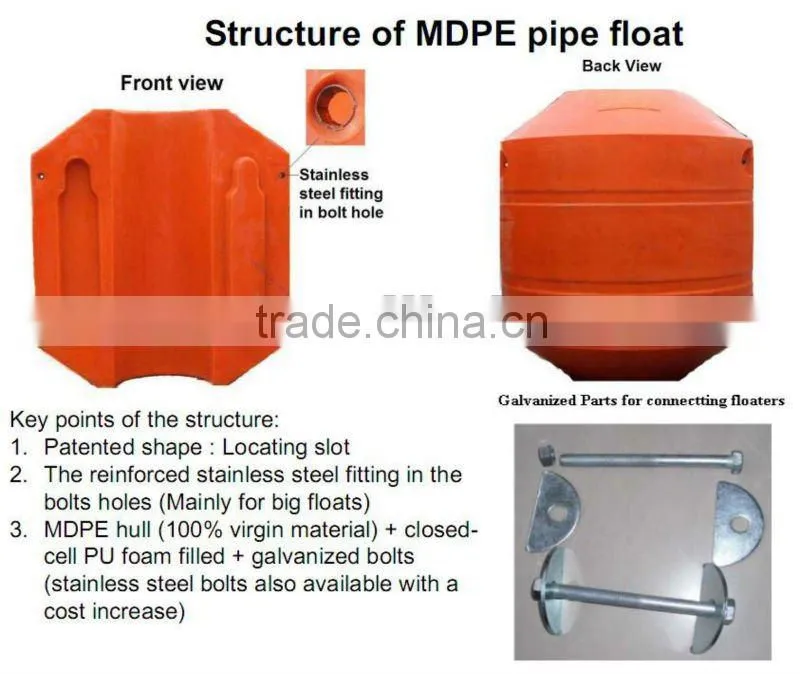

A complete floater composed of two halves connected by galvanized bolts. The bolt hole are reinforced by stainless steel to ensure a safe and secure connection to the pipe.

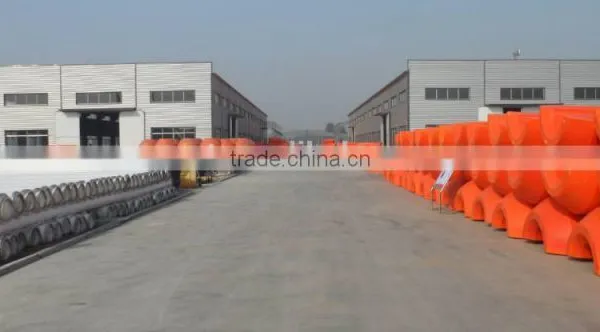

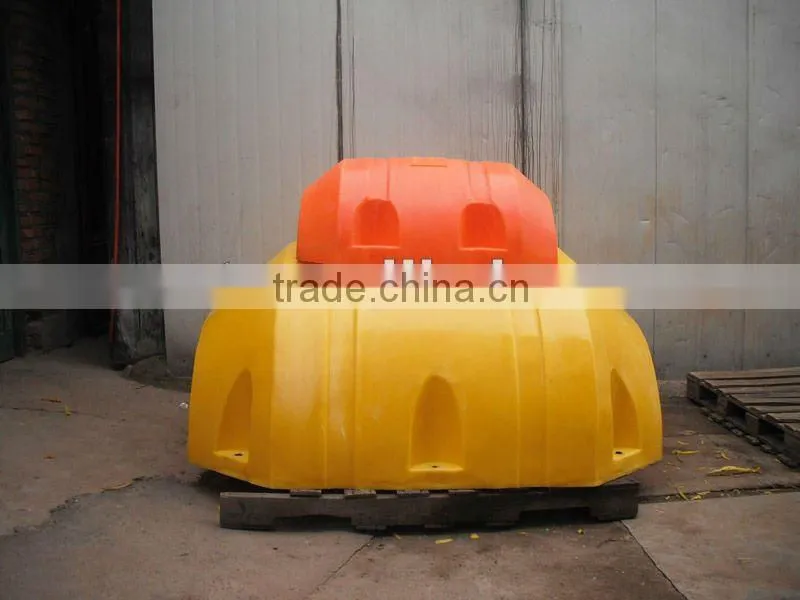

Floats can be manufacuted in different sizes ranged from 500*800mm to 2200*2500mm

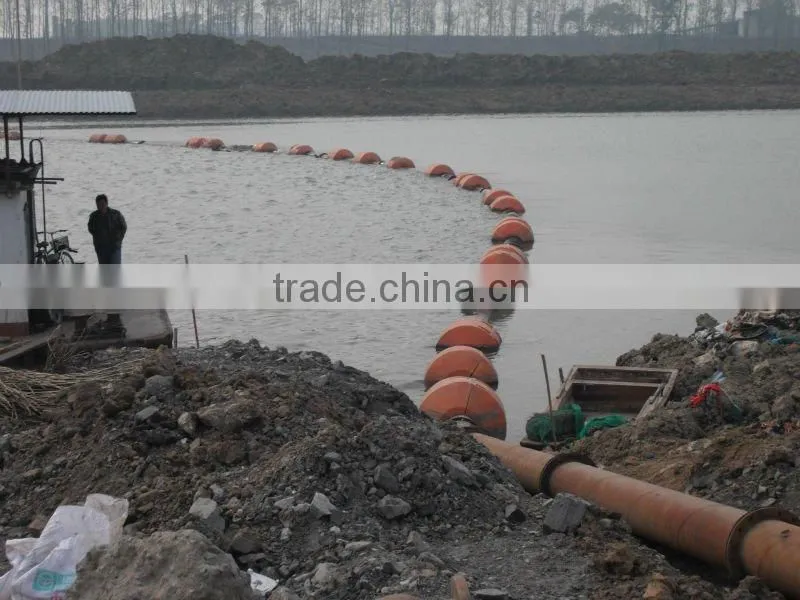

Floats in a river dredging project

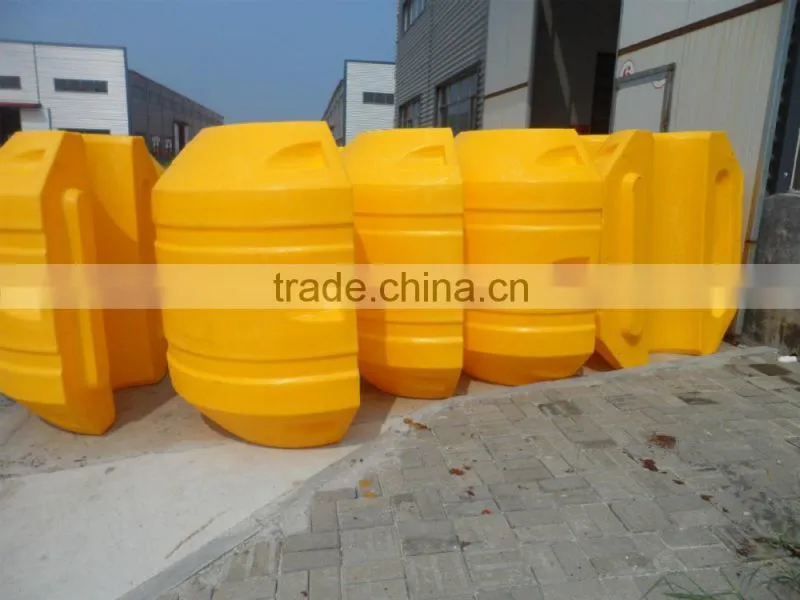

Floats (a whole shape without connections )also can be used as the floation parts in a small gold dredge

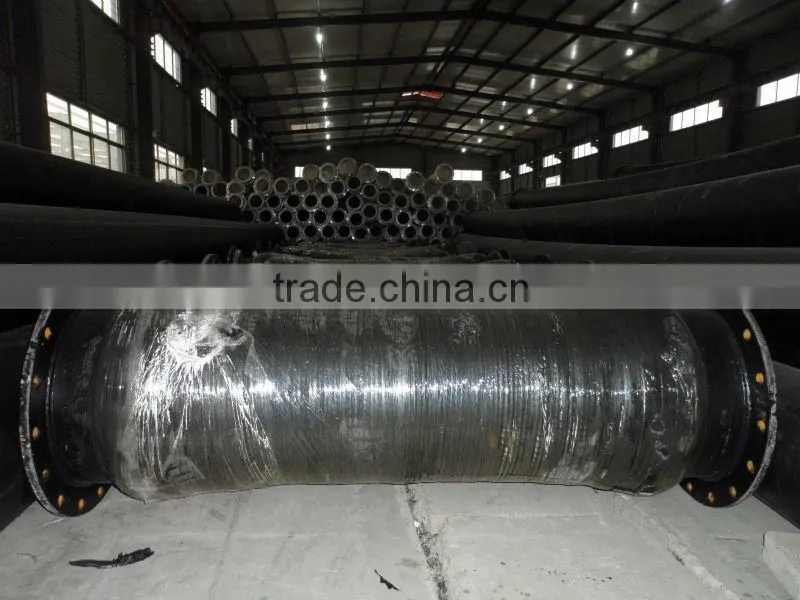

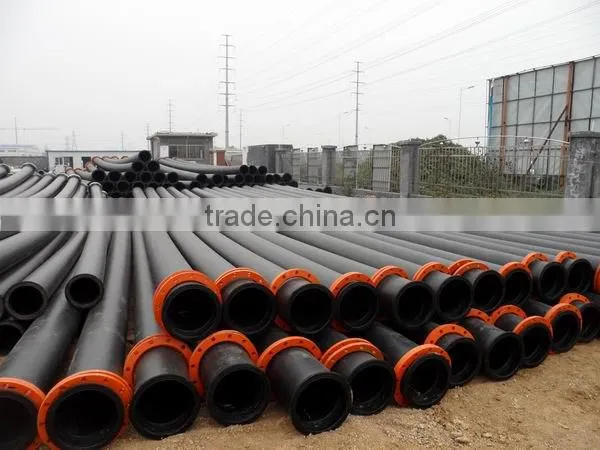

Main products

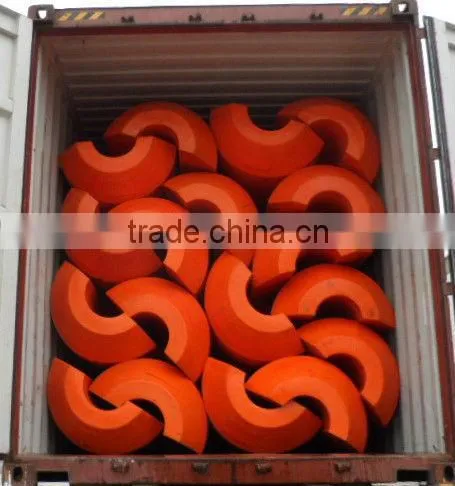

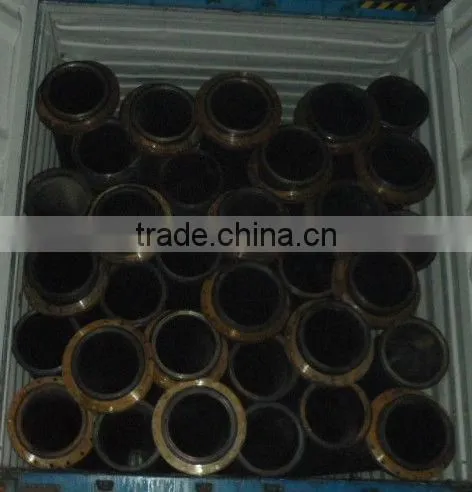

Packing:
For more technical details and e-catalogues, please feel free to contact us, and we will answer you soonly.
Crystal
Sale
Tel: +86-537-2328515
Skype:crystal.bai7
Mobile(WhatsApp): +86-183 6479 0825
