Specifications
lcd display retail store7 Inch Open Frame
4-7 Push Button control
suit for install cardboard/pos/pop display

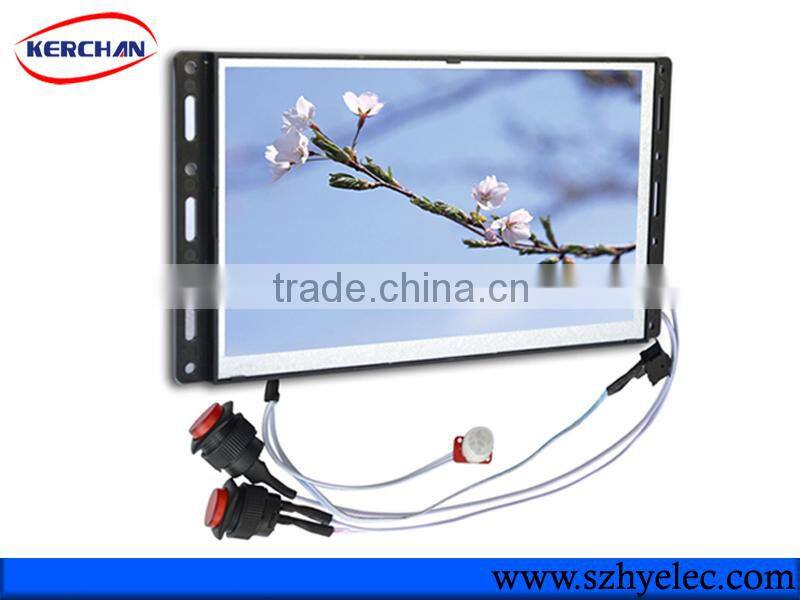

button activated 7 Inch lcd display retail store with open frame
Main Feature
1. Play from Memory card(SD/MMC/MS),USB host;
2. Auto Copy from USB to SD card;
3. Built with 4 Flash Buttons: buttons flash 1time per second when no playing track, selected track button will be lit. (6 buttons is maximum)
4. Built with Push Button:
1). The device will be off always, after pressed the button, it will be on and play the files in designated folder for one time,then be off automatically;The responsing time is less than 2 seconds
or 2). The device will play the files in folder "0" in a loop, after pressed the button, it will play the files in designated folder for one time, then go back to the default files;
5. Support Multiple File Format: JPG, WMA, MP3, MPEG 1/2/4, AVI
6. Power Supply:110-240V AC/DC 12V
Panel data and specification
| Panel Data | ||||||
| Panel Size | 7" | |||||
| Display Ratio | 16:9 | |||||
| Resolution | 800 x 480 | |||||
| Color | 16.7M | |||||
| Pixel Pitch (mm) | 0.0642(W) x 0.1790(H) | |||||
| Brightness (nits) | 250cd/m2 | |||||
| Contrast | 400:1 | |||||
| View Angle | 70/70/50/70 | |||||
| Response Time | 10ms | |||||
| Life (hrs) | 25000 | |||||
| Specification | ||||||
| Material | Plastic Open Frame | |||||
| Installation | VESA Standard Mounting Hole | |||||
| Unit Size | 188*104*23mm | |||||
| Image Resolution | 5000 x 5000p Max | |||||
| Video Resolution | 720 x 480p Max | |||||
| Internal Memory | Don't Support | |||||
| Speaker | 2 x 1W Built-in, 4x3.5mm Audio Out Jack | |||||
| Remote Controller | Don't Support, No Setting Menu | |||||
| Menu Language | English, Germany, French, Spanish, Russian and Others | |||||
| Power Supply | 100-240V AC / 12V DC or Battery Pack | |||||
| Power Consumption | 180Ma for playing, 0.5Ma for Standby | |||||
| Working temperature | 0C~50 C | |||||
| Storage temperature | -20C~60C | |||||
| Working humidity | 85% | |||||
| Packing | 10pc/ctn, 45.5*31*42 cm, N.W.: 14.5 kg, G.W.: 15.5 kg | |||||
| Standard Color | Black | |||||

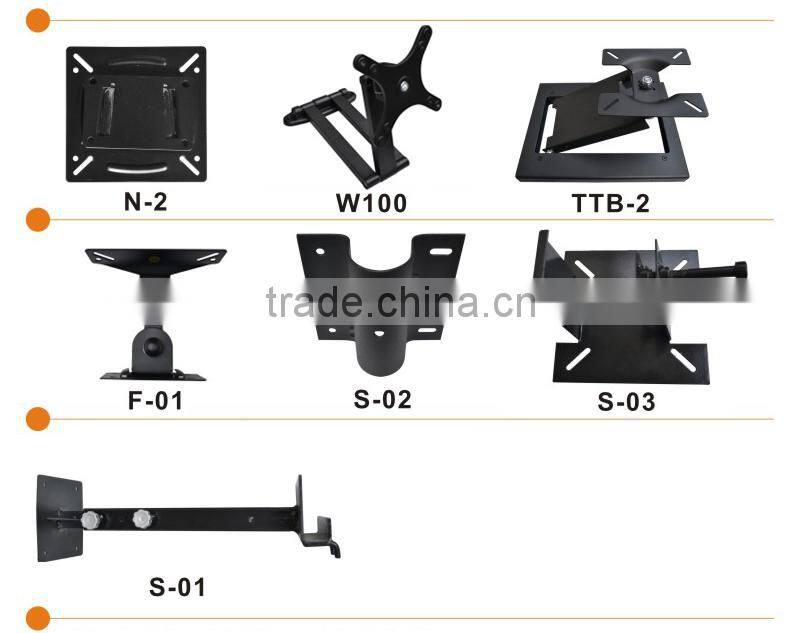

Optional Brackets
1. Sample is available for your evaluation. The lead time for sample is 5-7days.
2. Fully customizable for the outlook and some functions.
3. 1 year quality warranty, perfect after-sell service.
4. Supply express/Air shipping service from Kerchan shipping agents
Enterprise goal: To be a first class company providing a very satisfying and friendly experience to our customers and our staff
8 years advertising players manufacturer
We have provided advertising solutions to 1252 customers
In 2013, our annual exported volumn reached $13 million
186 containers have been exported
Q: What HS Code for your products?
A: 8531200000 LCD ad player (LCD video display) 8543 7099 90 Digital Photo Frame
Q: What kind of inspection you can provide?
A: Kerchan has multiple tests from material purchasing to finished products by different departments, like QA, QC, sales representative, to guarantee all signage players are in perfect condition before shipment. We also accept the inspection by the third party you appointed.
Q: What is your guarantee period?
A: Kerchan provides 1 (one) year quality guarantee for the products from your purchase date, except the human damage and force majeure factor. For a better maintenance, be sure that the players are using under normal circumstances (not more than 16 hours daily). Beyond the guarantee period machine, Kerchan will provide maintenance service and technical support (Hardware and other possible charges, Kerchan will not bear the responsibility)
Q: How can I pay for the order?
A: Our payment terms: T/T, Western Union, Paypal, Escrow, Credit card
1) For sample order: 100% T/T or Western Union in advance, Paypal or Escrow is also acceptable.
2) For bulk order: 30%deposit T/T in advance, balance clear before pick up or shipment.
