Specifications

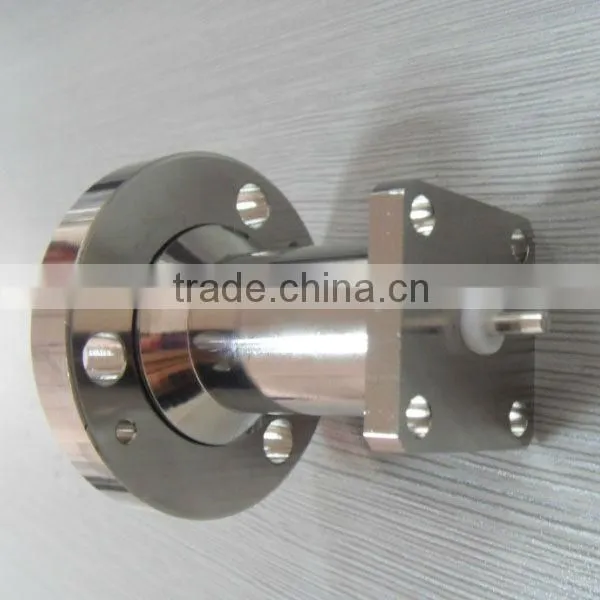

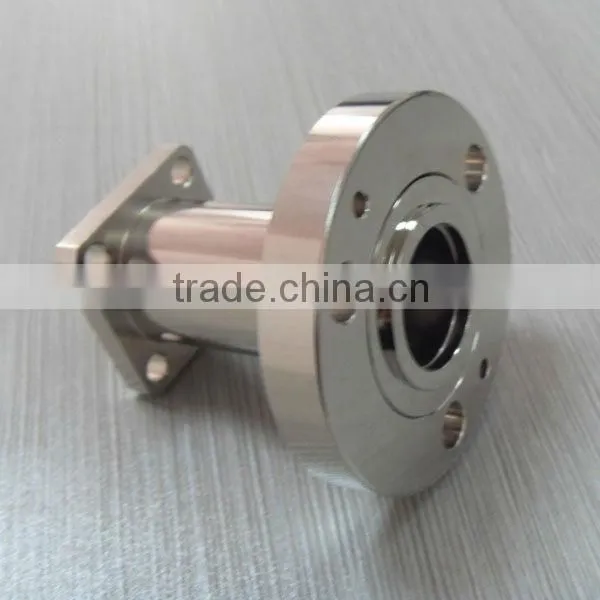

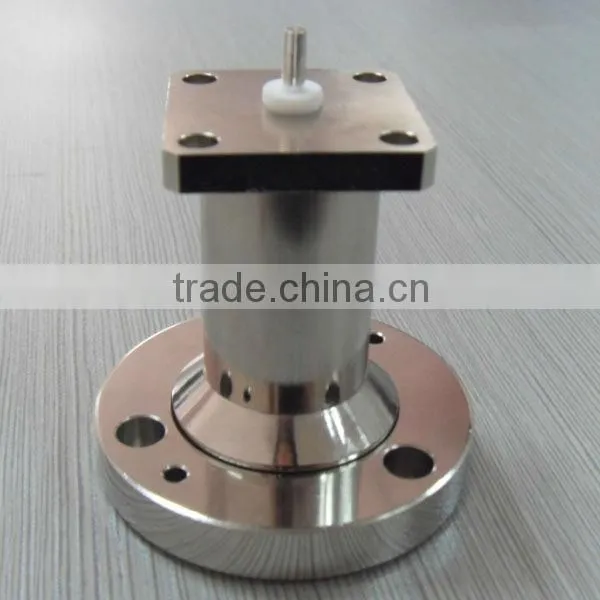

7/8 eia connector1SpecificationsApplicable Standard :IEC 60169
2Low VSWR
| Place of Origin: China (Mainland) | Brand Name: TWINLINK | Model Number: EIA7/8 |
| Application: RF | Certifications: ISO9001,ISO14000 |
| Packaging Detail: | as customers' requirements |
| Delivery Detail: | 15days after receiving T/T in advance |
SpecificationsApplicable Standard :IEC 60169
Low VSWR ; Low PIM3
material: brass
plating: gold or nickel
Minimum Testing Standard
1. Waterproof:
IP68 grade, drop into 1 metre deep water, and take it out after 24 hours later, there is no water seepage indication arriving.
2. Salt Mist Testing
5% concentration salt mist testing standard
Au plated, minimum 96 hours
Ag plated, minimum 336 hours
CuSnZn3 plated, minimum 336 hours
3. Aging testing
Aging testing equipment temperature standard is minimum 85 degree, take the production out after 24 hours later from the machine, the mechanical characteristics still in the standard range
Packng details
Tinlink will try our best to insure the packing and transportation process, to make sure our customers received the perfect cargo.
We have different packing method to meet our customers requirement.
| Standard Packing |
| Packing Details: Foam + Carton Blister + Carton Vacuumize + Blister + Carton Vacuumize + Foam + Carton |
