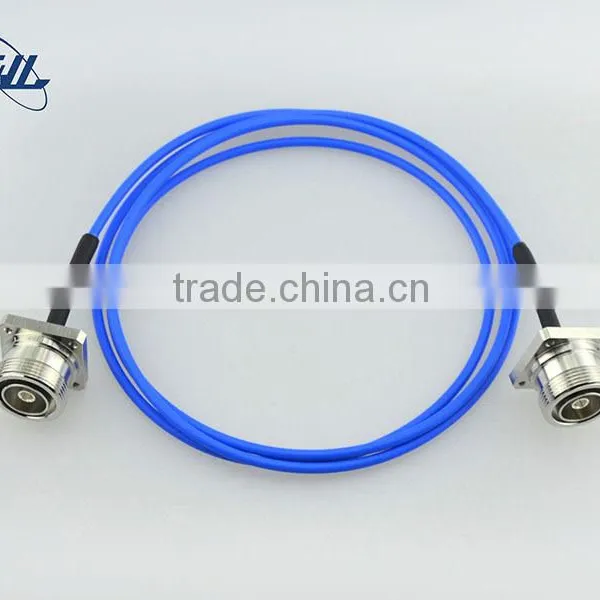

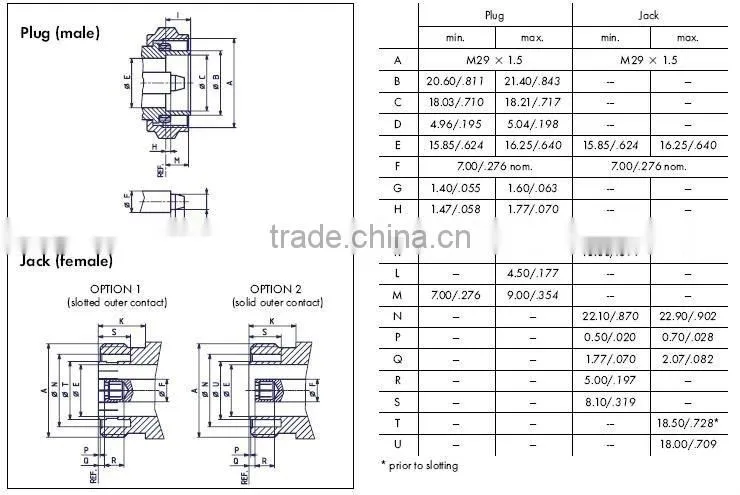

TWL 7/16 DIN Cable Assembly
Mechanically very rugged coaxial connectors with screw lock. They have a characteristic impedance of 50 , applicable with excellent electrical properties up to 7.5 GHz.
DIN 7/16 connectors are designed for the transmission of medium to high power in transmitting stations and low loss transmission of received signals such as in mobile phone base stations are typical applications.
Low intermodulation products and water-proof types are also available. for these purposes.
| ELECTRICAL DATA | |
| Impedance | 50Ω |
| Frequency Range | 0-7.5GHz |
| Dielectric withstanding voltage (at sea level) | 4000 V rms,50Hz |
| Working voltage (at sea level) | 2500 V rms,50Hz |
| Insulation resistance | ≥ 100000 mΩ |
| Contact resistance | Inner conductor: ≤0.4mΩ |
| Outer conductor: ≤1.5mΩ | |
| RF leakage (at 1 GHz) | ≥128dB |
| MECHANICAL DATA | |
| Coupling nut torque | Recommended: 25Ncm--30Ncm / 221 in. lbs--260 in.lbs |
| Proof torque: 35 Ncm / 310 in.lbs | |
| Coupling nut retention force | ≥1000N / 225.0 lbs |
| Contact captivation | ≥200N / 45.0 lbs |
| Durability (matings) | ≥500 |
| ENVIRONMENTAL DATA | |
| Temperature range | -65°C to +165°C |
| MATERIAL DATA | |
| Bodies | Brass--ternary alloy plating |
| Pin contacts | Brass--Au/Ag plating |
| Socket contacts | Phosphor bronze / Beryllium copper--Ag plated |
| Crimp ferrules | Copper--ternary alloy plating |
| Insulator | PTFE |
| Gaskets | Silicone rubber |
| Applicable Standard |
| CECC 22190 IEC 60169-4 DIN 47223 |
Minimum Testing Standard
1. Waterproof:
IP68 grade, drop into 1 metre deep water, and take it out after 24 hours later, there is no water seepage indication arriving.
2. Salt Mist Testing
5% concentration salt mist testing standard
Au plated, minimum 96 hours
Ag plated, minimum 336 hours
CuSnZn3 plated, minimum 336 hours
3. Aging testing
Aging testing equipment temperature standard is minimum 85 degree, take the production out after 24 hours later from the machine, the mechanical characteristics still in the standard range
Packing Details
Tinlink will try our best to insure the packing and transportation process, to make sure our customers received the perfect cargo.
We have different packing method to meet our customers requirement.
| Normal Packing |
| Packing Details: Foam + Carton Blister + Carton Vacuumize + Blister + Carton Vacuumize + Foam + Carton |
Vacuumize
Vacuumize + Carton
Foam
Blister
