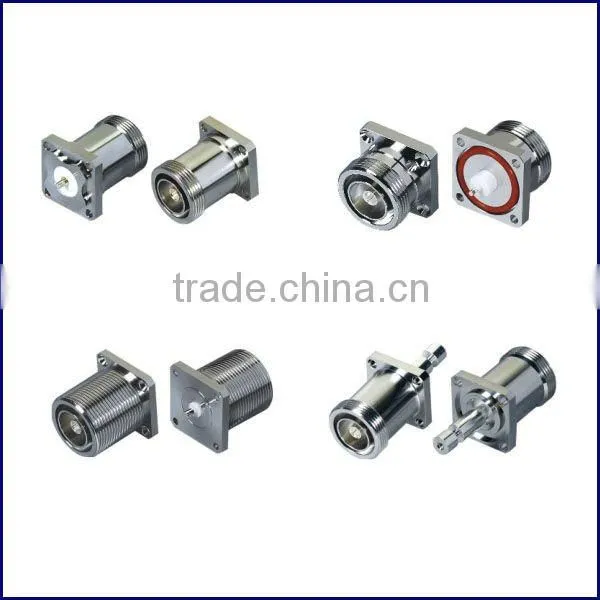

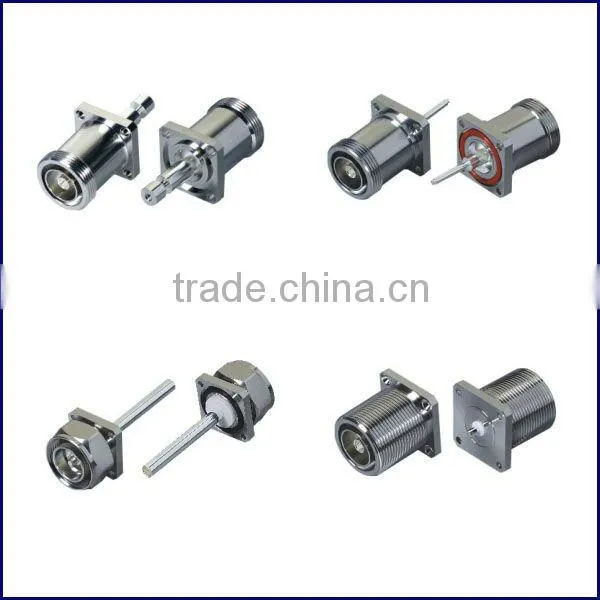

Din 7/16 RF Connector /7/16 Connector/ RF Connector
Mechanical Characteristics | |
ELECTRICAL DATA |
|
Impedance |
50Ω |
Frequency Range |
0-7.5GHz |
Dielectric withstanding voltage (at sea level) |
4000 V rms,50Hz |
Working voltage (at sea level) |
2500 V rms,50Hz |
Insulation resistance |
≥ 100000 mΩ |
Contact resistance |
Inner conductor: ≤0.4mΩ |
Outer conductor: ≤1.5mΩ |
|
RF leakage (at 1 GHz) |
≥128dB |
MECHANICAL DATA |
|
Coupling nut torque |
Recommended: 25Ncm--30Ncm / 221 in. lbs--260 in.lbs |
Proof torque: 35 Ncm / 310 in.lbs |
|
Coupling nut retention force |
≥1000N / 225.0 lbs |
Contact captivation |
≥200N / 45.0 lbs |
Durability (matings) |
≥500 |
ENVIRONMENTAL DATA |
|
Temperature range |
-65°C to +165°C |
MATERIAL DATA |
|
Bodies |
Brass--ternary alloy plating |
Pin contacts |
Brass--Au/Ag plating |
Socket contacts |
Phosphor bronze / Beryllium copper--Ag plated |
Crimp ferrules |
Copper--ternary alloy plating |
Insulator |
PTFE |
Gaskets |
Silicone rubber |
DIN 7/16 Series Connector
Applications
• |
Antennas |
• |
Base Stations |
• |
Broadcast |
• |
Cable Assembly |
• |
Components (Control) |
• |
Lightning Protection |
• |
Satcom |
