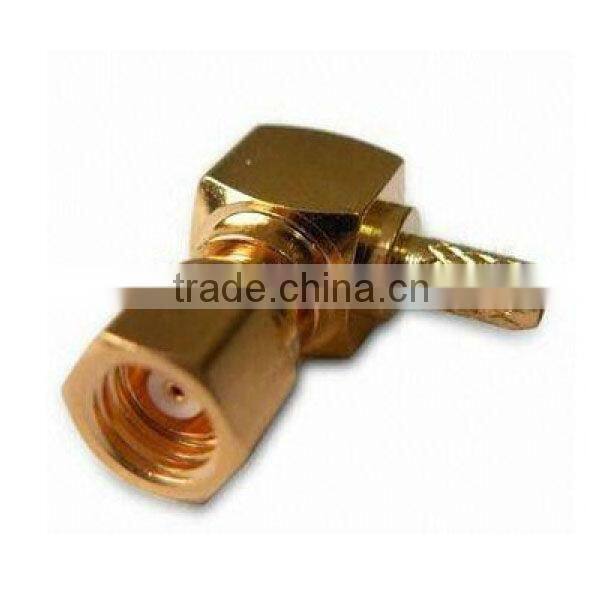

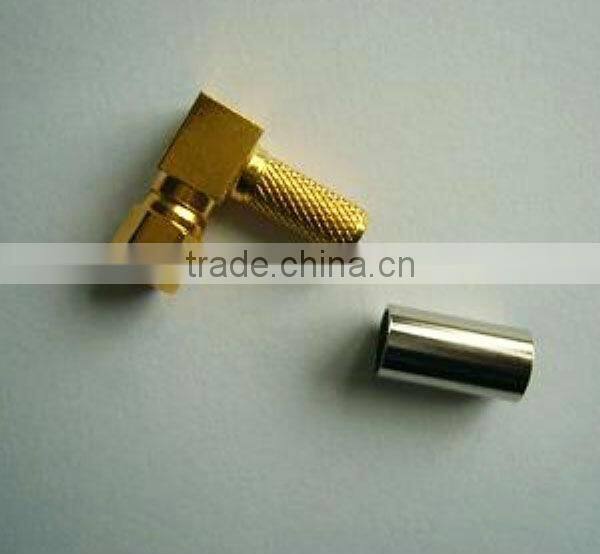

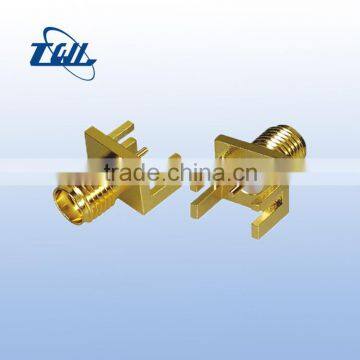

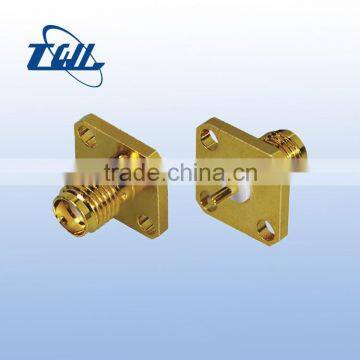

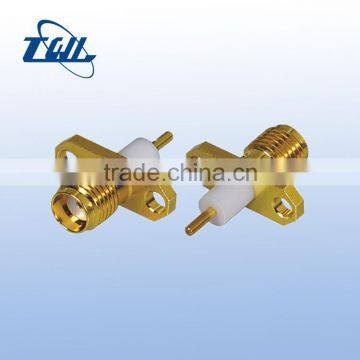

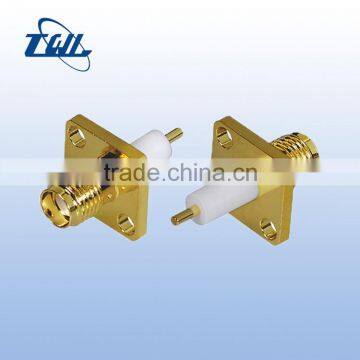

Gold Plated SMC Female Right Angle Connector
The SMC subminiature connector series is based on the sam design as the SMB and SMS series. Due to its screw-on coupling mechanism, SMC connectors are suitable for applications up to 10 GHz.
The threaded coupling mechanism permits a vibration-proof connection which is ideal for semi-permanent connections and for the use in mobile equipment with low VSWR requirements.

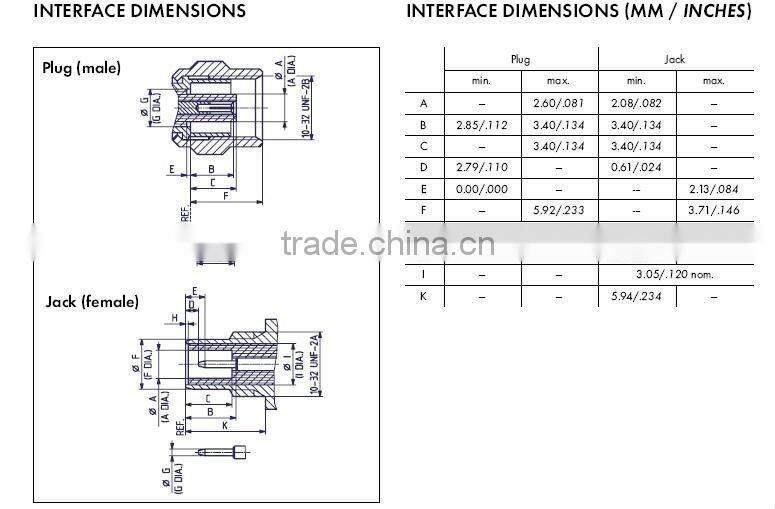

| ELECTRICAL DATA | |
| Impedance | 50Ω |
| Frequency Range | 0-10GHz |
| Dielectric withstanding voltage (at sea level) | ≥750-1500V,50Hz (depending on cable) |
| Working voltage (at sea level) | ≥250-3000V,50Hz |
| Insulation resistance | ≥ 10000 mΩ |
| Contact resistance | Inner conductor: ≤5mΩ |
| Outer conductor: ≤2.5mΩ | |
| RF leakage | ≥90dB |
| MECHANICAL DATA | |
| Coupling nut torque | Recommended: 25Ncm--35Ncm / 2.2 in. lbs--3.1 in.lbs |
| Proof torque: 71 Ncm / 6.2 in.lbs | |
| Coupling nut retention force | ≥150N / 33.72 lbs |
| Contact captivation | ≥10N / 2.25 lbs |
| Durability (matings) | ≥500 |
| ENVIRONMENTAL DATA | |
| Temperature range | -65°C to +165°C |
| MATERIAL DATA | |
| Bodies | Brass--Au plating / ternary alloy plating |
| Pin contacts | Brass--Au plating |
| Socket contacts | Copper beryllium alloy--Au plating |
| Crimp ferrules | Brass--Au plating |
| Springs | Copper beryllium alloy--Au plating |
| Insulator | PTFE |
Packing
Tinlink will try our best to insure the packing and transportation process, to make sure our customers received the perfect cargo.
We have different packing method to meet our customers requirement.
| Normal Packing |
| Packing Details: Foam + Carton Blister + Carton Vacuumize + Blister + Carton Vacuumize + Foam + Carton |
