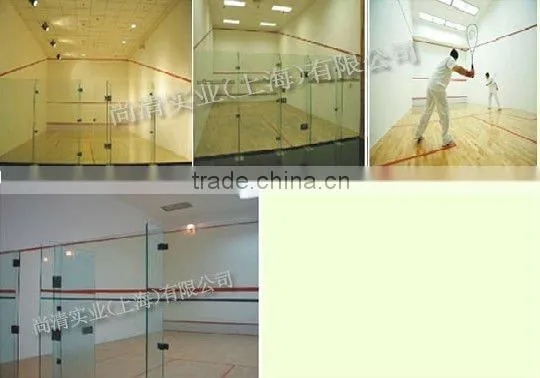

First, the venue standards (international standard competition venues) width 6.4 m, 9.75 m long, before 4.57 meters high, after a high of 2.13 meters, the ceiling height of 5 to 6 m, the castanets height 0.48 m, height of 1.83 meters of the front service line tee ground line is 4.26 meters away from the back wall of the half-way line bisected by ground service line and the back wall from the center to the left and right, the service area is 1.6 meters square. Second, the technical standard wall system: 6mm thick the United States SPORTWALL elastic plaster system floor system: 22mm thick maple floor glass back wall system: 12mm thick tempered glass and hardware accessories
Squash a combination of (a) material properties of the wall system: (1) This product is a resin matrix, non-the general water soluble system in the maintenance period after completion of the ash, the walls will not be due to water evaporation and shrinkage cracks , nor will there be a problem of to breeding algae or moss; do not need to repeat the sprinkler ash matrix to induce sufficient strength, it will not create an adverse impact on the floor, or destruction; This product does not contain fiber, can reduce the thickness of the walls of the ash layer and have a sufficient compression function; After the completion of the ash It feels smooth, uniform; 5. still under constant attack in the high-speed impact of the ball and the racquet does not change its color; 6 admirably defend balls; 7. easy to maintain. (B) floor system material performance: 1. Ball rebound performance; 2. Damping, seismic; 3. Noise effects; 4 unique elastic cushion, hard maple floors provide unique flexibility and withstand severe pressure, reducing the athlete on the floor due to bounce brought concussion opportunity. Construction Technology: material selection, the Northeast or Canadian maple. Maple tough high series first known each maple floor size of 50-70mm wide, 22mm thick, ranging in length from 300mm to 900mm, with special hooks nailed pine keel and plywood, its bottom with elastic cushion, flat on the pre-lined with moisture-proof tape flat on the ground. (C) the glass back wall system performance: (1) high strength hardware accessories: specially made its alloy strength than other aluminum accessories more than 20% higher, surface hardness 16hw. And beautiful appearance, fatigue resistance, easy installation, fine processing. Reasonable structure: the structure of the glass back wall system made of 12mm thick safety glass; All edges are polished; outer side of the seams between the board and the board to do a uniform support. Good safety performance: safety performance is the focus of most attention. Each component of the system after repeated testing, security and able to withstand a strong impact and overweight loads. If the door or side support plate is occasionally broken, the glass will crush into small blunt fragments, and will not cause harm to humans.
