Specifications

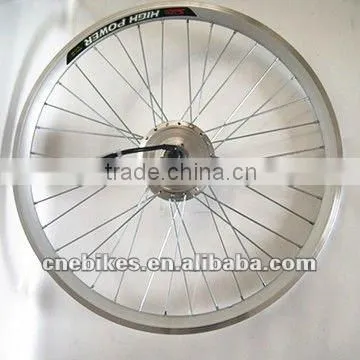

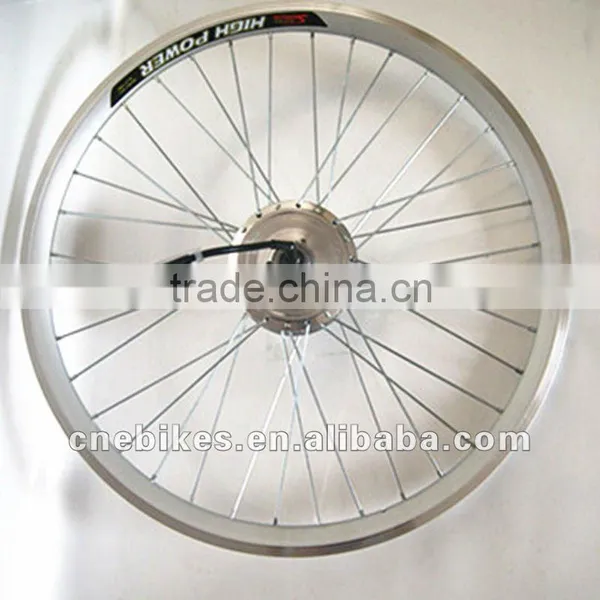

1.24/36v 180w-350w small electric wheel hub motor2.20"-28"700c wheel size
3.Rim:Al alloy
4.Warranty:3years
5.CE
Detailed specification:
electric wheel hub motor:
1. wheel size: 20"-28"700c
2. volt:24v-36v
3. power:180w-350w
4. CE approved

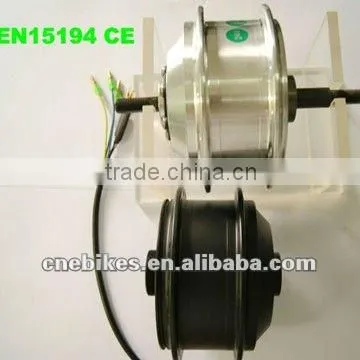

Front Motor
1.24V/36V -from 150W to 350W . front brushless geared hub motor. phase angle 120 degree. axle=100mm, diameter=128mm. weight=2.7kg. |
2.available to add disc brake. |
3.with waterproof connector. |
4.silver ,black colors for options. |
5.performance: max speed=25-32km/h.load=120kg. efficency=80% . |
6.with CE, EN15194 certifications. |
7. btw, we have same type motor but not available to add disc brake |

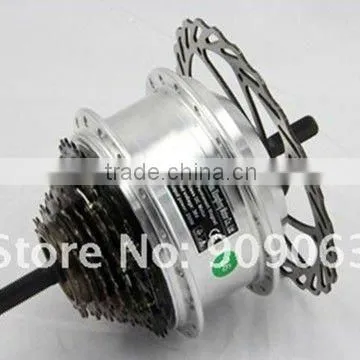

Rear Motor
1.1.24V/36V -from 150W to 250W . Rear brushless geared hub motor. phase angle 120 degree. axle=135mm, diameter=128mm. weight=2.7kg. |
2.available to add disc brake and 9 speed gears maxed. |
3.with waterproof connector. |
4.silver ,black colors for options. |
5.performance: max speed=25-32km/h.load=120kg. efficency=80% . |
6.with CE, EN15194 certifications. |
7.with rim or without rim are all available |
