8 fun 500w hub motor 48v brushless hub motor
♦ Advantage
>> This rear-drive motor, which is compatible with the disc brake, has a rated power of 250-750W, a reduction ratio of 1: 5 and a maximum torque of 80 N.m, providing ideal power for vehicles. Strong and efficient, this motor, working together with a cassette or freewheel speed change mechanism, greatly enhances riding comfort and is suitable for beach buggies and snow bikes. It can be black or sliver.
♦ Technical Parameters
SPECIFICATIONS
Core Data
| Position | Rear Motor |
| Construction | Geared Motor |
| Nominal Voltage | 36/48V |
| Rated Power | 500 W |
| RPM | 180-420 |
| Max Torque | 80 N.m |
| Efficiency | ≥ 80 % |
Mounting Parameters
| Brake | Disc Brake |
| Weight | 4.6 kg |
| Installation Widths | 170-195 mm |
| Max. Housing Diameter | 158 mm |
| Cabling | Shaft Center, Right |
| Spoke Specification | 12G |
Further Specifications
| Cadence (Pulses/Cycle) | 6/1 |
| Reduction Ratio | 1:5 |
| Magnet Poles | 20 |
| Noise | <55 dB |
| Hall Sensor | optional |
| Connector | Waterproof |
Tests & Certifications
| IP-Code | IP 65 |
| Certifications | ROHS / CE |
DIMENSIONS
| Dimension A | 96mm |
| Dimension B | 68mm |
| Dimension C | φ158mm |
| Dimension D | φ145mm |
| Dimension E | φ44mm |
| Dimension F | φ33mm |
| Dimension G | 2–M12 x 1.25–6g |
| Dimension H | 2.2-2.8mm |
| Dimension I | 26.5-36.5mm |
| Dimension J | 41mm |
| Dimension WR | 90.4mm |
| Dimension OLD | 170-195mm |

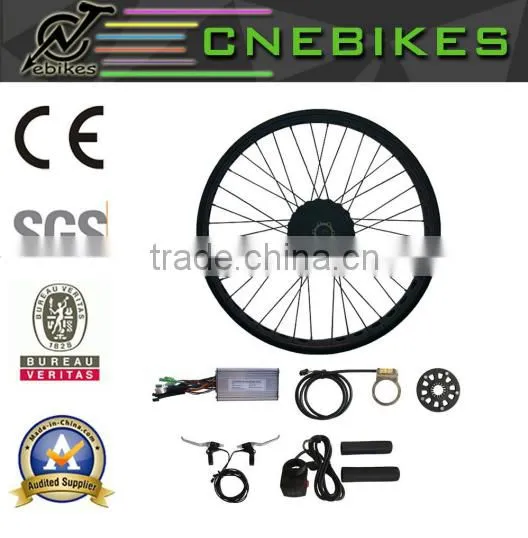

♦ Motor Kit Including
1. 8-Fun Motor
2. Controller
3. Twist throttle or thumb throttle
4. Brake(for both side power off)
5. 1:1 PAS system
6. Double-wall alloy rim
♦ Pics Of Motor Parts:
Geared Motor Controller
PAS System Brake
Double-Wall Rim Throttle
♦ Package
The Kit offers durability and performance in mind,packed as standard,with 7-floor export carton,main parts packed by EPE enviromentally friendly foam material,all parts are seperated in nylon bag.Strong package avoid damages from long-way shipping.
♦Contact Information
Skype ID: ctt891014 We-Chat: ctt158
♦ CE Certification:
