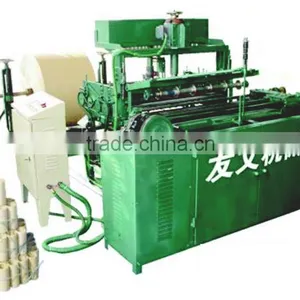

cs-9type tube making machine (full-auto)
1. DETAIL MESSAGE:
full-auto paper tube making machine for fireworks. it can roll (full-auto) glue and cut tube and drop out tube on one machine. It needn’t pump. The machine is used for producing parallel paper tube and then cut it into short tubes automatically. It consists of paper stand, gluing device (automatic cycle system with diaphragm pump), auto-water-adding system, paper cutting device, tube forming, tube-cutting and discharging device. The machine is equipped PLC and step motor with machine.
2. Technical parameters
Technical parameters CS-9 A type | |
Number of roll paper |
3-10 layer |
Tube ID |
25-76 mm |
tube thickness |
1-6 mm |
Applicable paper gram |
180-280gsm |
Max. Paper tube length |
1220mm |
Roll core mold fixed |
Three claws chuck |
Winding head |
2 rolls of belts |
Cutting tube mode |
Single circular knife cutting |
Glue way |
Single sides |
operation |
1 person |
Paper delivery speed |
14 sheets/min |
Speed control |
transducer |
Applicable glue |
white glue/Tapioca starch glue |
Input power |
6*1.1KW/380V/50HZ/3phases |
weight |
650 kg |
Main frame size |
2200×2500×1400mm |
CS-9 B type tube making machine (full-auto)
Technical parameters CS-9 B type | |
Number of roll paper |
3-10layer |
Tube ID |
16-55 mm |
tube thickness |
1-4 mm |
Applicable paper gram |
160-280gsm |
Max. Paper tube length |
620mm |
Roll core mold fixed |
Three claws chuck |
Winding head |
2 rolls of belts |
Cutting mode |
Single circular knife cutting |
Glue way |
Single sides |
operation |
1 person |
Paper delivery speed |
16 sheets/min |
Speed control |
transducer |
Applicable glue |
white glue/Tapioca starch glue |
Input power |
7*1.1KW/380V/50HZ/3phases |
weight |
700 kg |
Main frame size |
2200×2500×1400mm |
