Home > Lights & Lighting > Bulb & Lamp > Infrared Lamp > Fast Speed Reaction Halogen Quartz Tube Infrared Heater

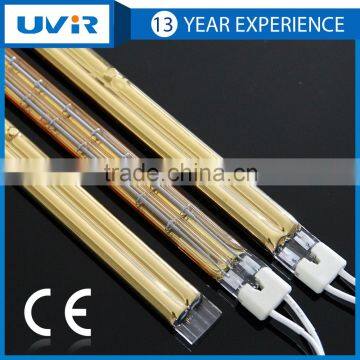

Fast Speed Reaction Halogen Quartz Tube Infrared Heater

Name: Fast Speed Reaction Halogen Quartz Tube Infrared Heater
Brand: UVIR
SKU: 131093285
Availability: InStock

Fast Speed Reaction Halogen Quartz Tube Infrared Heater thumbnail-1

Fast Speed Reaction Halogen Quartz Tube Infrared Heater thumbnail-2

Fast Speed Reaction Halogen Quartz Tube Infrared Heater photo-1

Fast Speed Reaction Halogen Quartz Tube Infrared Heater photo-2

US$ 200 - 200 MOQ: 20 Pieces

Key Specifications

Get Latest Price

Light Source:

Halogen Bulbs

Input Voltage(V):

110-550V

Lamp Power(W):

5400

Contact Supplier Request Quote Chat Now

Jiangmen UVIR Lamp Factory

Payment & Shipping

Payment Methods:

Port of Shipment:

Jiangmen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Light Source Halogen Bulbs

Input Voltage(V) 110-550V

Lamp Power(W) 5400

Color Temperature(CCT) Other

Working Lifetime(Hour) 5000

IP Rating Other

Certification CE

Emitting Color Red

Lamp Body Material Other, Quartz

Brand Name UVIR

Model Number TWIN TUBE INFRARED LAMP

Product Description

Fast speed reaction halogen quartz tube infrared heater

Twin Tube Short Wave Infrared Lamp Advantage:

Lamp materials: manufactured from foreign imported high-end quartz tube.
Longer serving life:the mid-temp and low-temp ones 5000 hours.
Hight efficiency:more than 85% heat efficiency of full power.
More effective reflective layer saves energy:gold or non-organic reflective layer have higher heating efficiency to concentrate the radiation energy to the heating object .
Clear heating means:Don't worry about surface corrosion and dropping off.
Quick controllable heat:the heating time is controllable as it is needed.
Clean and adorless:no risk of contamination over environment or target object to be heated.
Tailor made:wavelength,dimensions,filaments and others can be adjusted to ment your requirement.
Energy Saving:less energy consumption,smaller footprint and better heating results.

Technical Specification Of Twin Tube Short Wave Infrared Lamp:

power density	18 20 25 W/CM
Light source	Tungsten filament
Material	Quartz Tube
Lifetime	5000-20000 hrs
Input Voltage	AC 60V- 480
Maximum heat length	1500 2000 3500 mm
quartz tube format	8×18 11×23 15×33mm
Hight efficiency	more than 85% heat efficiency of full power
Filament Temp.	800-950 Degree Celsius
Reflecter	Clear
Certificates	CE
max.power	60kw/m2
response time	1-4mins
Clean and adorless	no risk of contamination over environment or target object to be heated
Extensive assortment	many types of voltage,wattage,length,base,cables,niversal burning position is available
Flexible	special lamp designing service on demand is available

Different Construction Types for you choose:

Certifications

Our factory has gained CE,ISO9001,RoHS,SGS certification.

Service &Application

Our Service:

Sample Service

1.Some samples are free of charge, buyer shoulder the fright cost. Contact us for details !

2.Within 7 days after you confirm order.

Customized Service

1.We will offer 24 hours reply your inquiry and information in person.

2.We offer OEM services, we can print your logo on your product as your requirements.

After-sale Service

Any quality issue, once confirmed, we will compensate our customer.

Packaging & Shipping

We are committed to provide the best packaging and integration of logistics services.

Delivery Date: After receive payment 1 week.

Packaging:

Each infrared lamp in a small white box.Then in a professional wooden box.
21kgs Wooden box can be load 35mm lamp 200pcs.
21kgs Wooden box can be load 50mm lamp 100pcs.
21kgs Wooden box can be load 1000mm lamp 50pcs.
21kgs Wooden box can be load 1000mm lamp 50pcs.
We usually send the infrared lamps to clients by DHL/Fedex/TNT/UPS. Freight collected is available.

Exhibition&Customer

Click the picture to know more infrared lamp products.

We provide one-stop factory production and services.

Founded in 2003,Jiangmen UVIR Lamp Factory is a leading manufacturer in the IR,technology and product sector , twin tube emitter are our pillar products,90% of our total products are sold America,Europe, the Middle East and South Asia for over10 years. You are welcome to contact us for the further information.

FAQ

1.Are you a factory or trading company?

We are a professional factory.

2.Where is your factory located?How can I visit there?

Our factory is located in JiangMen City,Guangdong Province,China,You can fly to GuangZhou BAIYUN airport directly,Warmly welcome all the clients at home and broad to visit us!

3.What's the material of your products?

The materail is quartz glass,Heating wire is gold reflector or carbon fiber ,details,Please ask us.

4.How can I get some samples?

We are honored to offer you samples.

5.How does your factory do regarding quality control?

"Quality is priority."UVIR people always attaches more importance to QC from the very begining to the very end.Our factory has gained CE,ISO9001,RoHS,SGS authentication.
