1080p camera surveillance video camera live stream
|

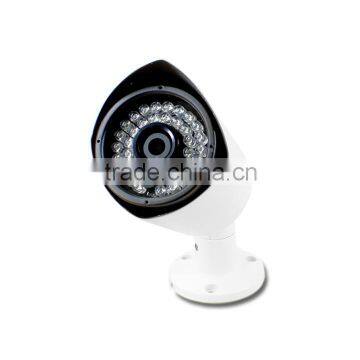

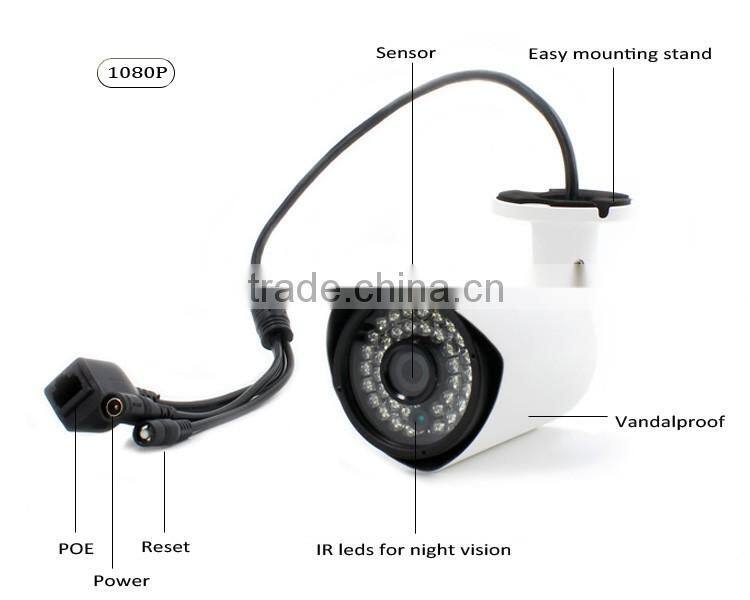

1080P PoE IR Bullet IP Camera Model no.: GZ-IPC-B6206-P |
|
| Pictures | |
|
Key features |
•Chipset GM8136 •1/3" 1080P progressive scan CMOS • H.264 High profile encoding
|
| Camera | Image Sensor | 1/3" 1080P CMOS |
| Effective Pixels | 1920 (H)x1080(V) | |
| Min. Illumination | Color: 0. 05LUX/F1.8, B/W: 0Lux (IR on) | |
| S/N Ratio | >50dB | |
| Backlight Compensation | BLC | |
| WDR | Digital WDR | |
| Noise Reduction | 3D DNR | |
| Gain Control | Auto/Manual | |
| Day/Night | Auto(ICR) / Color / B/W | |
| White Balance | Auto | |
| Electronic Shutter Speed | Auto/Manual 1/50~1/10000 | |
| IR distance | IR distance 30 Meters | |
| Lens | Focal Length | 6mm Lens |
| Max Aperture | F1.8 | |
| Focus control | Fixed | |
| Angle of View | 53°@6mm | |
| Video | Video Compression | H.264 High Profile / JPEG Snapshot |
| Resolution | Main Stream:1080P(1920*1080) Sub Stream: 352*288 |
|
| Video Bitrates | 1024Kbps ~ 6144Kbps | |
| Video Frame Rate | 25fps@1080P | |
| Audio | Compression | ADPCM |
| Interface | embedded mic in | |
| Network | Ethernet | RJ-45 (10/100Base-T) |
| Wi-Fi | Option | |
| Network Protocol |
IPv4, HTTP, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Cloud |
|
| Network Preview | Web browser view, including IE,Chrome,Firefox | |
| Smart Phone | Supports iPhone,iPad, Android phone,pad,Windows Mobile phone. | |
| Compatibility | Onvif V2.1 | |
| Max. User Access | 12 Users | |
| General | Power Supply | DC12V & PoE |
| Power Consumption | <8W | |
| Working Environment | -10℃~+55℃(14°F~131°F),10%~90% | |
| Ingress Protection | IP66 | |
| Dimensions | Φ65 x 188mm | |
| Weight | 440g |

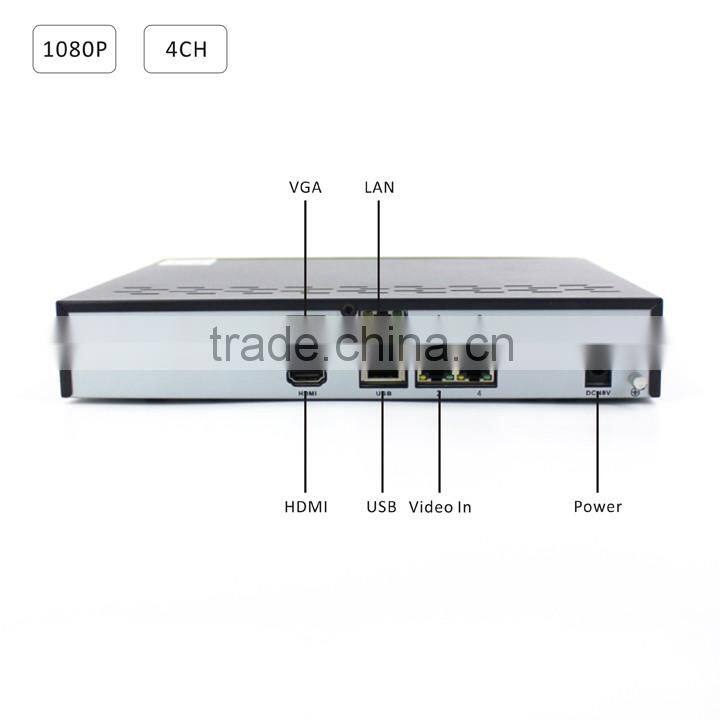

| 4CH POE NVR | Model no.: GZ-NVR-6004 | Main Chip: Hisilicon 3520D |
| Pictures | |
|
| Key features |
|
|
| System | GUI | 16-bit True Color |
| Operating System | Embedded Linux OS | |
| Password security | Multi-level users management, 1 Admin + 19 Users | |
| A/V Input | Video Input | IP Camera x4 POE |
| Audio Input | NO | |
| A/V Output | Decoding resolution | 1080P/720P |
| VGA output | 1024*768,1280*720,1280*800,1280*1024,1440*900,1920*1080P (1080P) | |
| HDMI output | 1024*768,1280*720,1280*800,1280*1024,1440*900,1920*1080P (1080P) | |
| Audio output | NO | |
| Playback resolution | 1080P/720P | |
| Synchronous playback | 4CH(PAL:100FPS playback NTSC:80FPS playback) | |
| HDD | SATA Devices | 1 x SATA HDD |
| Maximum capacity | 4TB | |
| External HDD | NO | |
| External Interface | USB Connector | 2 x USB2.0 |
| Serial Interface | NO | |
| 2 way audio (voice talk) | NO | |
| Alarm input/output | Optional | |
| Network Interface | RJ 45,10M/100 M Ethernet, 4 Network ports for IP camera, 1 Giga network port for LAN/WAN | |
| Network | Network protocol | TCP/IP, SMTP, HTTP, DHCP, PPPoE, NTP, DDNS,UPnP,FTP,RTSP,Onvif,P2P |
| Mobile Device | iPhone, iPad,Android Phone, Android Pad | |
| System Upgrade | Supports USB update | |
| Remote Software | StreamView APP, IE Browser,Google Chrome Browser,Firefox Browser | |
| General | Power Supply | Input 100~240V, 48V 2A |
| Consumption | <10W without HDD&PoE | |
| Working temperature | -10℃~+55℃(14°F~131°F) | |
| Working humidity | 10%~90% | |
| Dimension ( mm ) | 260(W) x 41(H) x 230(D) | |
| Weight ( w/o HDD/DVD±RW ) | 2.0 kg |
| BOM For 4CH 2MP NVR kit | ||||||
| NO. | Items | Specification | Quantity |
1. Economy kit |
2. Standard kit |
3.super kit |
| 1 | NVR | 2megapixel 4ch POE NVR | 1 | √ | √ | √ |
| 2 | Original color box of NVR | with foam | 1 | √ | √ | √ |
| 3 | Adapter of NVR | 12V-2A | 1 | √ | √ | √ |
| 4 | Dryer bags | 1 | √ | √ | √ | |
| 5 | Software CD | 3.5" | 1 | √ | √ | √ |
| 6 | Remote Control with battery | 1 | √ | √ | √ | |
| 7 | USB Mouse(Red light) | USB Mouse with red light | 1 | √ | √ | √ |
| 8 | E-sata | 1 | √ | √ | √ | |
| 9 | Ethernet Cable | 3.5ft / 1m | 1 | √ | √ | √ |
| 10 | Ethernet Cable | 20m | 4 | √ | √ | √ |
| 11 | HDMI cable | 6.5ft / 2m | 1 | √ | √ | |
| 12 | Hard Disk | 1 | √ | |||
| 13 |
2MP Bullet IP Camera (Model:IPC-B6206-P) |
2megapixel POE Bullet camera | 4 | √ | √ | √ |
| 14 | Original color box of Camera | 1 package with 4 cameras | 4 | √ | √ | √ |
| 15 | Outer box | 1 | √ | √ | √ | |
| 16 | Screw installation package | 4 | √ | √ | √ | |
1.Compatibility
IP Cameras Support onvif 2.1,seamless integrated with different brand NVR.
NVR can only support our Ip camera .
2.Warranty
2-years free repair Warranty. For the confirmed defective products , will send free replacement in the next shipment .
3.ODM Service
Strong RD team from HUAWEI with 11 years experience, provide satisfactory ODM service. You can have your OWN logo or start-up screen for free if quantity meet the MOQ. Same to Customized package .
4.APP remote control
Both Support mobile app named Streamview ,and pc software named Smart Client for remote control.
5.Surveillance Distance
A. 2.8 mm lens : Less than 10m
B. 3.6mm lens :10m—20m
C. 6mm lens : 30m—50 m
(We have 2.8—12 mm auto-Focus camera for long distance & special condition.
| Related products |
| More details of IP camera and NVR , please click below pictures |
|
|
|
| 1080P IP camera (GZ-IPC-B6206-P) |
1080p/2MP 4CH NVR GZ-NVR-6004) |
