Help CenterHalogen Infrared Ruby Heat Lamp
Related Products
Specifications
Energy saving Fast heatingLow investment cost Easy installation

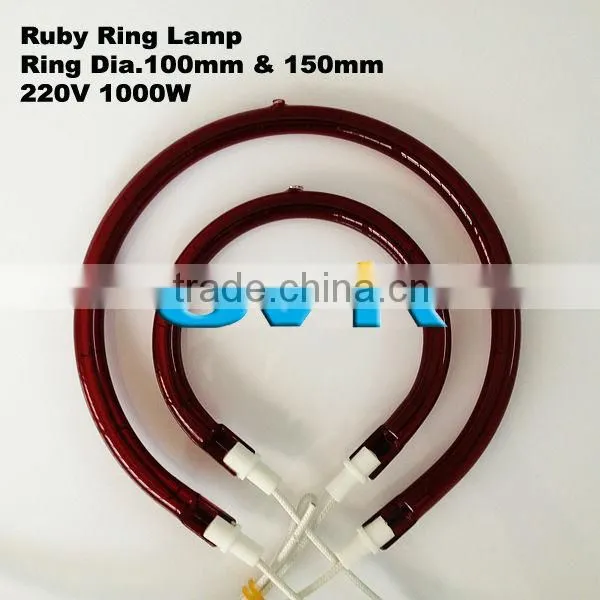

Halogen Infrared Ruby Heat Lamp

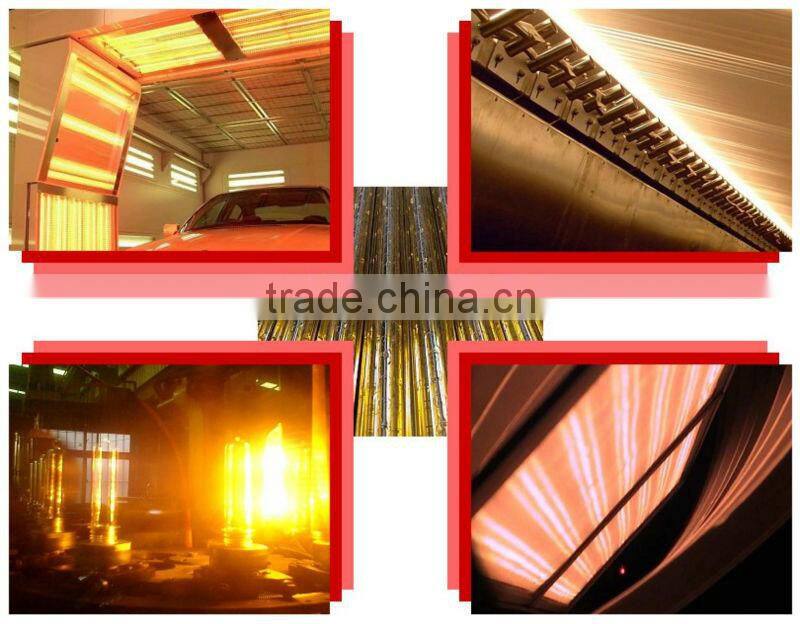

IR Application Area
n Paint drying
n Pre-heating of PET perform
n Silicon wafer manufacturing process in semiconductor
n Drying process in paper mill
n Plactics thermoforming
n Fusing printing ink
n And various kind of drying processes
IR Benefits and Features
Long life |
5000h on average |
High Speed |
within 1 second to switch on |
Hight efficiency |
more than 85% heat efficiency of full power |
High power density |
up to 200w/cm |
High controllability |
neither ballast nor special circuits are necessary for basic usage |
No air draughts |
because of radiation(like solar energy) |
Clean and adorless |
no risk of contamination over environment or target object to be heated |
Extensive assortment |
many types of voltage,wattage,length,base,cables,niversal burning position is available |
Flexible |
special lamp designing service on demand is available |
IR Emitter Technical Background
IR Emitter |
NIR Infra Short Wave Single Tube |
Short Wave Twin Tube |
Medium Wave Twin Tube |
Fast Response Medium Wave Twin Tube |
Power |
500-4000W |
<200w/cm |
18 20 25w/cm |
80w/cm |
Max. Heated Length |
Min.50 / Max.1000mm |
6400/2400w |
1500 2000 6500mm |
6400/2390mm |
Tube Cross Section |
8-14mm |
34x14 / 23x11mm |
18x8 23x11 34x14mm |
34x14 / 23x11mm |
Filament Temp.°C |
1100-2600 |
1850-2400 |
800-950 |
<1850 |
Peak Wavelength |
1-2um |
1.0-1.4um |
2.4-2.7um |
>1.4um |
Reflector |
Gold |
Gold |
Gold |
Gold |
Max. Power |
--- |
200kw/m2 |
60kw/m2 |
150kw/m2 |
Response Time |
1s |
1s |
1-4min |
1-2s |

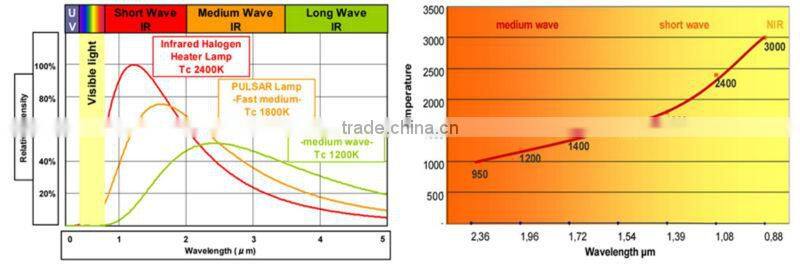

IR Emitter Spectrum

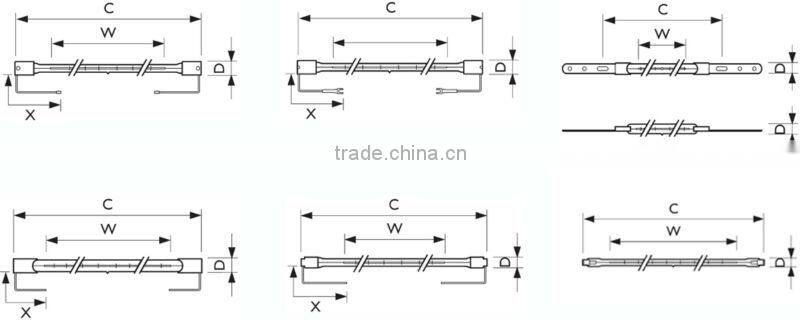

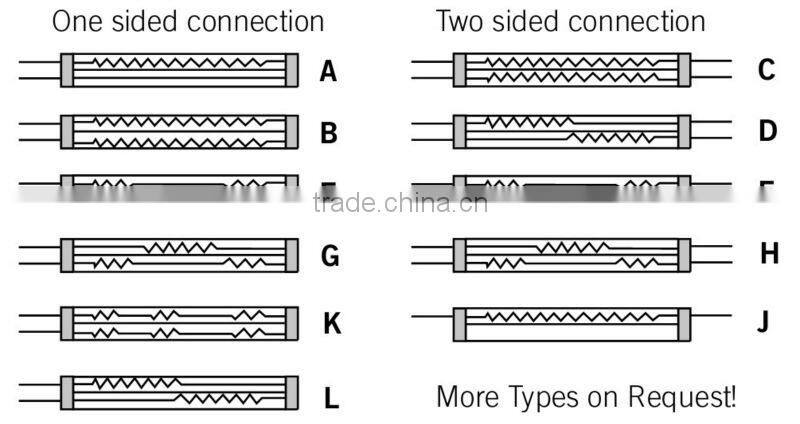

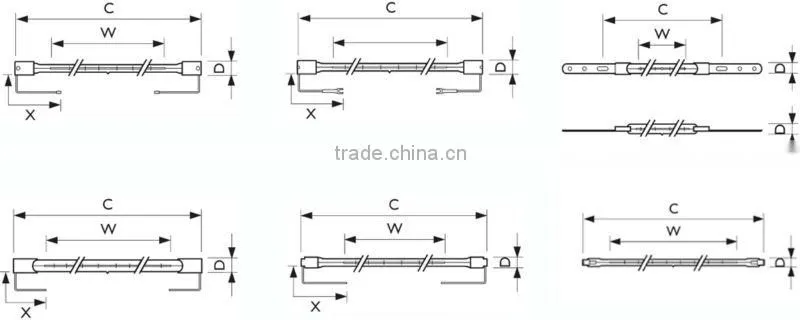

Twin Emitter Design
Single Emitter Design

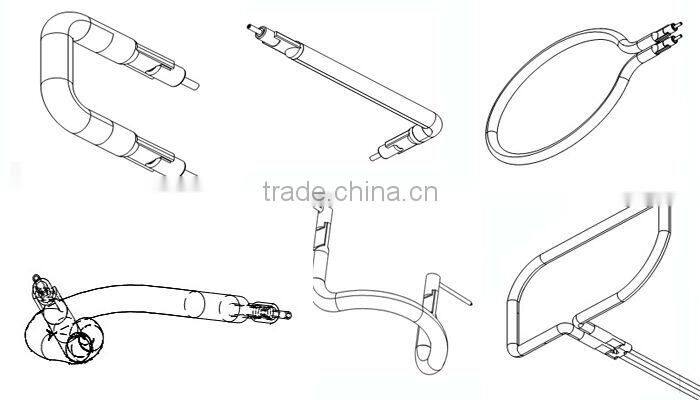

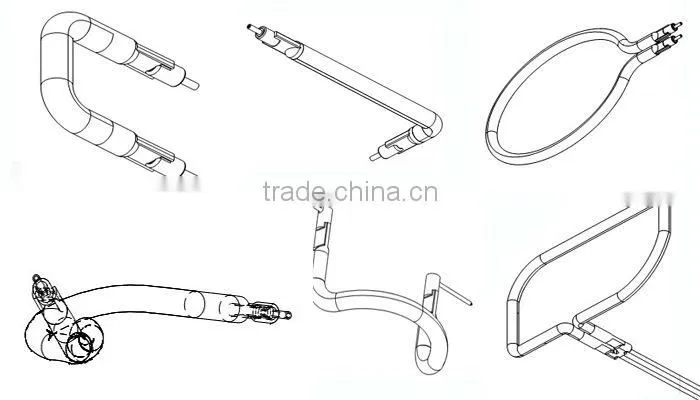

Special Size Emitter Design
Heraeus Short Wave Twin Tube IR Emitter
| 80002677 | 80046737 | 09751713 | 09751765 | 45130750 |
| 80009069 | 80046754 | 09751751 | 09751760 | 45130753 |
| 80009073 | 80046755 | 09751741 | 09751731 | 45132045 |
| 80010767 | 80009069 | 09751740 | 09751720 | 45132827 |
| 80042199 | 80009073 | 09751761 | Heraeus | Infrared |
