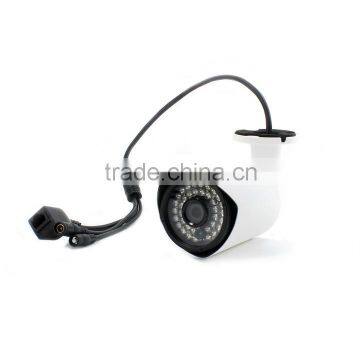

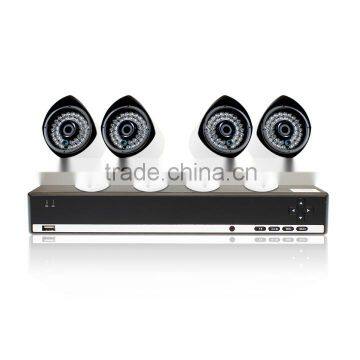

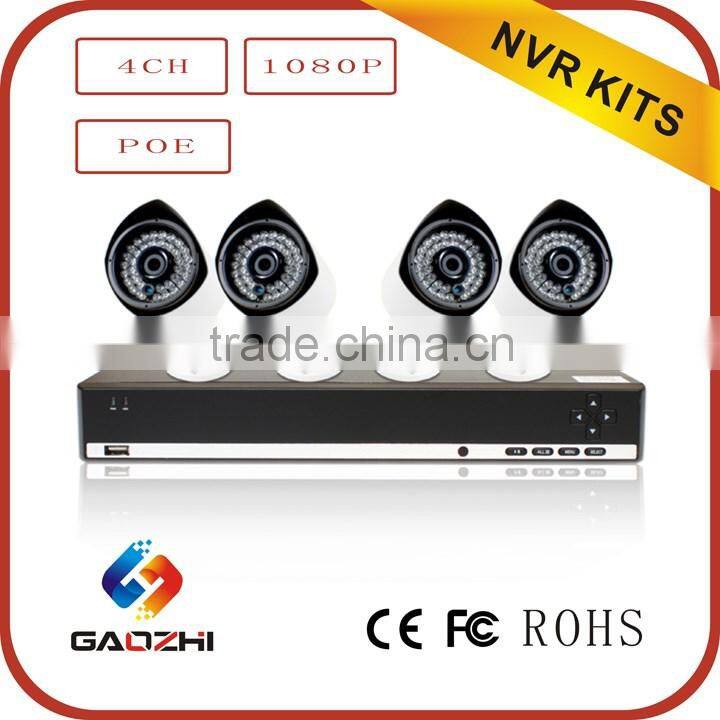

HD 2MP/1080P 4 Camera P2P POE Surveillance System
US$ 80 - 300
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Gaozhi
Model Number:
GZ-NVR3204-EP-KITS-1
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
2016 NEW 4ch 1080P POE Bedroom Nvr Camera SystemUS$ 200 - 300MOQ: 1 Piece -
Video Security Surveillance H.264 Network Digital Video Recorder System,surveillance SystemUS$ 200 - 300MOQ: 1 Piece
-
Remote Security Motion Detection Video Conferencing System Nvr ip Security Camera SystemUS$ 80 - 300MOQ: 1 Piece
-
H.264 High Profile 4ch Nvr Surveillance Cameras SystemsUS$ 200 - 300MOQ: 1 Piece
-
Low Cost 4pcs 1080P Video Home hd Security Camera System,security Camera SystemUS$ 200 - 300MOQ: 1 Piece
Place of Origin
Guangdong, China
Brand Name
Gaozhi
Model Number
GZ-NVR3204-EP-KITS-1
HD 2MP/1080P 4 Camera P2P POE surveillance system
HD 2MP/1080P 4 Camera P2P POE surveillance system
Product Description
High quality 1080P 4CH.P2P Built-in DIY POE NVR
* 8CH 1080P/720P IP camera input;
* 1/4CH playback;
* embeded 8 PoE Network ports;
* Supports dual stream;
* Supports VGA (Maximum HD 1080p) , HDMI (Maximum HD 1080p) output;
* 2 USB2.0 ports, 1SATA 3.0 HDD port(up to 4000G);
* Supports smart phone real time remotely monitoring, such as iPhone,Android;
* Provide IE Activex,CMS,StreamView APP
* Support P2P
| Specification: | |||
| System | GUI | 32-bit True Color | |
| Operating System | Embedded Linux OS | ||
| Password security | Multi-level users management, 1 Admin + 19 Users | ||
| A/V Input | Video Input | A: 960H Analog camera x 8 B: 1080P IP Camera x 8 C: 960H Analog camera x 4 + 1080P IP Camera x4; |
|
| Audio Input | 4 ch RCA | ||
| A/V Output | VGA output | 1024*768,1280*720,1280*800,1280*1024,1440*900,1920*1080(1080P) | |
| HDMI output | 1024*768,1280*720,1280*800,1280*1024,1440*900,1920*1080(1080P) | ||
| Spot output | NO | ||
| Loop output | NO | ||
| Audio output | 1CH RCA (Linear, 1kΩ) | ||
| A/V encoding parameters | Video compression | H.264 High Profile | |
| Video standard | PAL/NTSC | ||
| Stream type | Video& Audio/Video | ||
| Video frame rate | Pal:1-25FPS, NTSC:1-30FPS | ||
| Maximum frame rate | A: 8CH 960H :120FPS B: 8CH IP: 240FPS C: 4CH 960H+4CH IP :120FPS+120FPS |
||
| Video bit rate | 384kbps-6144kbps | ||
| Dual Stream Resolution (Pixel) | Main Stream (Recording) : Analog:960H: 960x576(480) ; IPCam:1080P,720P ; | ||
| Sub Stream (Network):960H/720P:1/4 Main Stream;1080P:1/16 Main Stream | |||
| Record mode | Manual,Schedule,Motion | ||
| Video search | Date/time, Event | ||
| Display | 1/4/8/9 windows optional | ||
| Audio compression | 8K*16bit ADPCM | ||
| Audio bit rate | 32Kbps | ||
| Recording & playback performance | A: 8CH 960H 120FPS recording ,1CH 15FPS Playback B: 8CH 2MP IP 240FPS recording, 4CH 2MP 100FPS playback C: 4CH 960H 120FPS+4CH 2MP IP 120FPS , 4CH 120FPS analog or 1CH 30FPS IP playback |
||
| HDD | SATA Devices | 1 x SATA HDD | |
| Maximum capacity | 4TB | ||
| External HDD | 1 x Esata, e-sata as storange function. | ||
| External Interface | USB Connector | 2 x USB2.0 | |
| Serial Interface | 1RS-485 serial port | ||
| 2 way audio (voice talk) | NO | ||
| Alarm input/output | Optional | ||
| Network Interface | RJ 45,10M/100 M Ethernet | ||
| Network | Network protocol | TCP/IP, SMTP, HTTP, DHCP, PPPoE, NTP, DDNS,UPnP,FTP,RTSP,ONVif,P2P | |
| Mobile Device | iPhone, iPad,Android Phone, Android Pad | ||
| System Upgrade | Supports USB update | ||
| Remote Software | StreamView APP, IE Browser,Google Chrome Browser,Firefox Browser | ||
| General | Power Supply | Input 100~240V, Output 12V 2A | |
| Consumption | <6W without HDD | ||
| Working temperature | -10℃~+55℃(14°F~131°F) | ||
| Working humidity | 10%~90% | ||
| Dimension ( mm ) | 260(W) x 41(H) x 230(D) | ||
| Weight ( w/o HDD/DVD±RW ) | 1.6kg | ||
User interface(Very easy to use)
Company Information
Certifications
Packaging & Shipping
FAQ
1. Compatibility
IP Cameras Support onvif 2.1,seamless integrated with different brand NVR.
NVR can only support our Ip camera .
2.Warranty
2-years free repair Warranty. For the confirmed defective products , will send free replacement in the next shipment .
3.ODM Service
Strong RD team from HUAWEI with 11 years experience, provide satisfactory ODM service. You can have your OWN logo or start-up screen for free if quantity meet the MOQ. Same to Customized package .
4.APP remote control
Both Support mobile app named Streamview ,and pc software named Smart Client for remote control.
