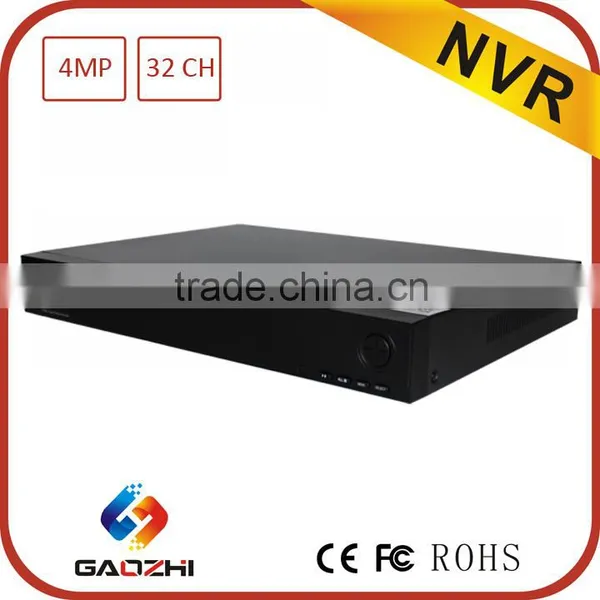

hot sale 4MP/3MP/1080P/720P H264 P2P dvr rohs fc ce conform
| Different DVR/HVR/NVR Optional |
| More DVR/HVR optional, click here to view more |
| More NVR optional , click here to view more |
|
|
|
| 1080p 4CH AHD DVR | 1080P 8CH AHD DVR | 4MP 4CH POE NVR |
|
|
|
| 4MP 8CH POE NVR | 4MP 16CH POE NVR | 4MP 32CH NVR |
* Main Chip: Hisilicon 3535
* 32CH 4MP/3MP/1080P/720P IP camera input;
* 1/4CH playback;
* Supports dual stream;
* Supports VGA (Maximum HD 1080p) , HDMI (Maximum HD 1080p) output;
* Supports smart phone real time remotely monitoring, such as iPhone,Android;
* Provide IE Activex,CMS,StreamView APP
* Support P2P
| Specification |
| Model | GZ-NVR-6300B |
| Main Chip | Hisilicon 3535 |
| system | |
| GUI | 16-bit True Color |
| Operating System | Embedded Linux OS |
| Password security | Multi-level users management, 1 Admin + 19 Users |
| A/V Input | |
| Video Input | 32 channel IPC |
| Audio Input | NO |
| A/V Output | |
| Decoding resolution | 4MP/3MP/1080P/720P |
| VGA output | 1024*768,1280*720,1280*800,1280*1024,1440*900,1920*1080P (1080P) |
| HDMI output | 1024*768,1280*720,1280*800,1280*1024,1440*900,1920*1080P (1080P) |
| Audio output | 1CH RCA (Linear, 1kΩ) |
| Playback resolution | 4MP/3MP/1080P/720P |
| Synchronous playback | 4CH |
| HDD | |
| SATA Devices | 4 x SATA HDD |
| Maximum capacity | 16TB |

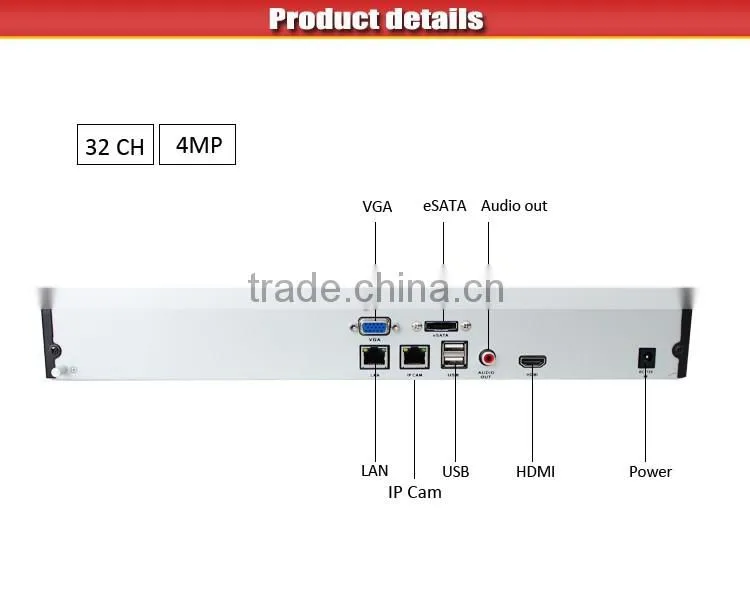

| External HDD | 1 x Esata, e-sata as backup function. |
| External Interface | |
| USB Connector | 3 x USB2.0 |
| Serial Interface | RS485 |
| 2 way audio (voice talk) | Yes |
| Alarm input/output | 8 in / 2 out |
| Network Interface | 2 Giga network port, 1 for IPC & 1 for WAN |
| Network | |
| Network protocol | TCP/IP, SMTP, HTTP, DHCP, PPPoE, NTP, DDNS,UPnP,FTP,RTSP,Onvif,P2P |
| Mobile Device | iPhone, iPad,Android Phone, Android Pad |
| System Upgrade | Supports USB update |
| Remote Software | StreamView APP, IE Browser,Google Chrome Browser,Firefox Browser |
| General | |
| Power Supply | Input 100~240V, 12V5A |
| Consumption | <10W without HDD&PoE |
| Working temperature | -10℃~+55℃(14°F~131°F) |
| Working humidity | 10%~90% |
| Dimension ( mm ) | 405(W) x 55(H) x 320(D) |
| Weight ( w/o HDD/DVD±RW ) | 4.5KG |
1. Compatibility
IP Cameras Support onvif 2.1,seamless integrated with different brand NVR.
NVR can only support our Ip camera .
2.Warranty
2years free repair Warranty. For the confirmed defective products , will send free replacement in the
next shipment .
3.ODM Service
Strong RD team from HUAWEI with 11 years experience, provide satisfactory ODM service. You can have your OWN logo or start-up screen for free if quantity meet the MOQ. Same to Customized package .
4.APP remote control
Both Support mobile app named Streamview ,and pc software named Smart Client for remote control.
5.Surveillance Distance
A. 2.8 mm lens : Less than 10m
B. 3.6mm lens :10m—20m
C. 6mm lens : 30m—50 m
(We have 2.8—12 mm auto-Focus camera for long distance & special condition. )
